Multiguard Heavy Duty Retractable Security Gates NZ

Heavy-Duty Steel Security for Wider Residential Openings

Retractable Security Gate Usage Comparison Guide NZ

Product Saftidor Aluglide Multiguard
Material Steel Aluminium Steel
Maximum Width 1600mm 3000mm 5020mm
Best For Standard Residential Doors Garages & Wider Entrances Large Garages & Wide Openings

About the Multiguard Retractable Security Gates

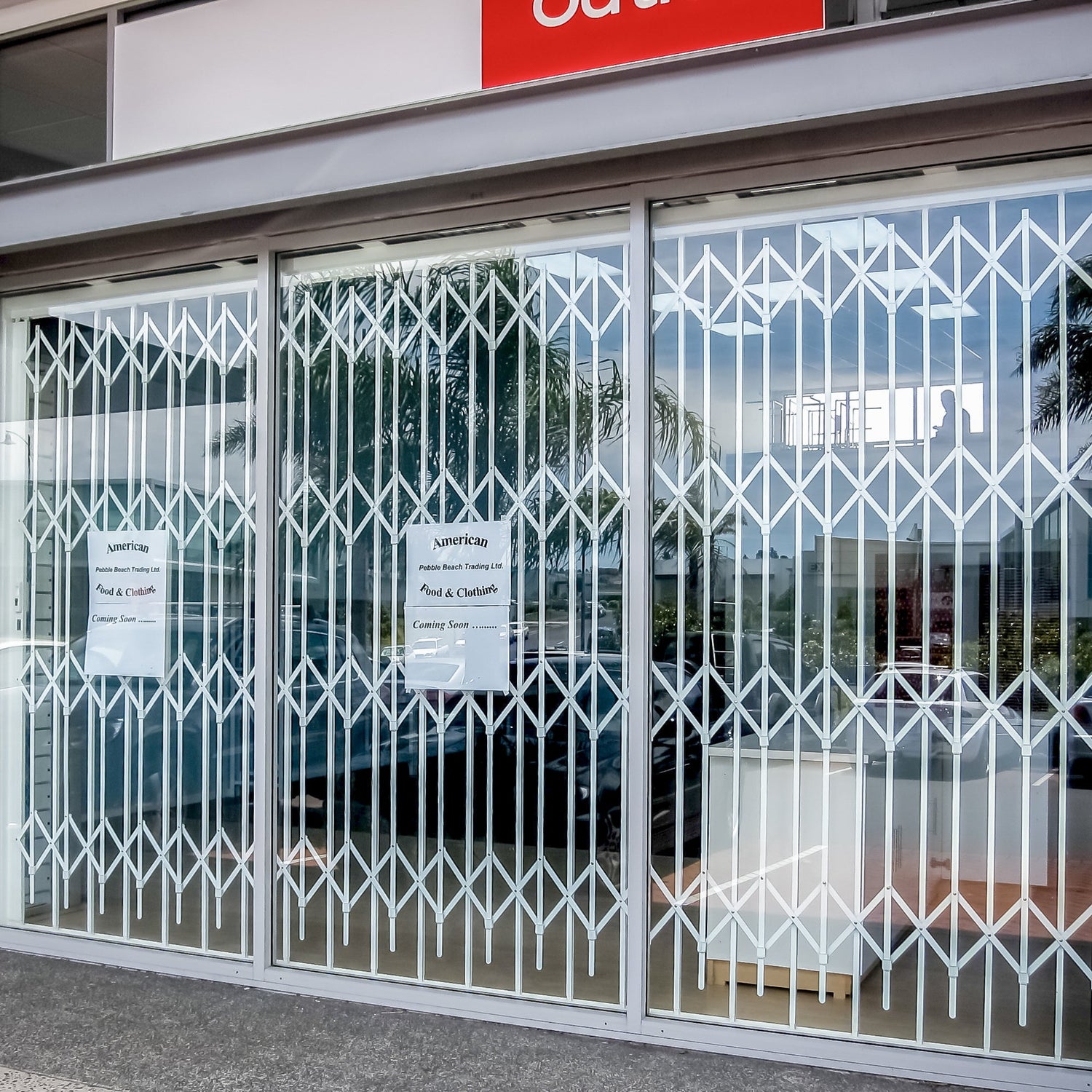

Multiguard retractable security gates are heavy-duty steel folding security gates designed for wider residential openings.
Their powder-coated mild steel construction provides a strong physical barrier while still allowing visibility and airflow through the expandable grille design.
Available in sizes up to 5020mm wide, Multiguard gates fold neatly to one side when open and are well suited to garages, workshops, storage areas and wider residential entrances where additional strength is needed. Ideal for

  • Garages
  • Workshops
  • Storage rooms
  • Utility areas
  • Wider doorways
  • Side entrances
  • Lifestyle properties
  • Home businesses
  • Apartments and townhouses*
  • Rental properties*

*Subject to owner or body corporate approval where required.

Installation Guide

Multiguard Retractable Security Gate Installation Guide

The Multiguard Steel Retractable Security Gate is a heavy-duty retractable gate designed for wider residential openings such as garages, workshops, storage areas and entrances.

Installation is relatively straightforward, but correct positioning and alignment are important because the gate runs between a top and bottom track.

1. Before You Start

Check that:

  • The opening height is within 2080–2100mm, viewed from inside.
  • Your opening is suitable for sill fixing
    Use Sill fix for Multiguard Retractable Security Gate
  • You have selected the Left or Right lock side, viewed from inside
    Choose left or right lock side for Multiguard Retractable Security Gate

  • Recommended Fixings

    Fixings are not supplied because the correct screws depend on what material you are fixing the gate into. As a general guide:

    • Gate / grille fixing: Hex-drive screws are recommended.
    • Top track: Wood screws are recommended.
    • Bottom track: Wood screws can also be used. If installing it into concrete, use suitable M5 wall plugs with the screws.



2. Install the Top Track

Start with the top track.
Position it correctly above the opening and secure it firmly.
The Multiguard is supported by the top track, so it must be fixed securely and aligned correctly.

Install top track for Multiguard Retractable Security Gate Top track for Multiguard Retractable Security Gate

3. Install the Bottom Track

Slide the T bottom track into position beneath the gate.

The gate runs along this track when opening and closing.

Make sure the bottom track lines up correctly with the top track before securing it.

Bottom track for Multiguard Retractable Security Gate Bottom track for Multiguard Retractable Security Gate

4. Secure the Fixing Post

Secure the fixing post (back section) of the gate to the side of the opening using the fixing holes provided.

Back fixing post for Multiguard Retractable Security Gate  Fixing Post for Multiguard Retractable Security Gate



5. Check the Alignment

Make sure the gate is plumb between the top and bottom tracks. A laser level can make this easier. You can also measure from fixed points on both sides of the opening to check that the tracks and gate are correctly aligned. Good alignment helps the gate open and close smoothly.

Checking the gate panel is plumb for Multiguard Retractable Security Gate

6. Install the Lock Post

Extend the gate across the opening to determine the correct position for the lock post.

Position the lock post so the gate closes neatly into it, then secure it to the opposite side of the opening.

Installing lock post for Multiguard Retractable Security Gates Installing lock post for Multiguard Retractable Security Gates

7. Check the Gate Operation

Open and close the gate several times. Check that:

  • The gate moves smoothly
  • The gate stays correctly within the tracks
  • The top and bottom tracks remain aligned
  • The gate closes correctly against the lock post

Test the Slam Lock:

  • Close the gate firmly into the lock post.
  • The standard Multiguard slam lock automatically locks when the gate is pushed closed, so a key is not required to lock it.
  • Use the key to unlock the gate and check that the lock operates correctly from both sides.


Simple Installation Overview

  1. Install the top track
  2. Position the gate
  3. Install the bottom track
  4. Secure the back section
  5. Check the gate is plumb
  6. Install the lock post
  7. Check smooth operation
  8. Test the slam lock

Need Help?

If you are unsure about your measurements, lock direction or whether Multiguard is suitable for your opening, please contact DIY Xpanda before installation.

Correct measuring and alignment will make installation easier and help the gate operate smoothly for everyday use.

Check out the installation video here.
