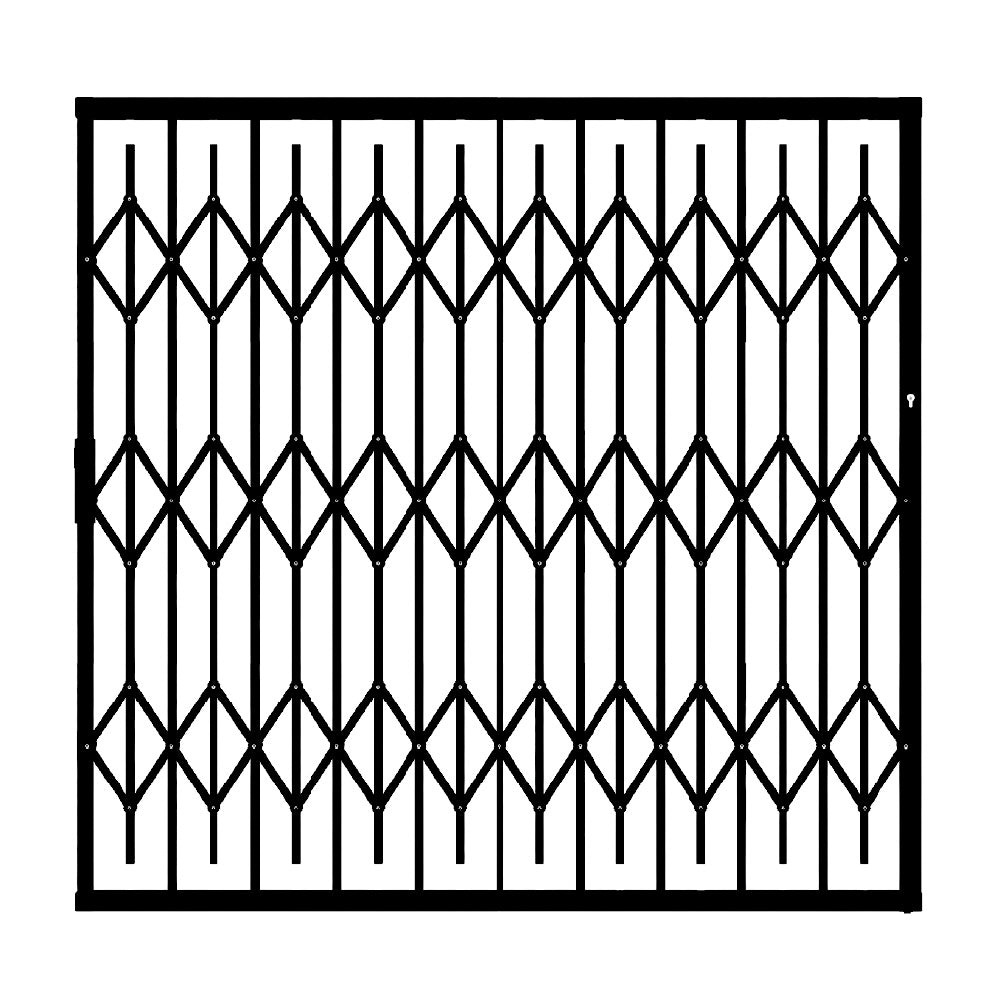

Multiguard Retractable Security Gate 2880mm Wide x 2100mm High (C)

The Multiguard Steel Retractable Security Gate is a heavy-duty security gate designed to help protect wider residential openings.

Made from powder-coated mild steel, it creates a strong physical barrier while allowing visibility and airflow through the expandable grille design.

Unlike a fixed swing gate, Multiguard slides neatly to one side when open, helping keep garages, workshops and other access points clear for everyday use.

The gate is supplied at 2100mm high (viewed from inside) and can be shortened to 2080mm high.

• Width: 440mm-2880mm
• Height: 2080-2100mm (viewed from inside)
• Weight: 62kg
• Material: Steel
• Single Sash End Locking (left or right)

• Heavy-Duty Security
  Built from powder-coated mild steel, Multiguard creates a strong physical barrier that helps deter unauthorised access. Designed for wider residential openings where additional strength is needed.
• Retractable & Easy to Use
  The gate folds neatly to one side when not in use, helping maintain access, visibility and airflow. Top and bottom tracks provide smooth opening and closing for everyday use.
• Suitable for Residential Use
  The durable powder-coated finish helps resist rust and everyday wear while requiring minimal maintenance. Suitab

• Garages
• Workshops
• Storage rooms
• Utility areas
• Side entrances
• Wider residential doorways
• Lifestyle properties
• Home businesses
• Holiday homes and baches
• Rental properties (subject to owner approval)
• Apartments and townhouses (subject to body corporate approval where applicable)

For rental properties, apartments, Kāinga Ora homes or body corporate properties, obtain the required approval before installing or modifying entry points.

Multiguard Retractable Security Gate Components

Click here to watch the instruction video on how to install the Multiguard security gate.

The Multiguard Steel Retractable Security Gate is a heavy-duty retractable gate designed for wider residential openings such as garages, workshops, storage areas and entrances.

Installation is relatively straightforward, but correct positioning and alignment are important because the gate runs between a top and bottom track.

1. Before You Start

Check that:

• The opening height is within 2080–2100mm, viewed from inside.
• Your opening is suitable for sill fixing


• You have selected the Left or Right lock side, viewed from inside



• Recommended Fixings

  Fixings are not supplied because the correct screws depend on what material you are fixing the gate into. As a general guide:

  • Gate / grille fixing: Hex-drive screws are recommended.

  • Top track: Wood screws are recommended.
  • Bottom track: Wood screws can also be used. If installing it into concrete, use suitable M5 wall plugs with the screws.

2. Install the Top Track

Start with the top track.
Position it correctly above the opening and secure it firmly.
The Multiguard is supported by the top track, so it must be fixed securely and aligned correctly.

3. Install the Bottom Track

Slide the T bottom track into position beneath the gate.

The gate runs along this track when opening and closing.

Make sure the bottom track lines up correctly with the top track before securing it.

4. Secure the Fixing Post

Secure the fixing post (back section) of the gate to the side of the opening using the fixing holes provided.



5. Check the Alignment

Make sure the gate is plumb between the top and bottom tracks. A laser level can make this easier. You can also measure from fixed points on both sides of the opening to check that the tracks and gate are correctly aligned. Good alignment helps the gate open and close smoothly.

6. Install the Lock Post

Extend the gate across the opening to determine the correct position for the lock post.

Position the lock post so the gate closes neatly into it, then secure it to the opposite side of the opening.

7. Check the Gate Operation

Open and close the gate several times. Check that:

• The gate moves smoothly
• The gate stays correctly within the tracks
• The top and bottom tracks remain aligned
• The gate closes correctly against the lock post

Test the Slam Lock:

• Close the gate firmly into the lock post.
• The standard Multiguard slam lock automatically locks when the gate is pushed closed, so a key is not required to lock it.
• Use the key to unlock the gate and check that the lock operates correctly from both sides.

Simple Installation Overview

1. Install the top track
2. Position the gate
3. Install the bottom track
4. Secure the back section
5. Check the gate is plumb
6. Install the lock post
7. Check smooth operation
8. Test the slam lock

Need Help?

If you are unsure about your measurements, lock direction or whether Multiguard is suitable for your opening, please contact DIY Xpanda before installation.

Correct measuring and alignment will make installation easier and help the gate operate smoothly for everyday use.

Check out the installation video here.
