Overview
Xpanda’s DIY Expandable Window Bars combine the proven strength of welded steel with the flexibility of an extendable design. For homes, they deliver high-security protection against common break-in methods. For commercial sites, they offer a medium-security solution — more resistant than lightweight grilles, but not intended to replace permanently fabricated or compliance-certified bars.
For larger commercial windows or higher-risk sites, Xpanda recommends installing custom welded security bars, purpose-built for maximum strength and full-span protection.
Trusted by property managers, trades, and security-conscious homeowners, these bars offer a balance of strength, deterrence, and easy installation — making them an essential upgrade for vulnerable windows.
Top Features
- Adjustable width: Up to 1500mm
- Height: 2150mm (customisable if required down to 1950mm — please contact us)
- Material: Powder-coated aluminium (rust-resistant finish)
- Compact stacked width for space-saving storage
Key Strengths
- Secure & Versatile:
Provides strong resistance to burglary and forced entry attempts while maintaining airflow and visibility. Suitable for both residential and light commercial entrances. - Retractable & Smooth Operation:
Folds neatly away when not in use. Top-mounted nylon rollers and a low-profile bottom track allow for effortless daily opening and closing. - Weather-Resistant Aluminium:
Powder-coated finish ensures long-lasting protection against rust, making it ideal for New Zealand’s coastal and humid environments. - Lightweight Convenience:
Aluminium construction makes the Aluglide easier to operate than heavy steel gates, while still delivering dependable security.
Applications

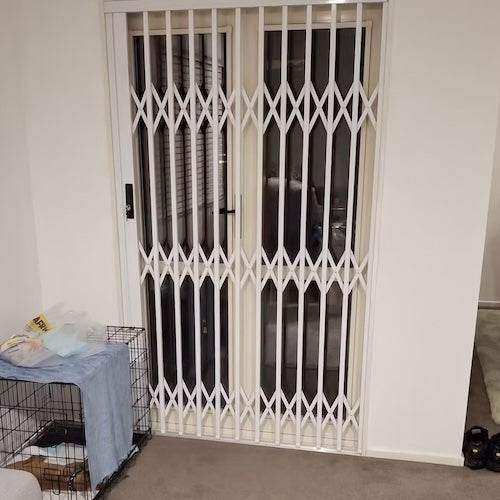

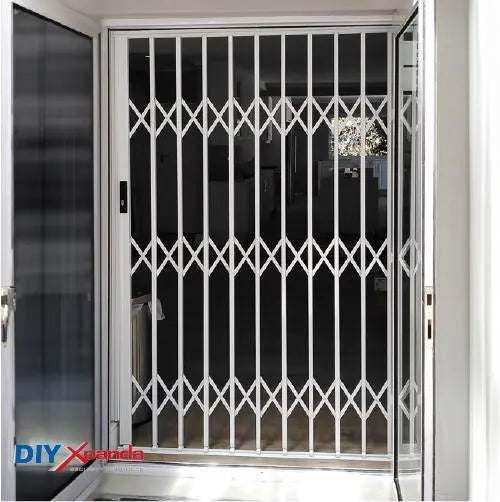

- House entrances and holiday homes
- Offices and reception areas where high-security is not needed.
What’s Included

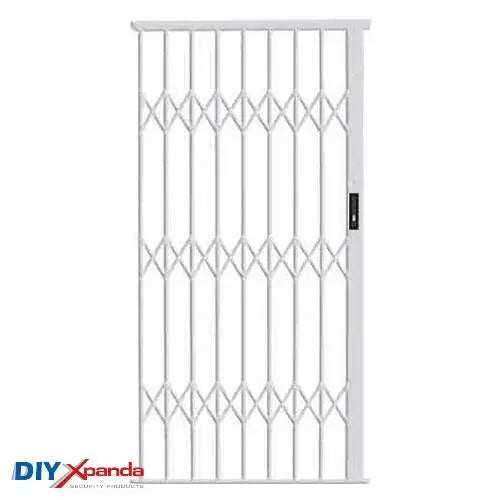

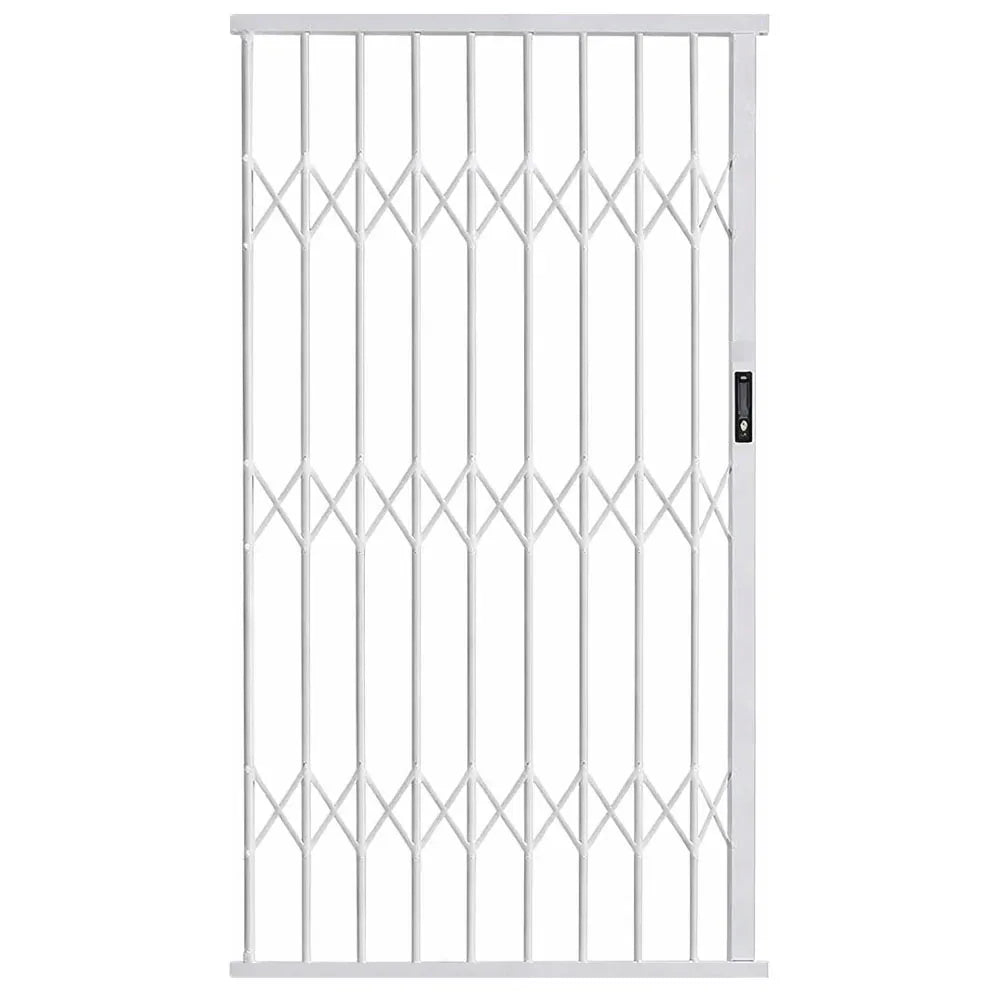

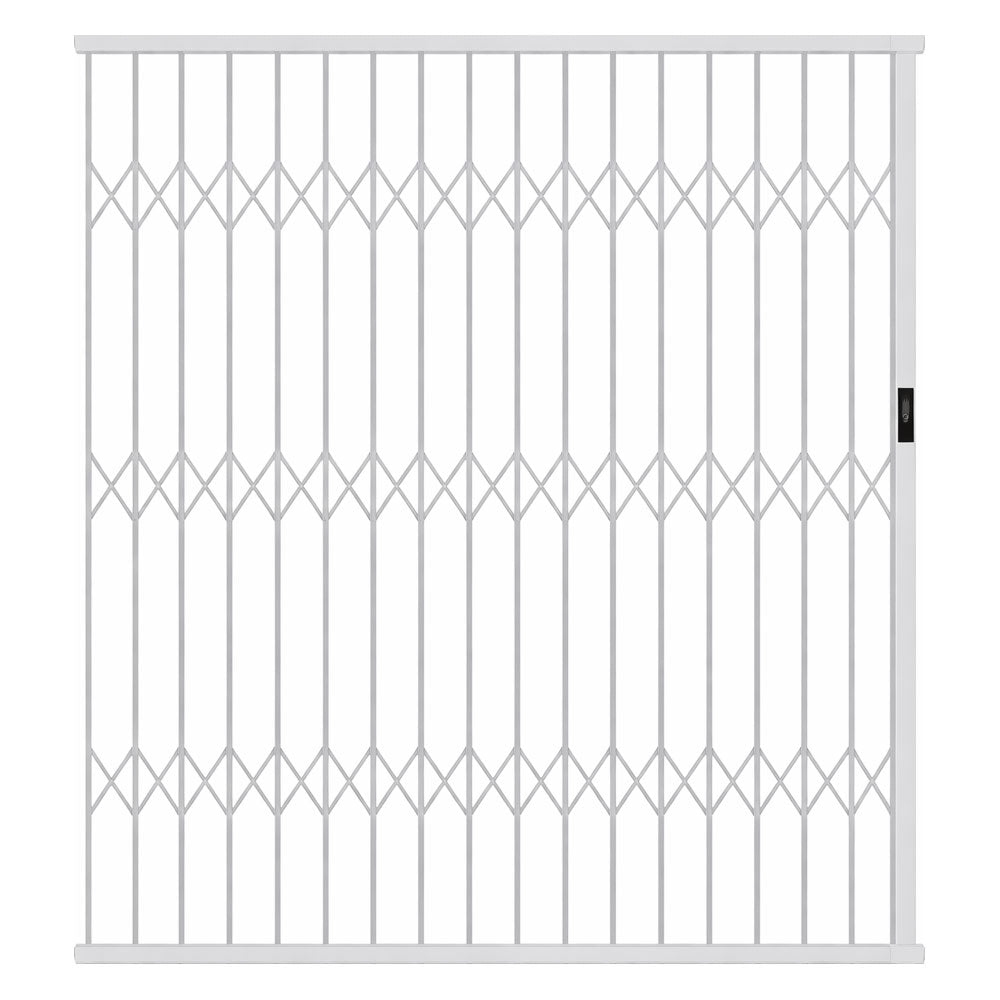

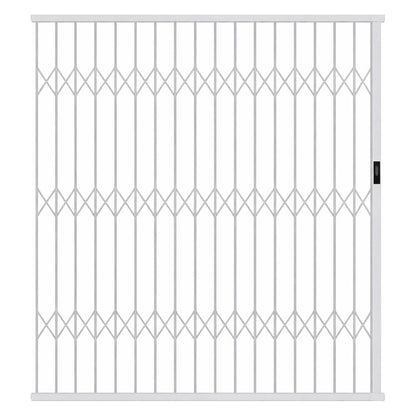

- Aluglide retractable security gate (white, powder-coated aluminium)

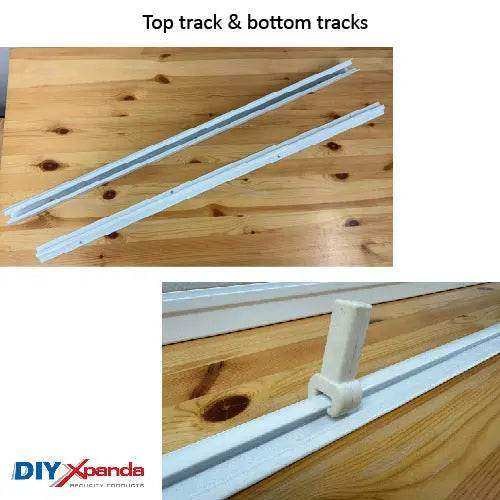

- Anti-trip bottom track
- Top nylon rollers
- Slamlock (secure locking mechanism)
- Downloadable PDF Detailed Sheet and installation video
Installation Guide
Step 1: Gather The Tools You'll Need
- Measuring tape📏
- Pencil or marker✏️
- Spirit level📐
- Drill🪛

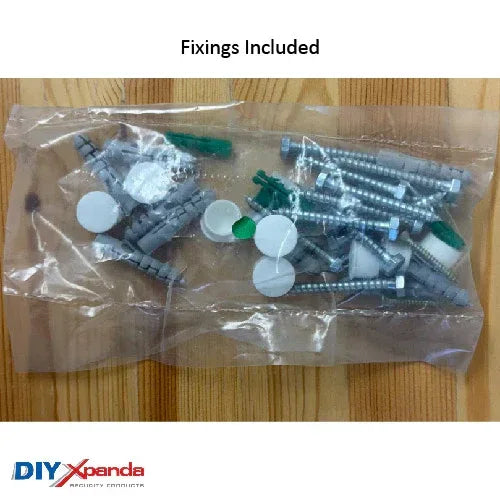

- Fixings: Screws and wall plugs🔩 (included)
- Spanner or wrench🔧
- Screwdriver🪛
- Hammer🔨
- Protective gloves🧤 (optional)
Step 2: Measure the Installation Area
Begin by measuring the width and height of the doorway or area where the gate will be installed. Ensure there is enough clearance on both sides for the gate to fully retract. Mark the position on the wall where the top track will be installed.
Step 3: Position the Top Track
Hold the top track at your marked position. Use a spirit level to ensure it is perfectly straight. Once aligned, mark the screw holes on the wall for drilling.
Step 4: Drill the Holes
Using your drill, create holes at the marked points on the wall. If necessary, insert wall plugs to ensure a strong hold.
Step 5: Attach the Top Track
Secure the top track to the wall by screwing it into place. Ensure it is straight and properly aligned.
Step 6: Mount the Side Guides
- Place the gate in the open position, aligning it with the top track. Attach the side guide channel to the wall, making sure the gate retracts and extends smoothly.
- Mark the screw holes for the side guides and drill holes accordingly.
- Secure the side guides with screws, making sure they are tightly fixed.
*The retractable gate in these images has a dark blue track and panel, which is a custom design option by Xpanda Security. DIY Xpanda's standard retractable gates are available in white.
Step 7: Install the Bottom Track
- If the gate includes a bottom track, position it along the floor where the gate will rest when closed.
- Mark and drill the necessary holes in the floor, then secure the bottom track with screws.
Step 8: Test the Gate
- Open and close the gate to ensure it retracts smoothly along the top and bottom tracks.
- Make any necessary adjustments to the alignment to ensure proper operation.

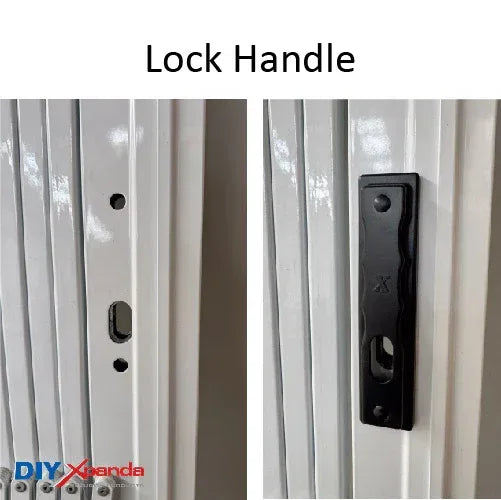

Step 9: Locking Mechanism Installation
- Install the locking mechanism as indicated in the gate’s manual. Attach the handle or lock on the gate at a convenient height.
- Secure the lock plate on the wall or floor to match the lock position of the gate.
Step 10: Final Adjustments
- Check all screws to ensure they are securely fastened.
- Make sure the gate opens and closes properly and locks securely.
Customer Reviews
Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B

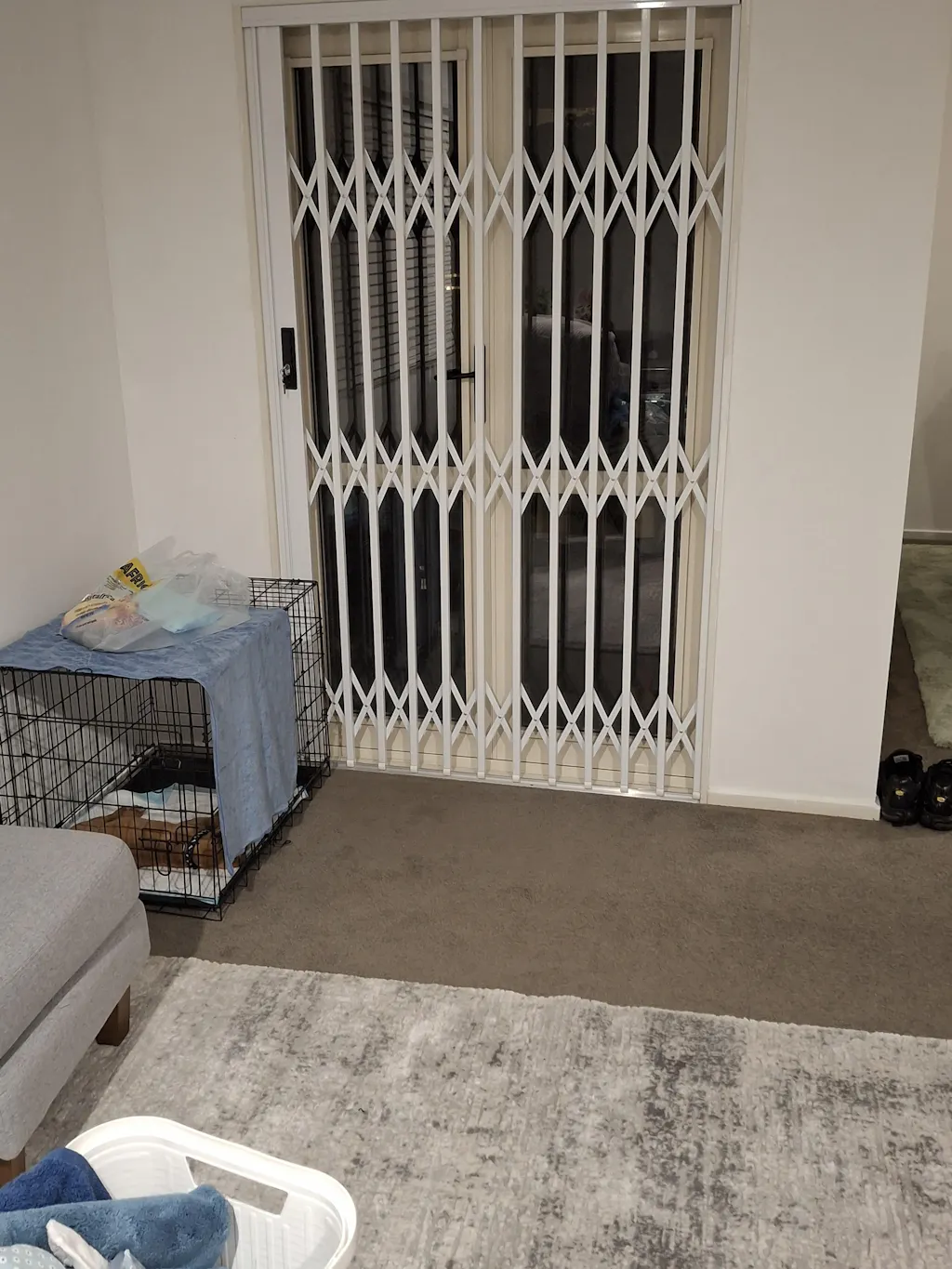

Great gate service was excellent thanks Tomo and easy to install.
