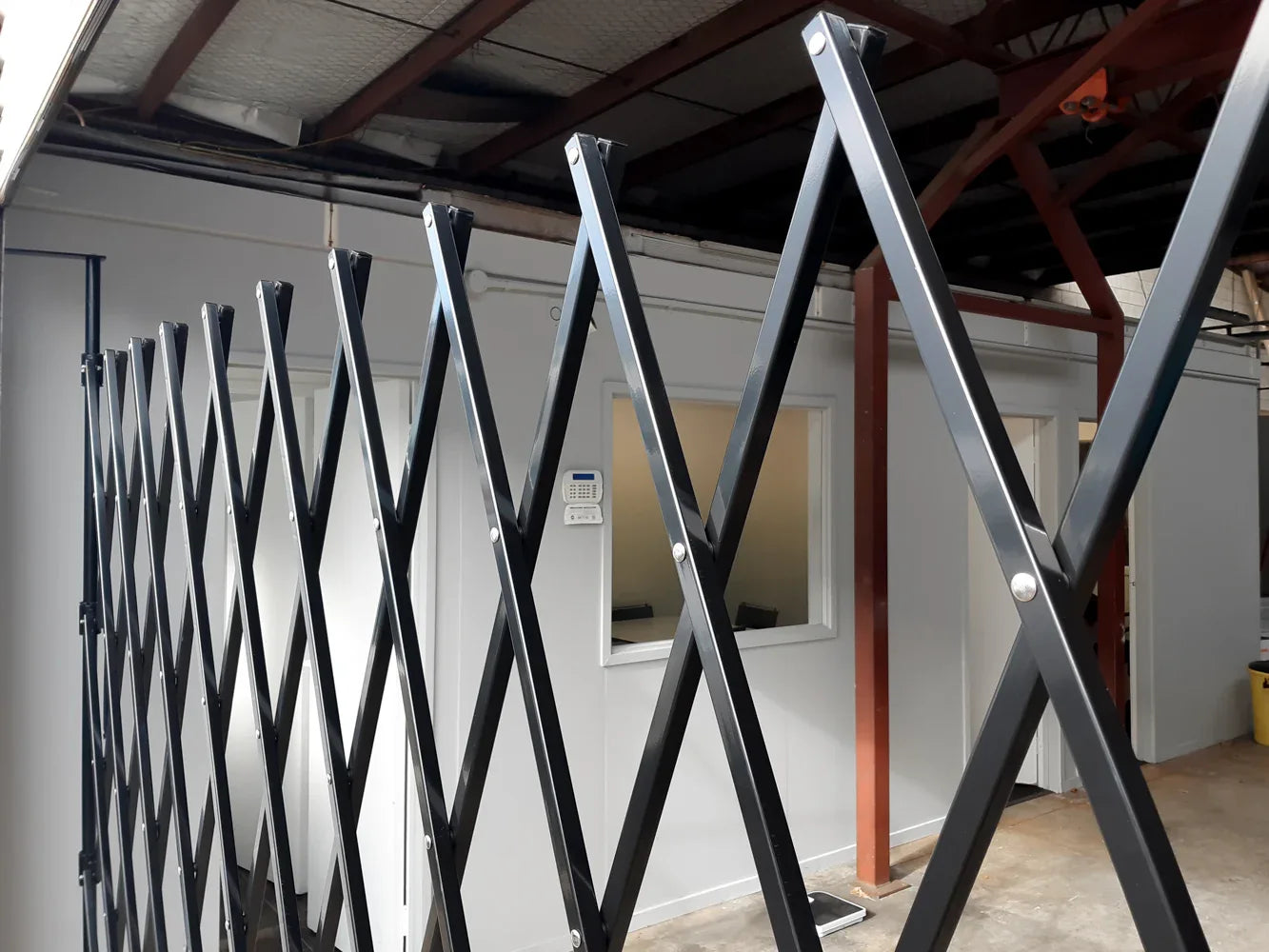

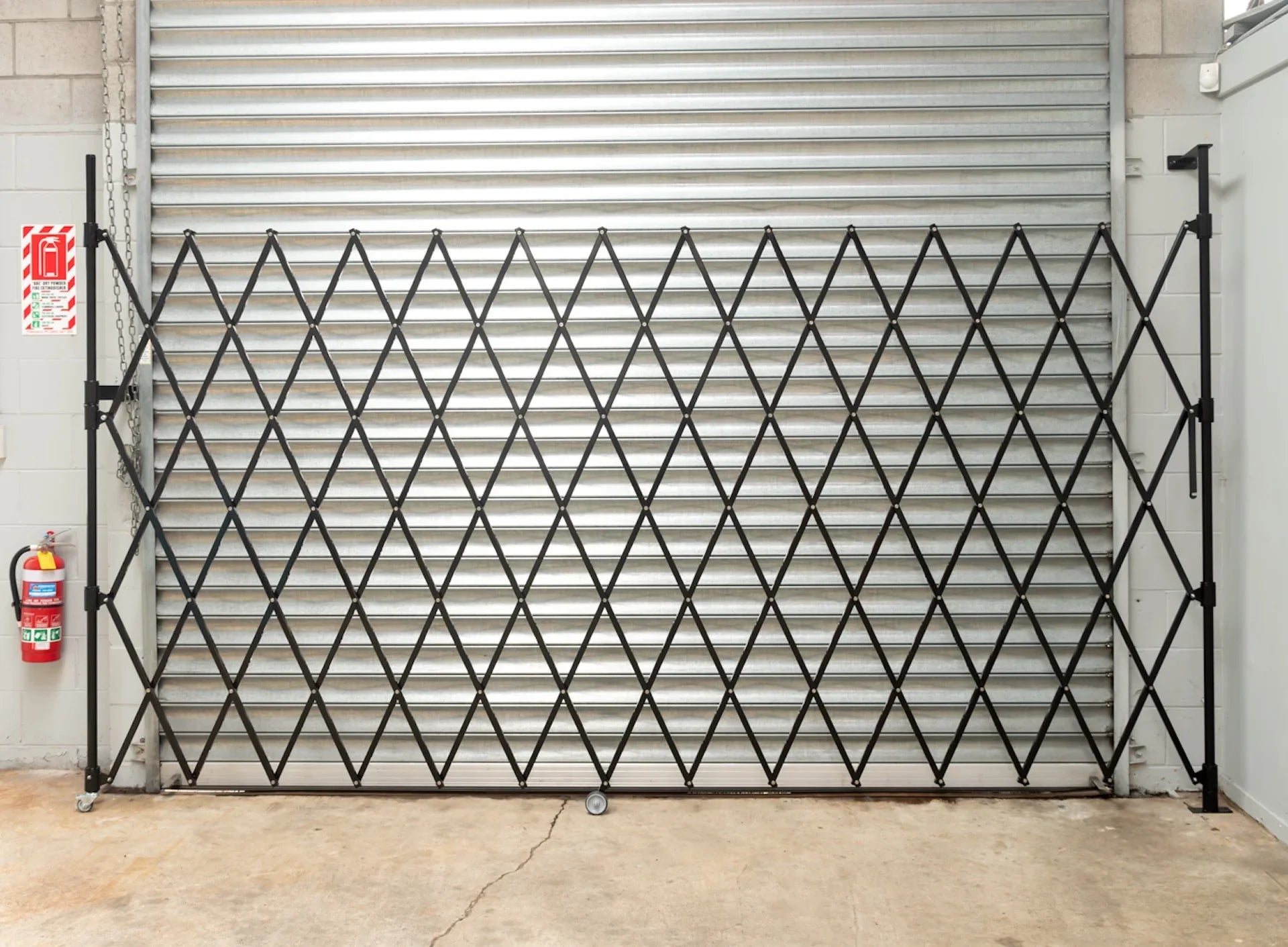

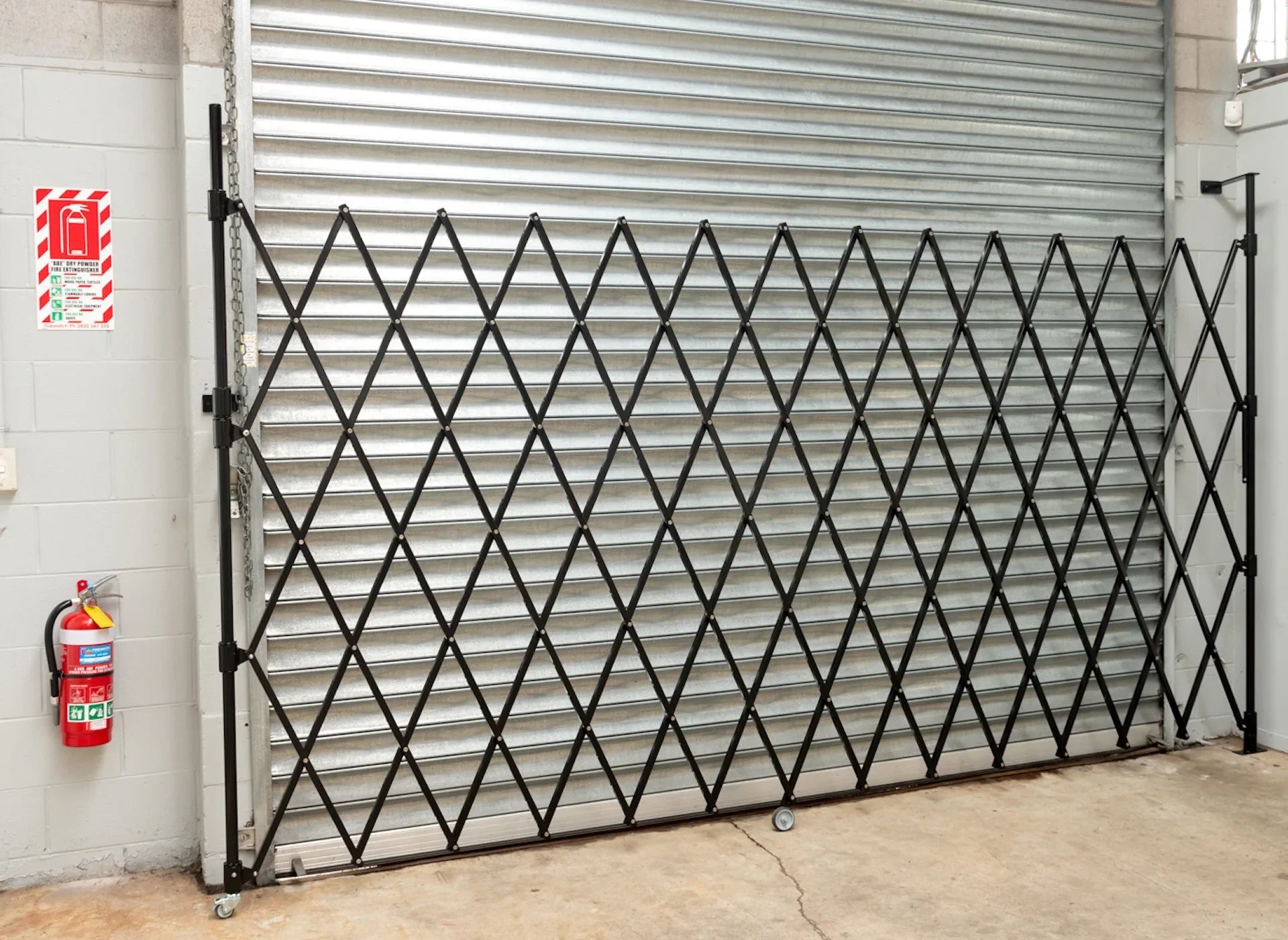

The DIY Xpanda Expandable Barrier is a practical solution for controlling access and improving safety around homes, garages, workshops, and busy environments. Designed primarily for pedestrian management and temporary access control, it is suitable for residential, retail, and light commercial situations where flexible zoning or safety separation is needed. Its lightweight aluminium frame and rolling castor make it easy to deploy, adjust, and secure. While it offers a strong visual barrier, it should be considered a safety and access-control product rather than a high-security gate.

Expandable barriers are also sometimes referred to as scissor gates due to their expandable folding design. However, these products are designed primarily for temporary access control and safety applications.

For customers needing stronger protection against break-ins, DIY Xpanda recommends our Retractable Security Gates.

For certified security requirements, engineered systems, custom fabrication, or larger commercial and high-risk projects, Xpanda Security provides custom-built security solutions designed for large-scale and professional applications.

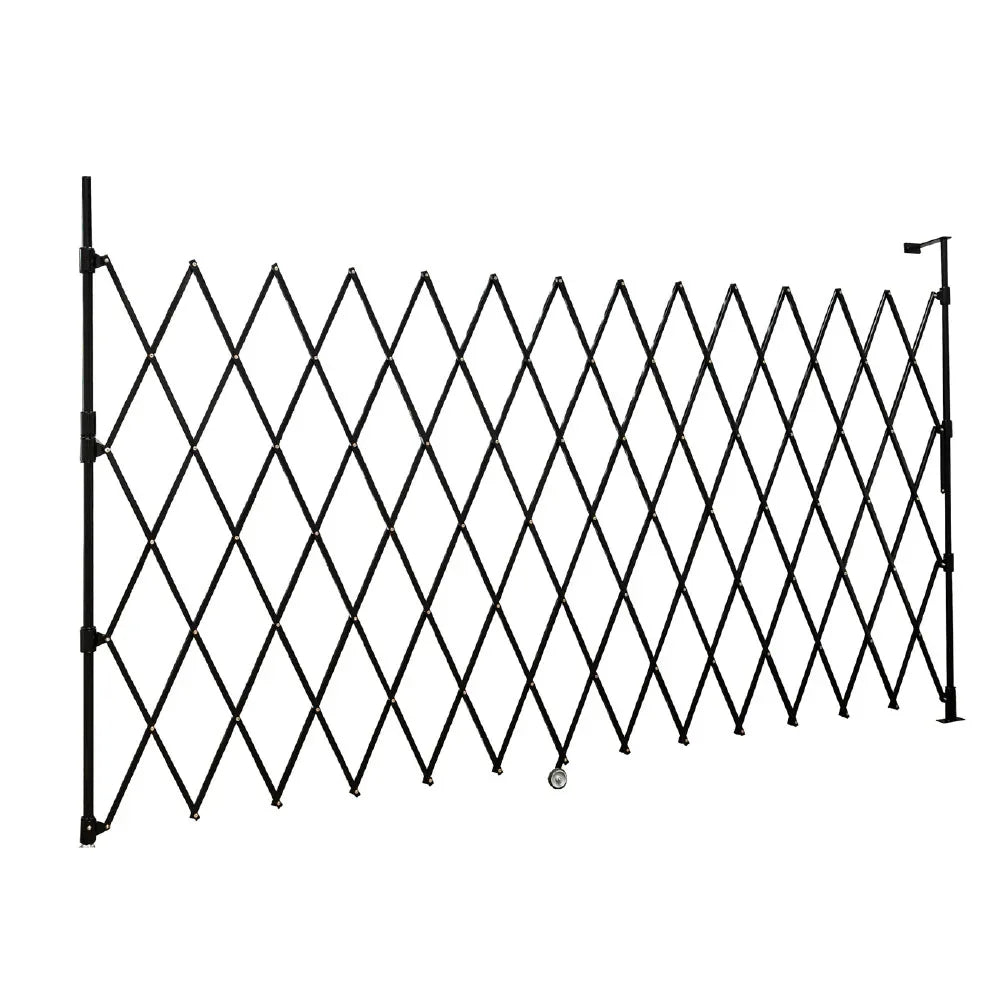

• Adjustable width: 410mm – 4000mm
• Height: 1900mm | Thickness: 100mm

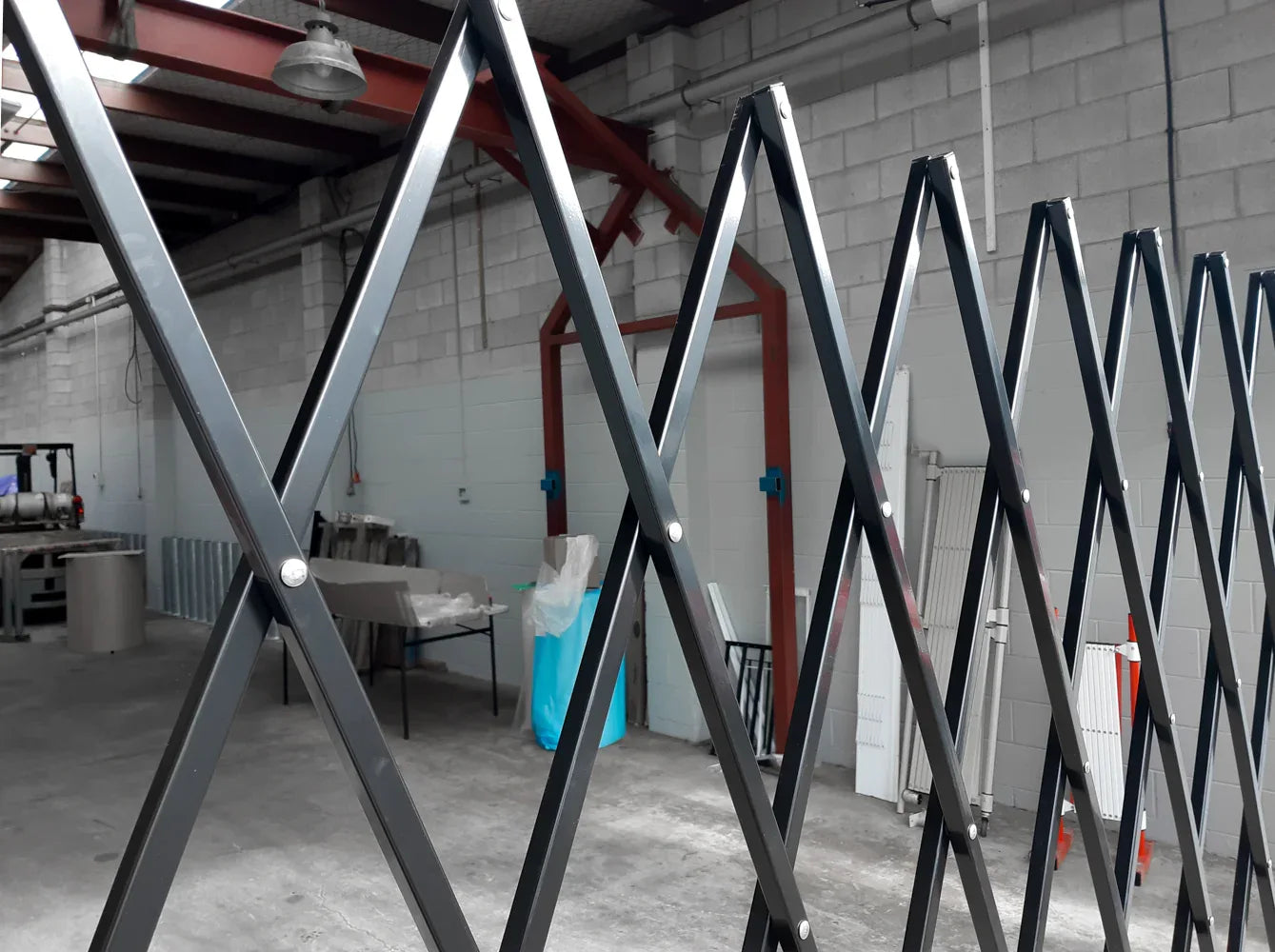

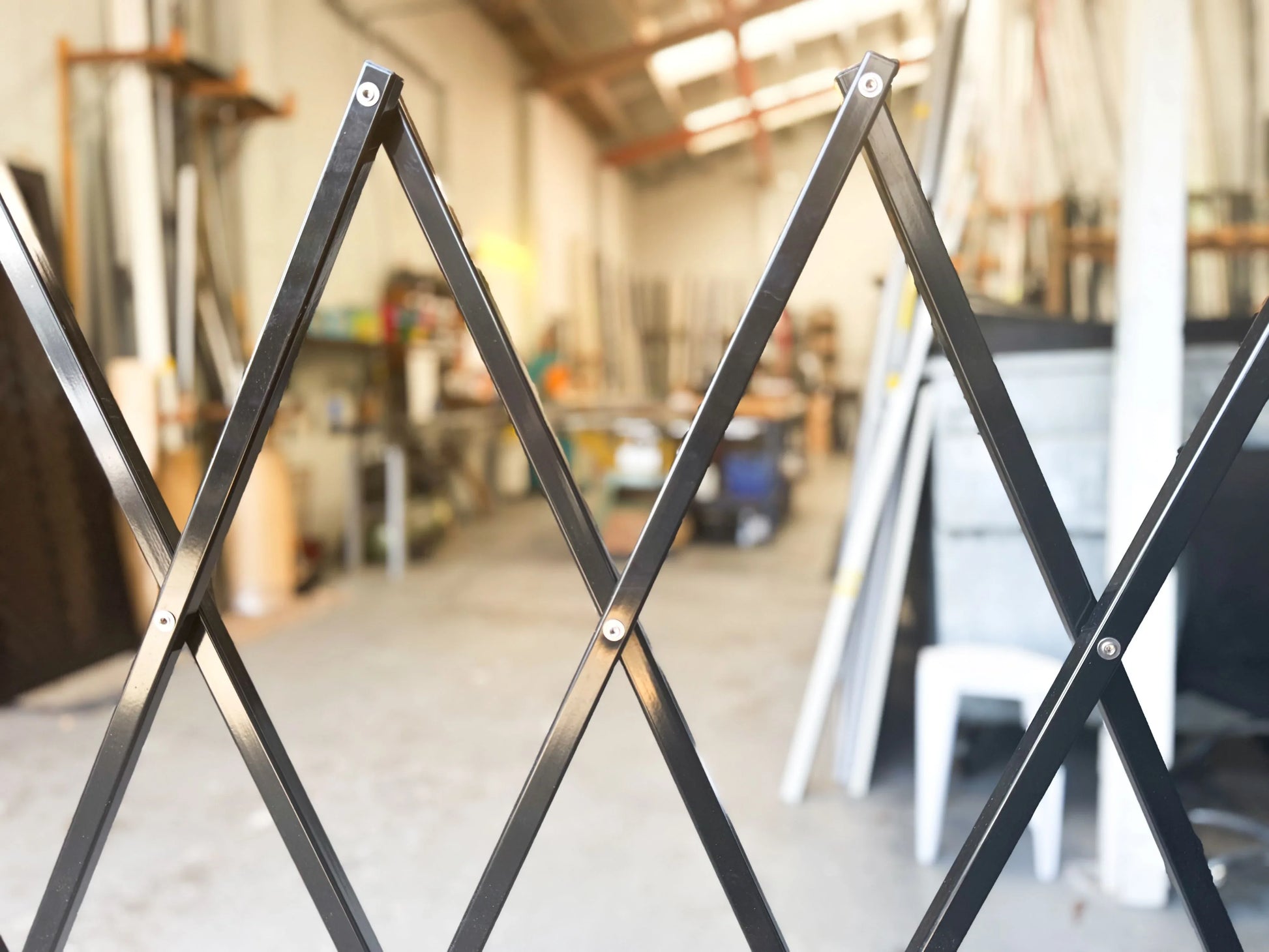

• Frame: 20mm square aluminium tubing

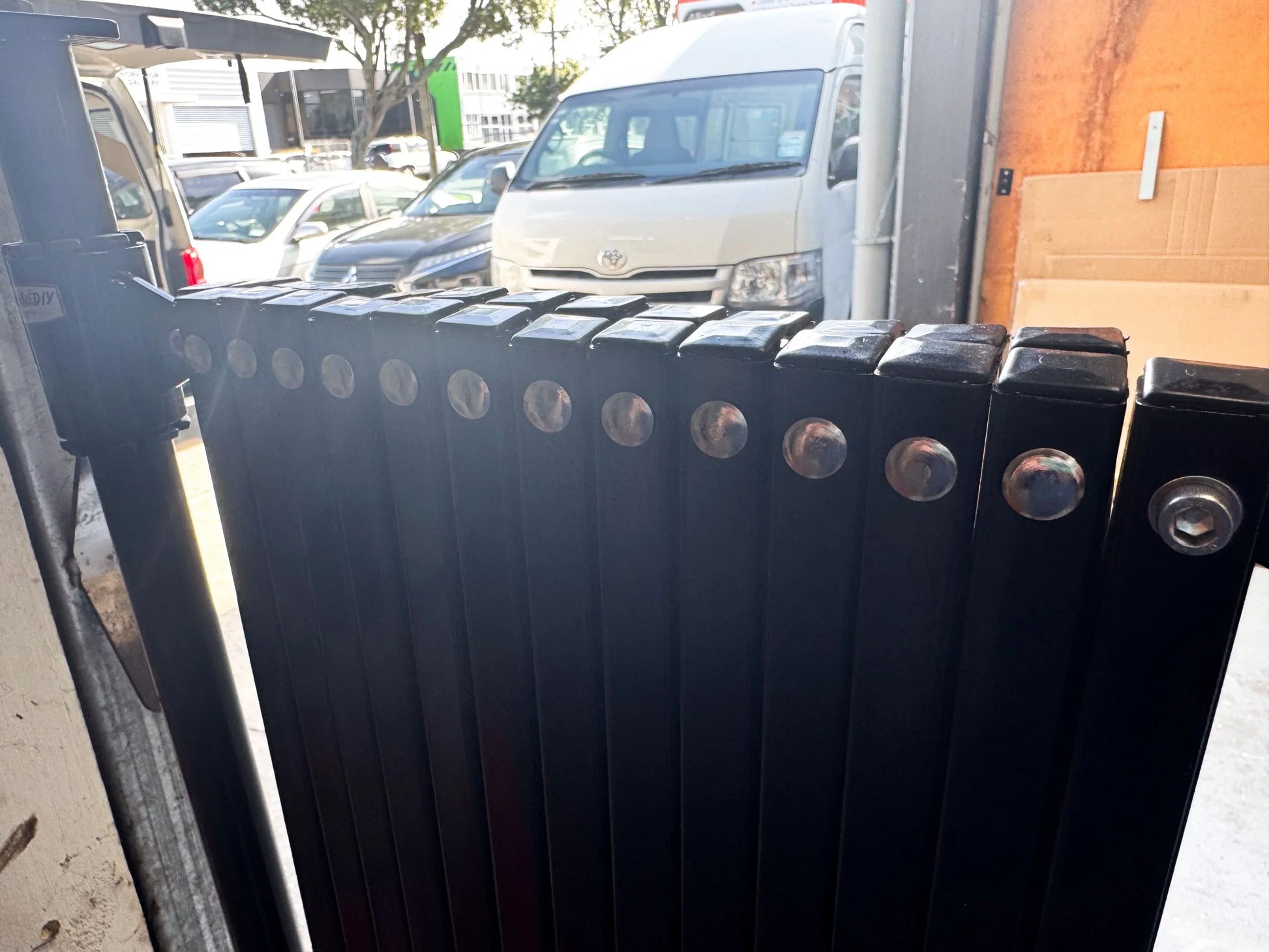

• Stainless steel riveted fixings
• Locking, top, and floor brackets included
• Swivel castor with foot lock for mobility

• Safety & Access Control:
  Purpose-built for pedestrian management, temporary access control, and restricting access to hazardous or restricted areas. Suitable for homes, garages, driveways, workshops, and light commercial environments. Not designed as a high-security barrier.
• Quick Setup & Mobility:
  Lightweight but durable construction makes it easy to install, reposition, or fold away when not in use.
• Clear Visual Barrier:
  Provides an obvious visual barrier that helps discourage entry and improve safety awareness. Also used in some cases for secondary purposes such as light-duty protection against pets, children, or temporary restricted areas.

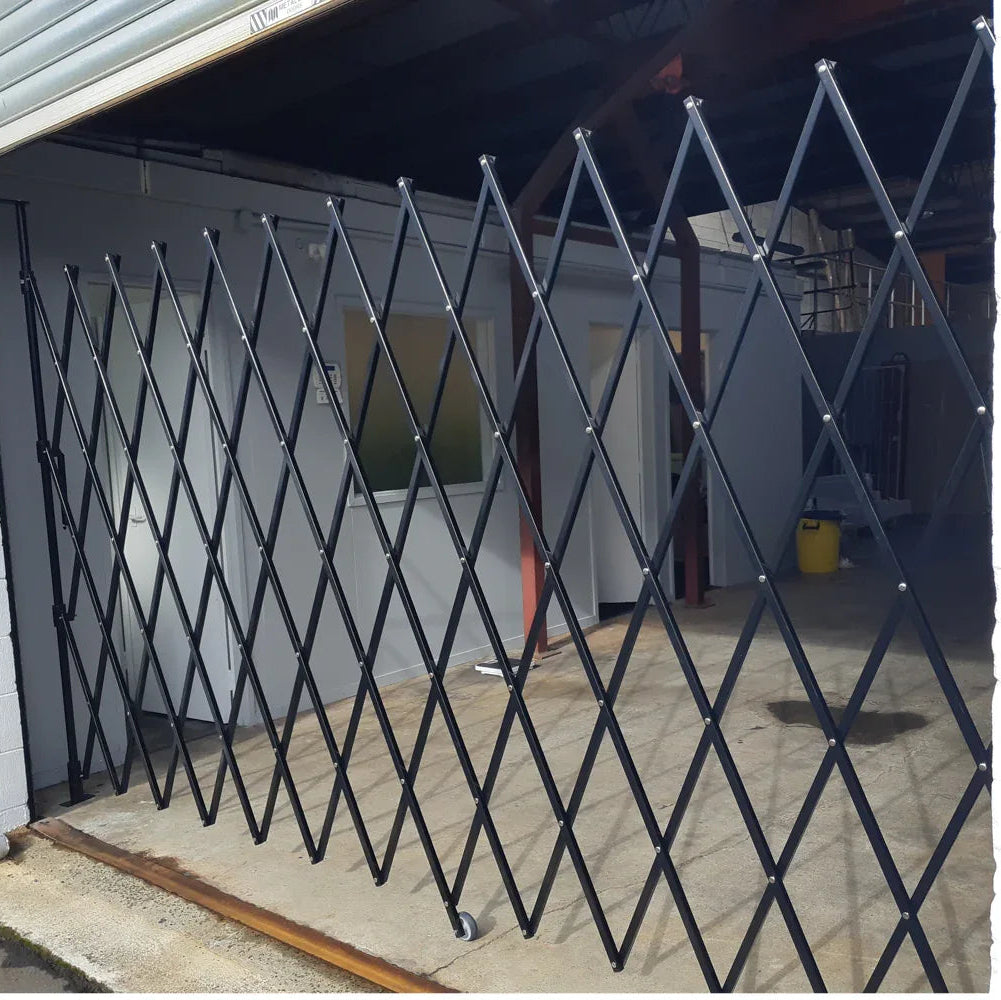

• Home garages and workshops

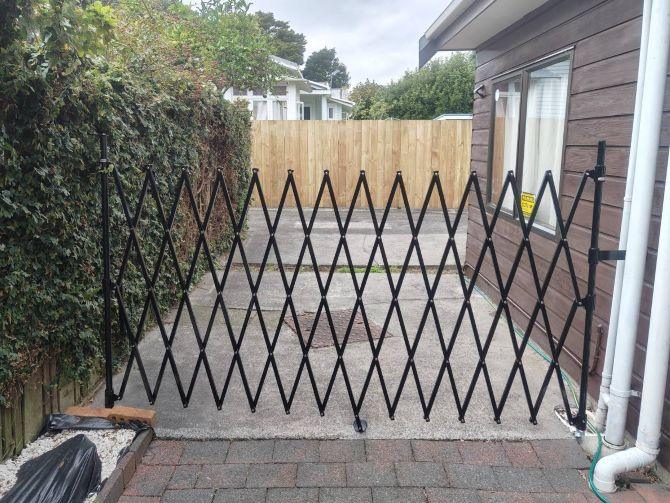

• Driveways and residential access areas
• Rental properties and temporary access control
• Storage and utility spaces
• Warehouses and factories

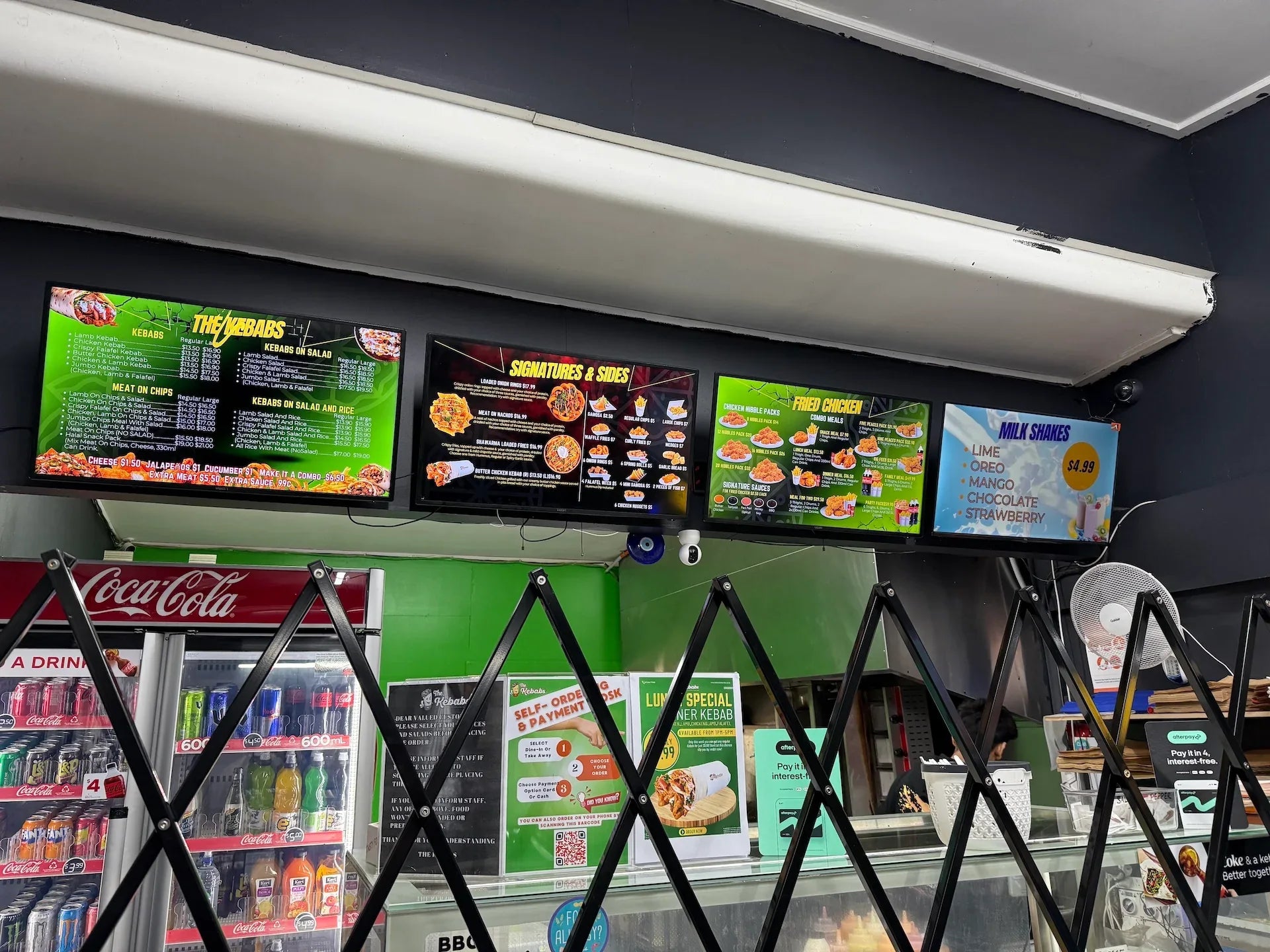

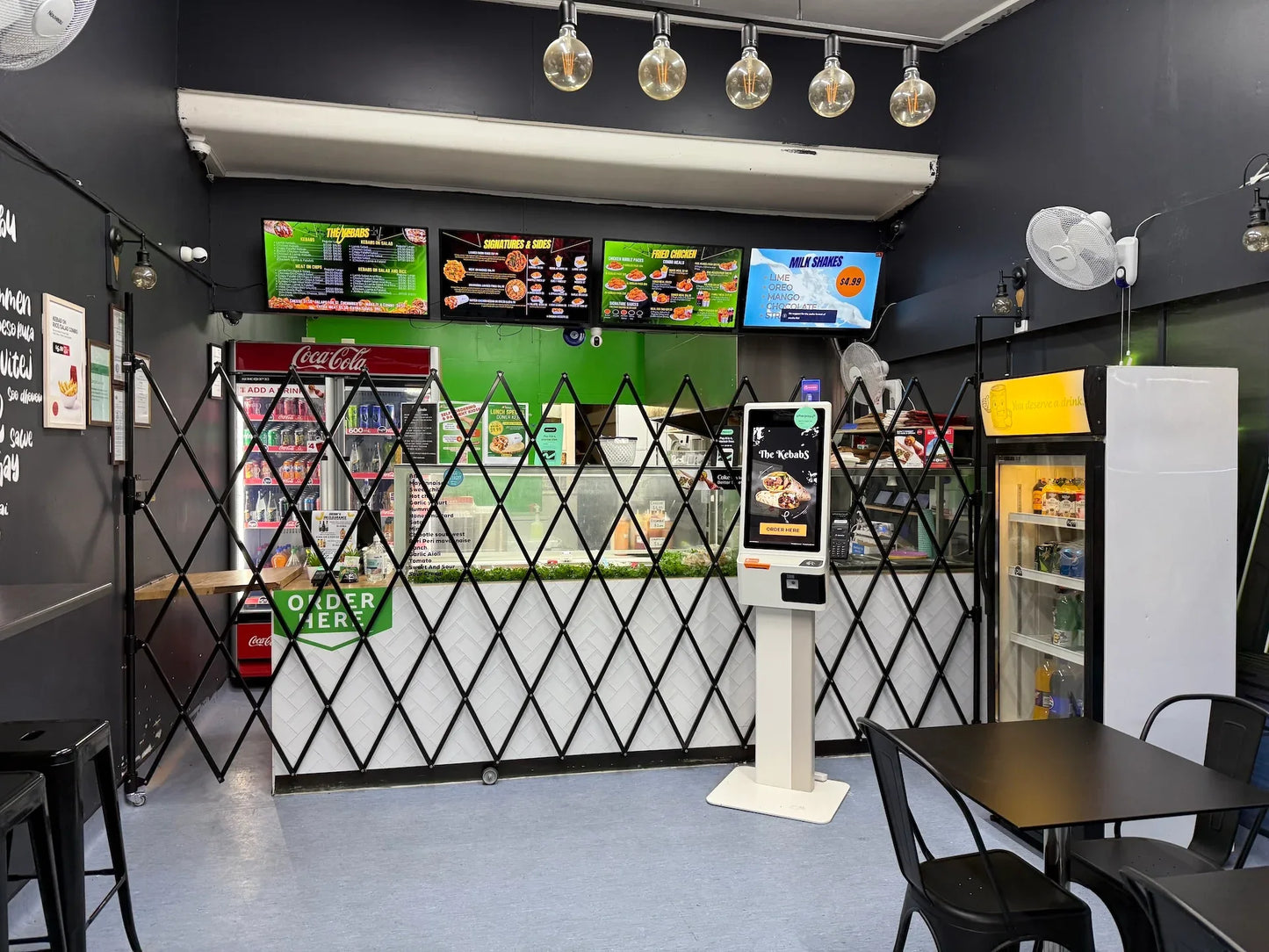

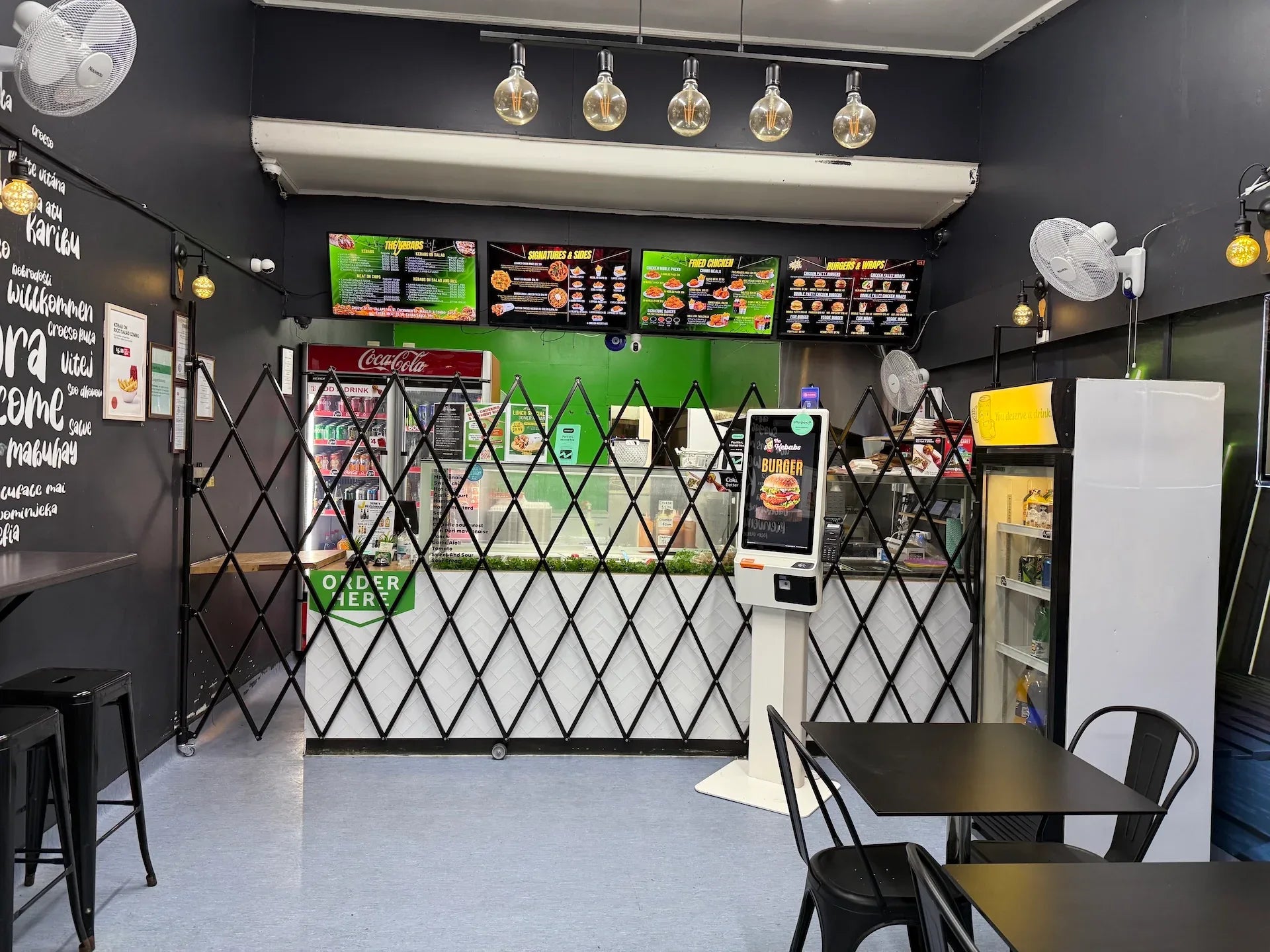

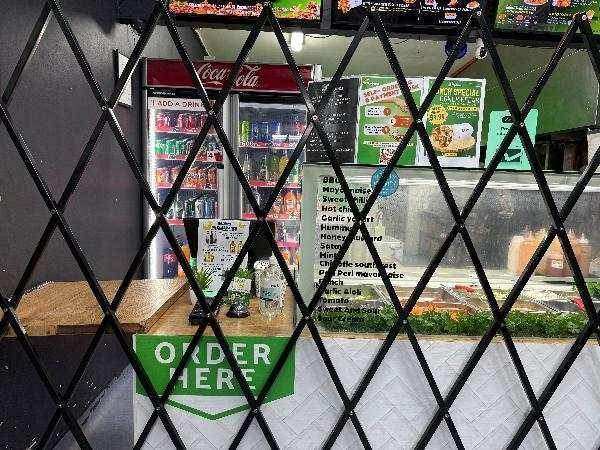

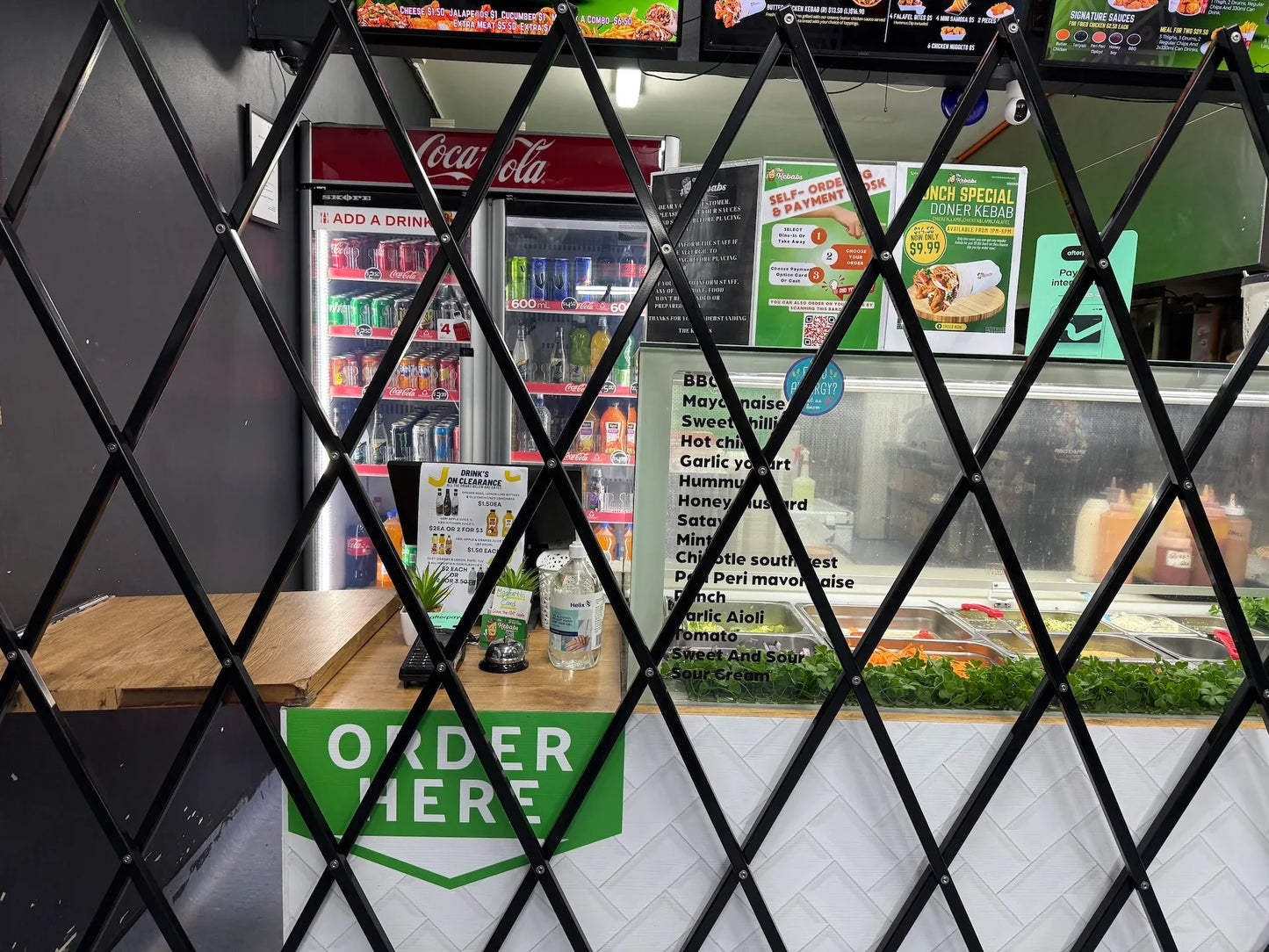

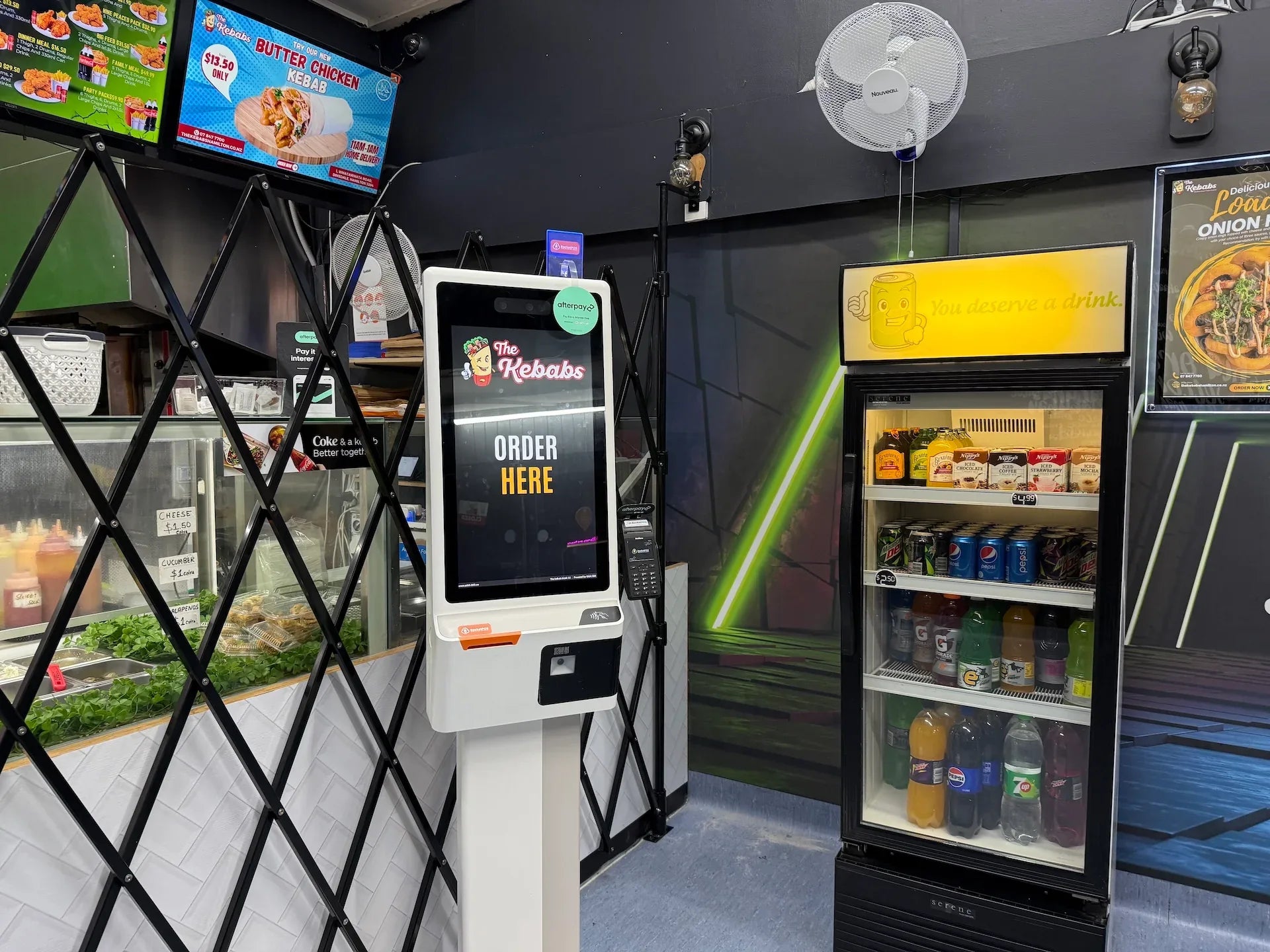

• Retail spaces and supermarkets
• Gyms, libraries, and public facilities
• Offices and architectural firms

Black Expandable Barriers Components

• Expandable barrier panel (aluminium tubing)

• 200mm top fixing bracket

• 130mm floor fixing bracket (fixed to floor)

• 1 x Anti-Luce wall fastener

• Swivel castor with foot lock

Note: Screws/fixings not included. An 8mm Dynabolt is recommended for fixing into concrete, while a suitable hex-head wood screw is recommended for fixing into a timber frame. Always confirm that the fixing type and length are appropriate for the mounting surface.

How to Install a Black Expandable Barrier

Expandable barriers are designed to help control pedestrian access and temporarily restrict entrances, workshops, roller doors and other areas. They are not designed to provide the same level of protection as a steel security gate.

Black Expandable Barrier Components

Your barrier includes:

• Expandable barrier panel made from aluminium tubing
• 1 × 200mm top fixing bracket
• 1 × 130mm floor fixing bracket
• 1 × 200mm locking bracket
• 1 × Anti-Luce wall fastener, also known as a drop latch or trailer latch
• Swivel castor with foot lock

Note: Screws and fixings are not included. An 8mm Dynabolt is recommended for fixing into concrete, while a suitable hex-head wood screw is recommended for fixing into a timber frame. Always confirm that the fixing type and length are appropriate for the mounting surface.

---

Step 1: Measure the Entrance

Before selecting or installing your expandable barrier, measure the area you want to cover.

Measure:

• The full width of the entrance
• The required barrier height
• The available floor and upper fixing surfaces

Measure the width from the intended fixed side of the barrier to the locking point on the opposite side.

Also confirm that there is enough space for the barrier to retract when it is not in use.

---

Step 2: Check the Distance from the Door or Roller Door

Position the expandable barrier far enough away from the door or roller door so that both systems can operate without touching.

Before drilling:

• Open and close the door or roller door.
• Check that the barrier will not catch on handles, tracks, hinges or other fittings.
• Make sure the roller door can lower fully without resting on the barrier.
• Check for obstacles such as power boxes, pipes or wall fittings.
• Confirm that the barrier will not block the clear opening when retracted.

If a roller door comes down onto the barrier, it may damage the barrier or place unnecessary strain on the roller-door motor.

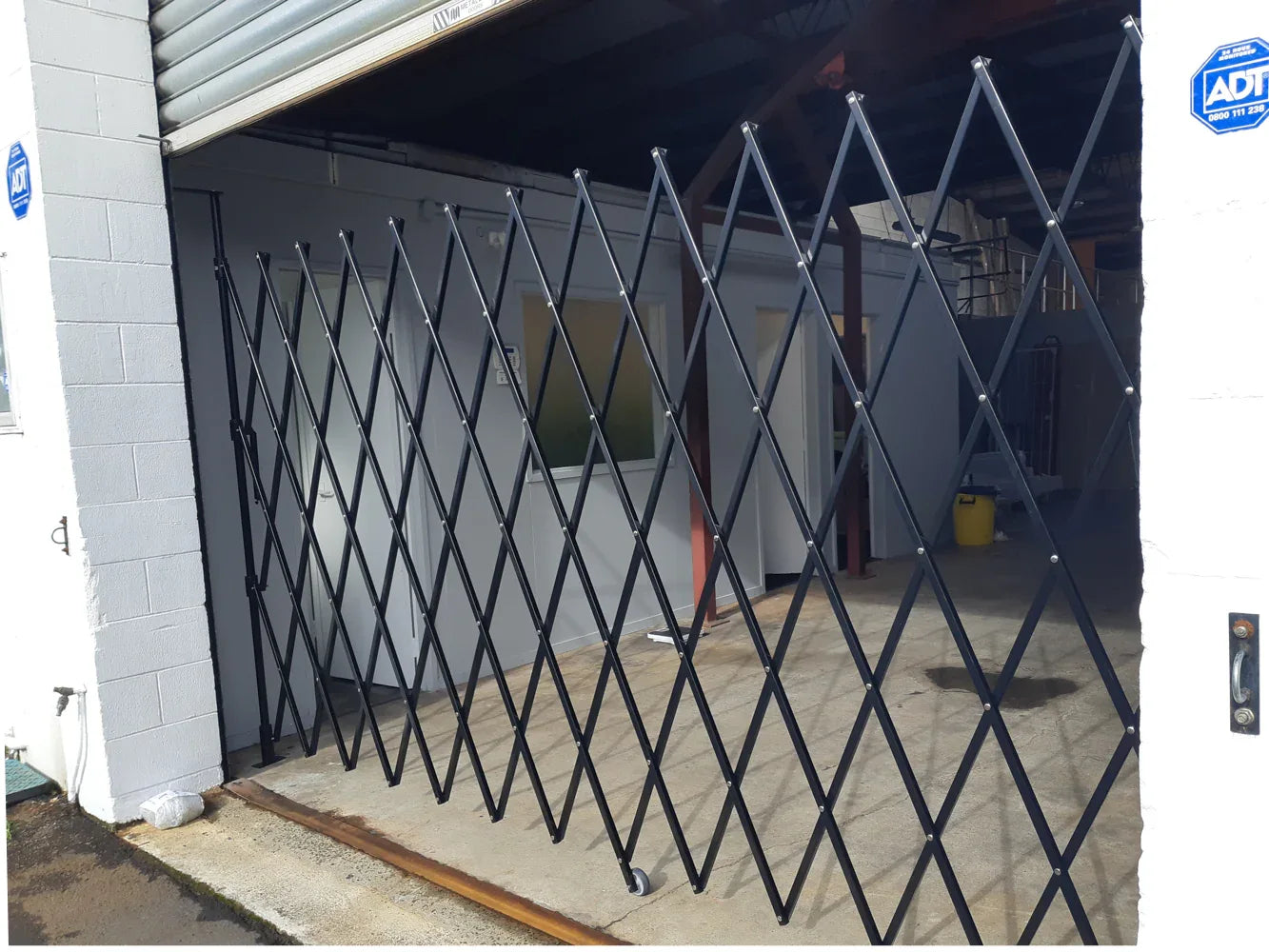

The barrier can often be installed behind a roller-door track, provided there is a suitable concrete, timber or other structurally sound fixing surface.

---

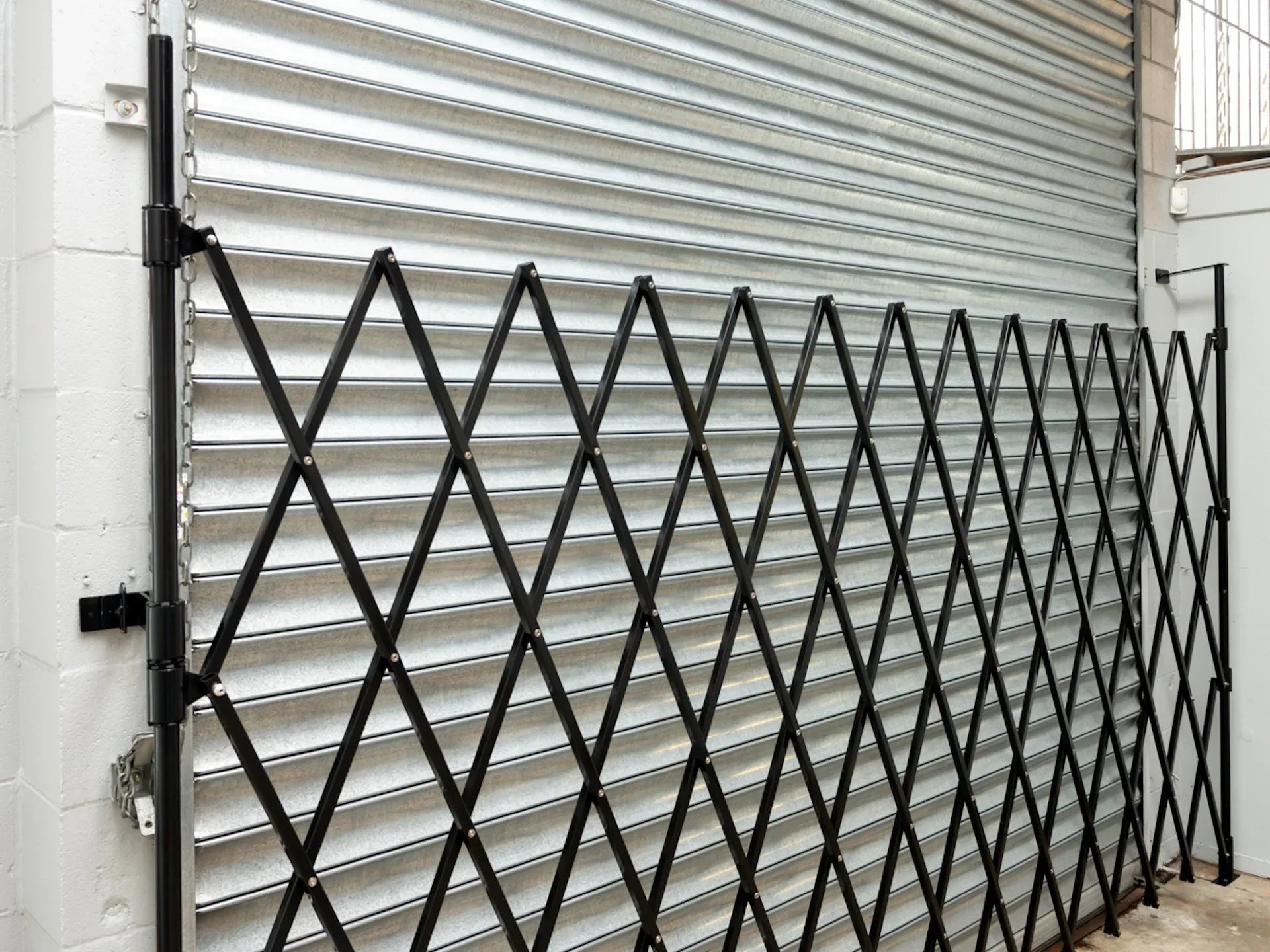

Step 3: Choose the Fixing Direction

The black expandable barrier can be installed in different positions depending on the entrance, available fixing surfaces and required distance from the door.

Face Fix

The top fixing bracket is secured onto the front face of the wall, frame or supporting structure.

Face fixing may be suitable when:

• There is a strong, flat surface above or beside the opening
• The barrier needs to sit in front of the entrance
• There is not enough suitable space inside the opening
• The barrier must remain clear of a roller-door track

Sill Fix

The top fixing bracket is secured into an internal, side-facing or rear surface of the opening.

Sill fixing may be suitable when:

• There is a timber stud behind the frame
• There is a concrete wall or lintel
• The barrier can sit further back from the entrance
• A straighter or more secure fixing position is available

Choose the position that provides the strongest practical fixing point while keeping the barrier clear of the door, roller-door track and other obstacles.

---

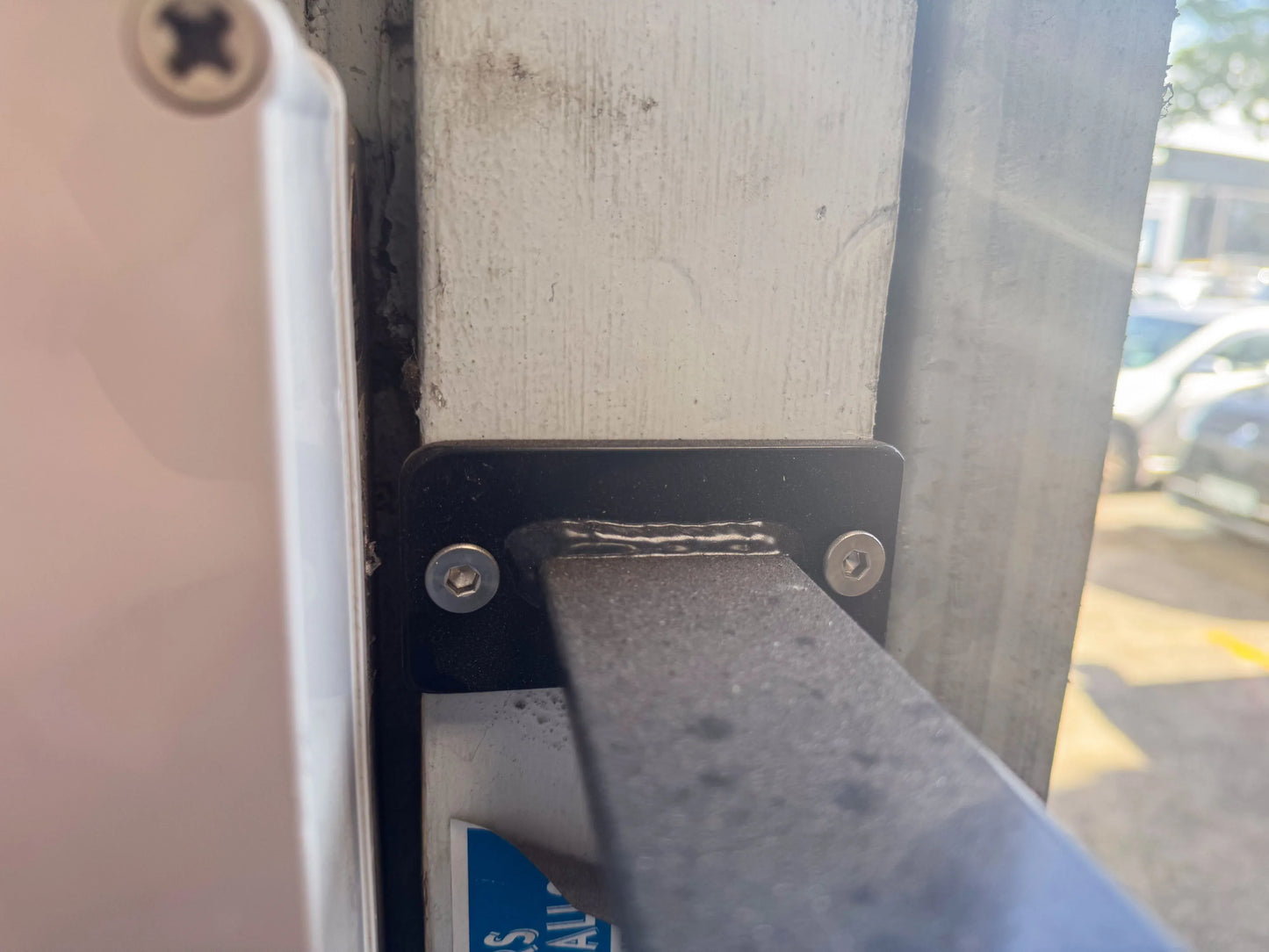

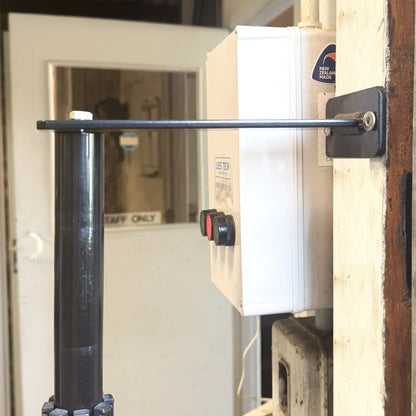

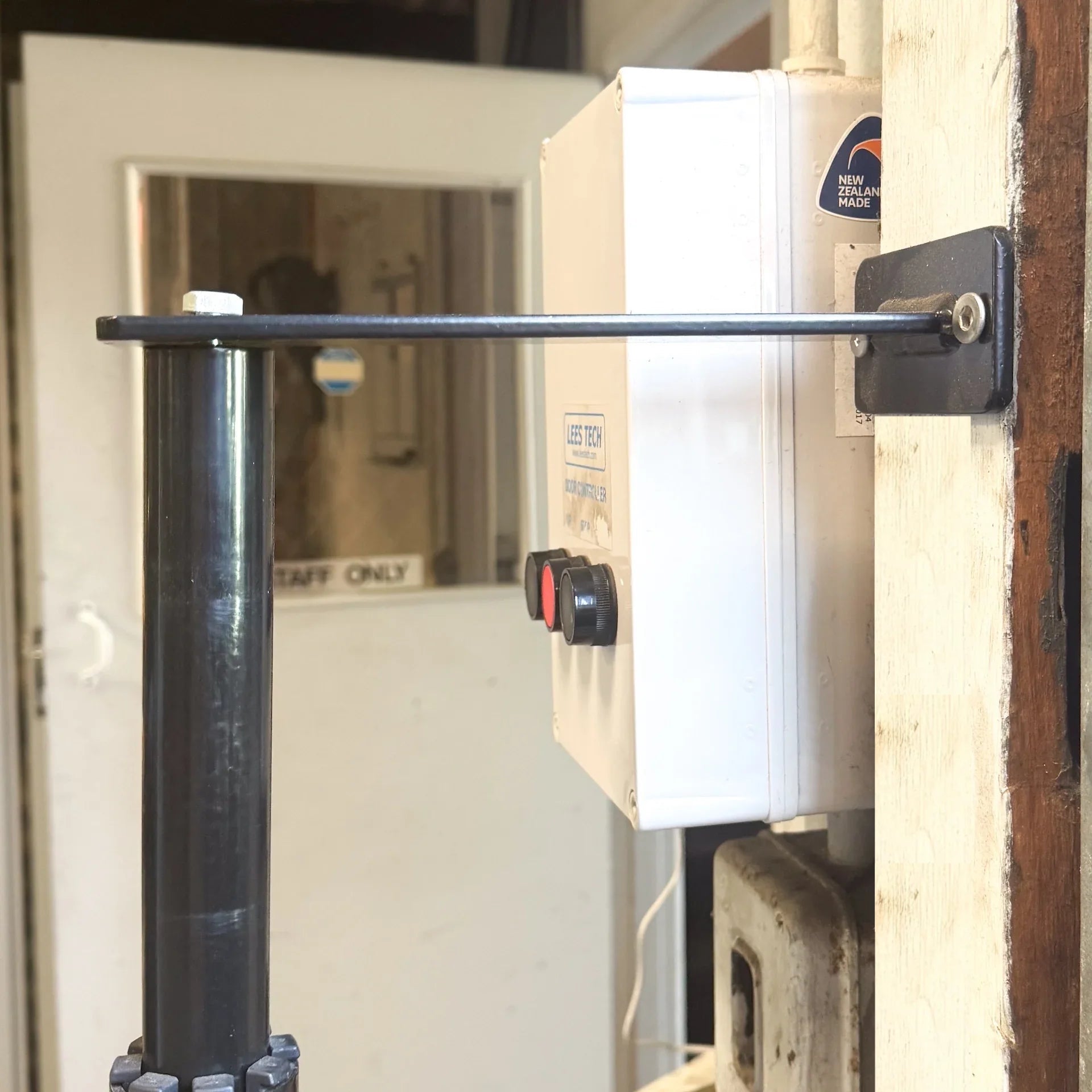

Step 4: Position the Top and Floor Fixing Brackets

Unlike the yellow expandable barrier, which uses several individual side brackets, the black expandable barrier is secured using a top fixing bracket and a floor fixing bracket.

The fixing system includes:

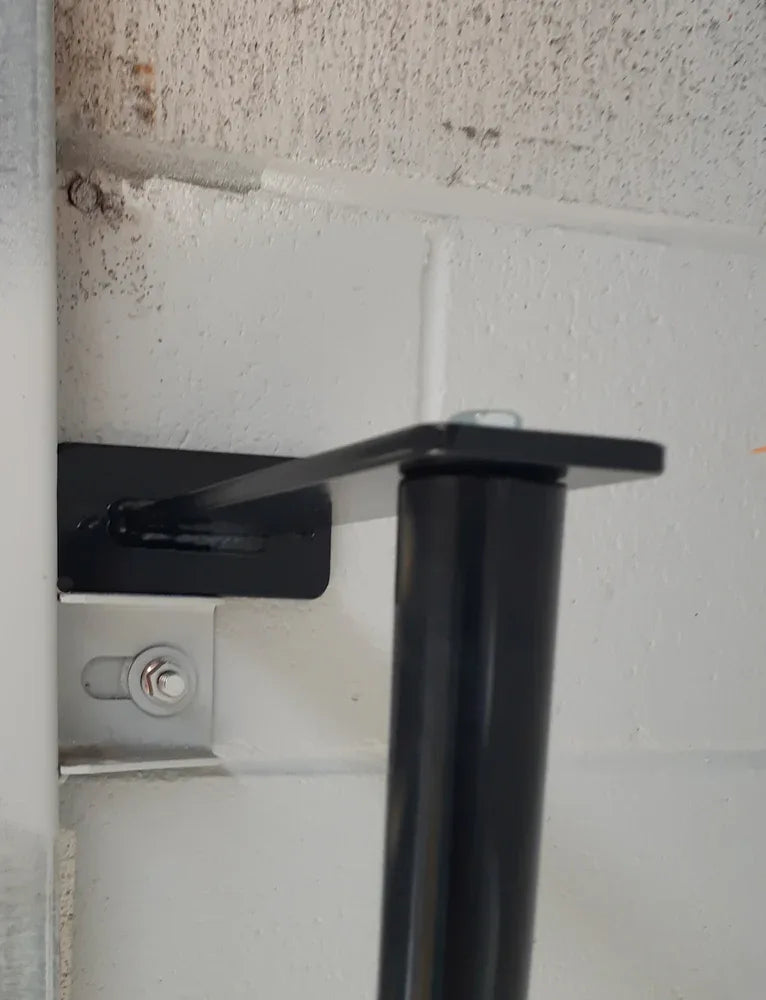

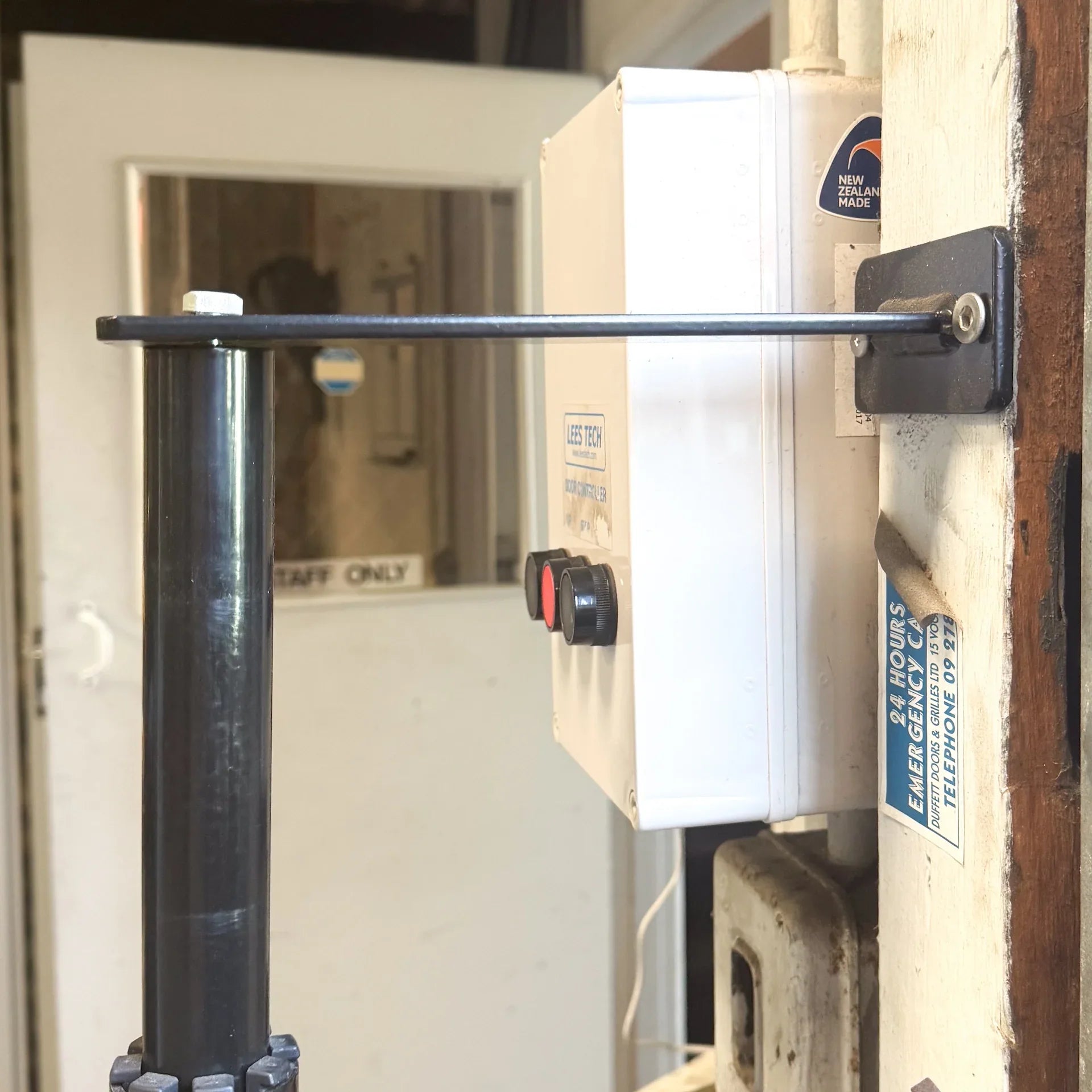

• A 200mm top fixing bracket

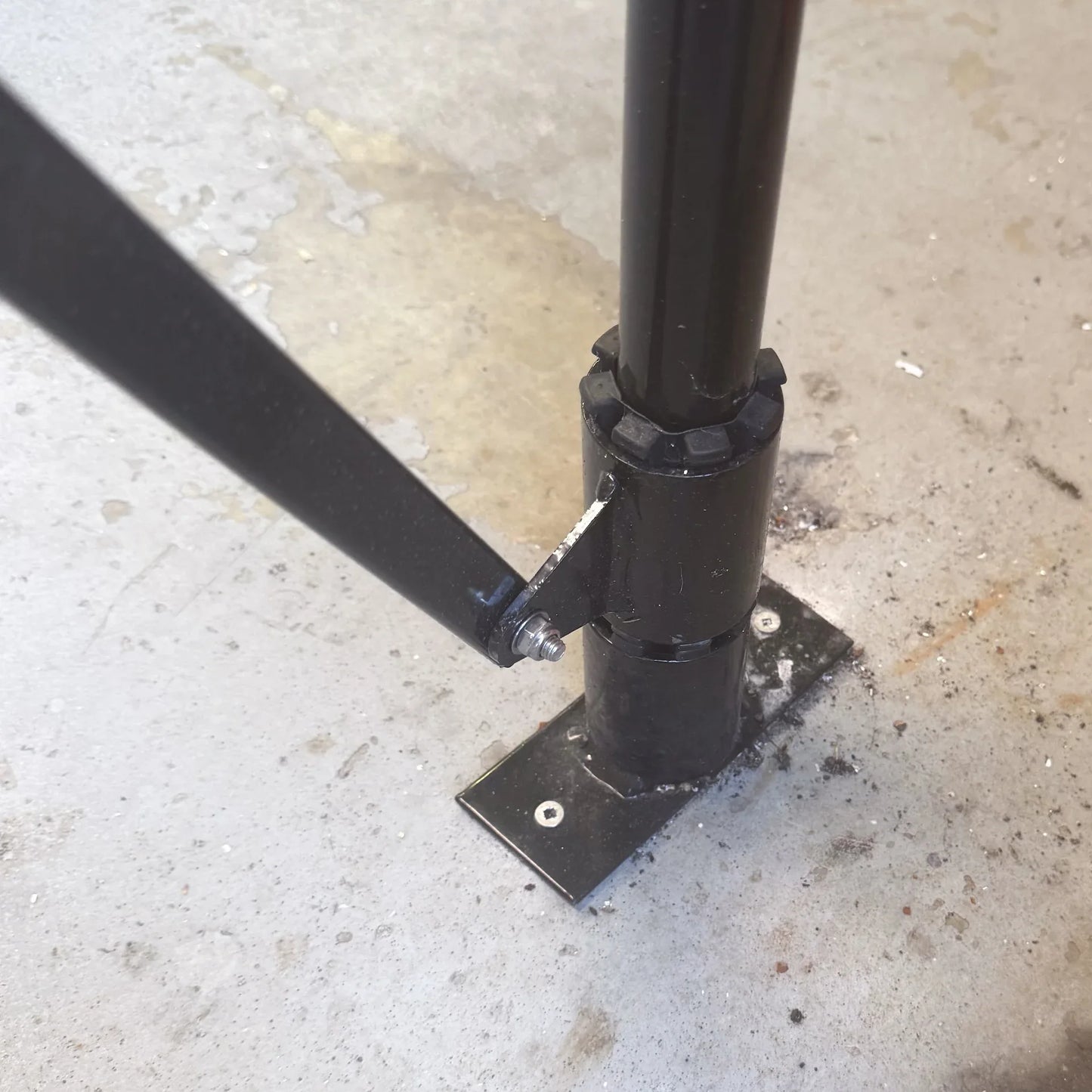

• A 130mm floor fixing bracket
• Mounting plates with fixing holes

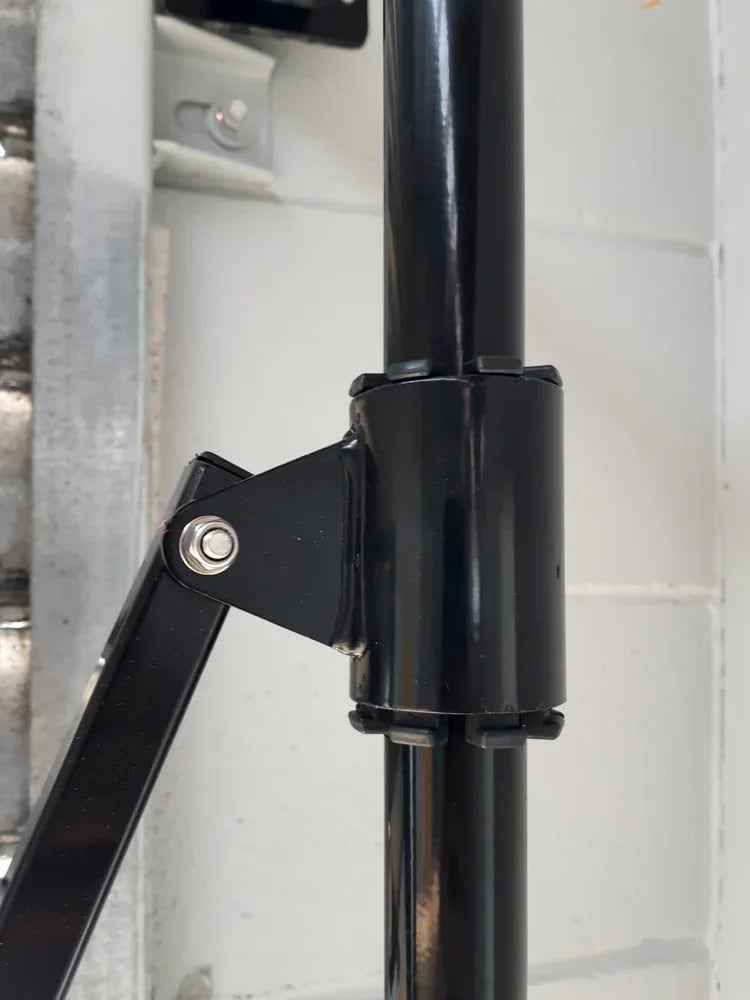

The top and floor brackets secure the fixed side of the barrier and help keep it upright during operation.

Positioning requirements

• Position the barrier vertically.
• Align the top and floor brackets with each other.
• Make sure the floor bracket sits on a solid and level surface.
• Confirm that the top bracket connects to structural timber, concrete or another suitable fixing point.
• Keep the brackets clear of the barrier’s moving slides.
• Make sure the barrier can extend and retract without rubbing against the brackets.
• Check that the swivel castor remains in contact with the floor.

The black barrier uses a bottom and top mounting arrangement rather than the individual side brackets supplied with the yellow barrier.

---

Step 5: Mark and Drill the Fixed Side

Once the barrier position has been confirmed:

1. Hold the barrier upright in its intended location.
2. Check that it is straight and vertically aligned.
3. Position the floor fixing bracket at the base of the fixed side.
4. Position the top fixing bracket directly above it.
5. Mark the fixing holes through both brackets.
6. Confirm that the marks align with suitable structural material.
7. Drill the required holes.
8. Secure the floor and top fixing brackets.
9. Check the barrier alignment again before fully tightening all fixings.

For concrete, use suitable 8mm Dynabolts where appropriate.

For timber framing, use suitable hex-head wood screws of the correct diameter and length.

Do not rely on thin wall lining, decorative trim or unsupported material as the main fixing point.

Take care when drilling into floors or walls. Check for concealed electrical wiring, plumbing, underfloor heating and other services before drilling.

---

Step 6: Test the Barrier Alignment

After securing the fixed side, slowly extend the barrier across the entrance.

Check that:

• The barrier travels in a straight line
• The swivel castor rolls smoothly
• The barrier does not twist or lean
• The expanding slides move freely
• The opposite locking side reaches the intended position
• The barrier remains clear of the door or roller door
• The top and floor fixing brackets remain secure
• The barrier does not lift away from the floor bracket

Do not permanently install the locking side until the barrier has been fully extended and its final position confirmed.

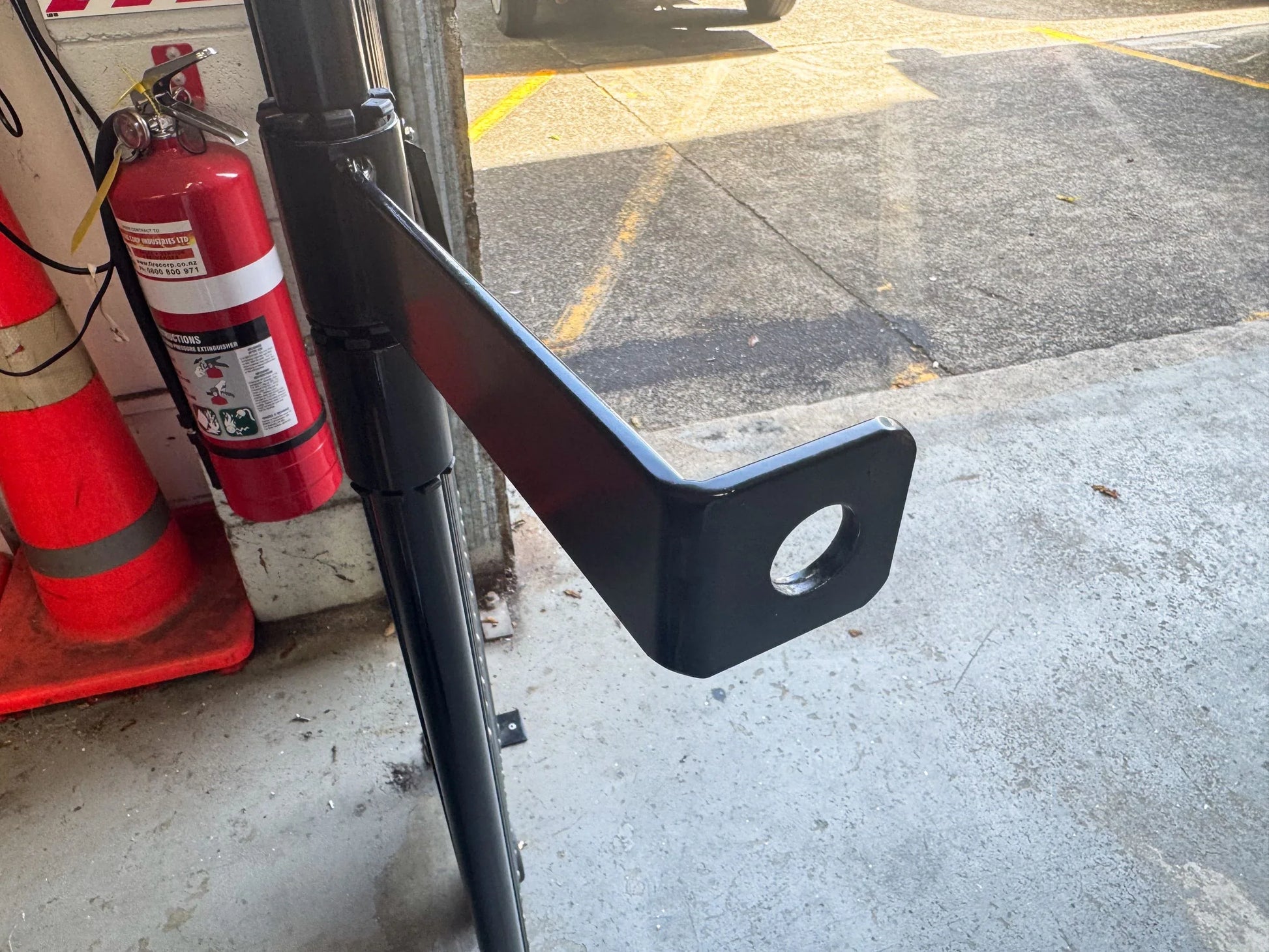

Use the 200mm locking bracket as the operating handle.

Do not allow the locking bracket to catch in the barrier while it is retracting. This could damage or bend the castor-side post.

---

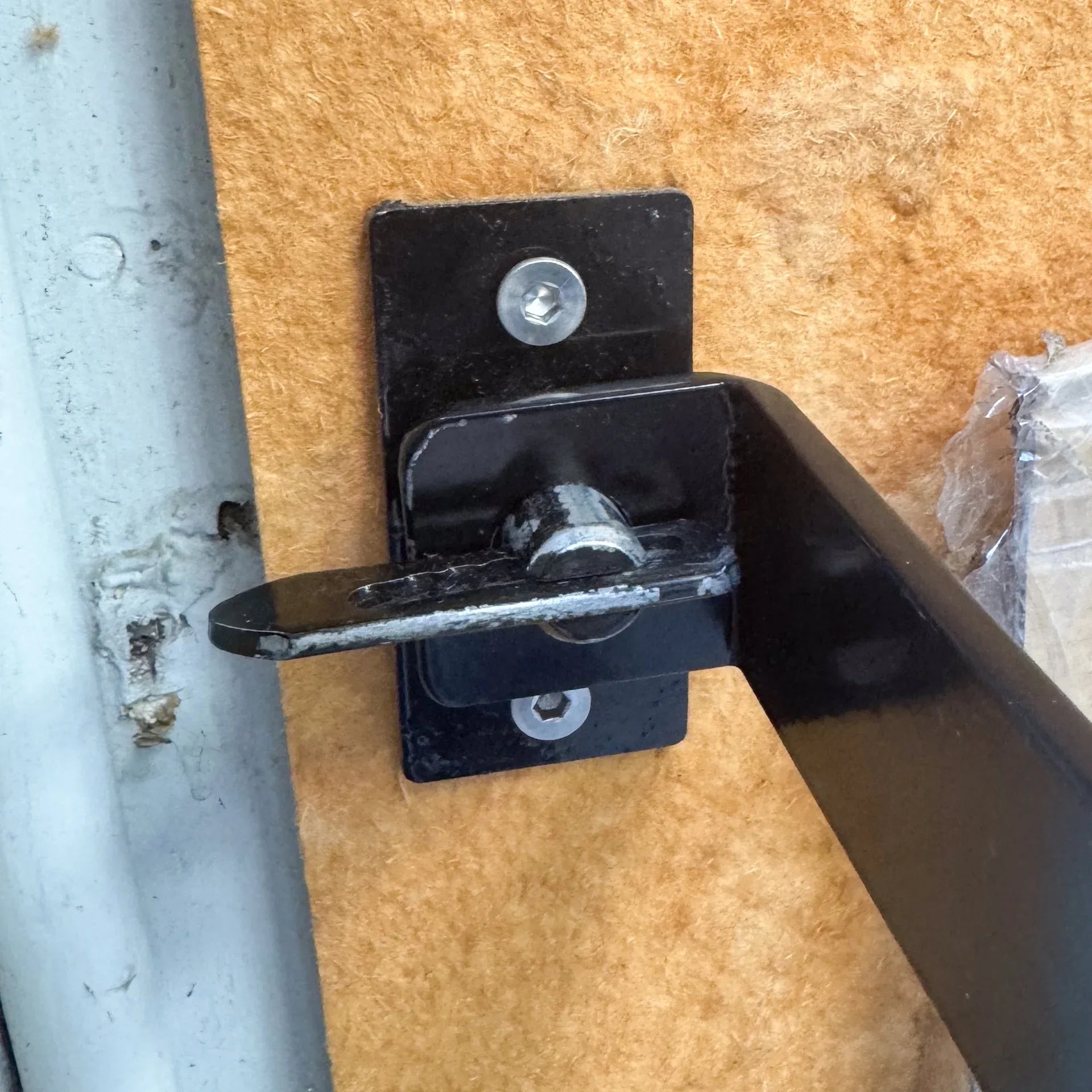

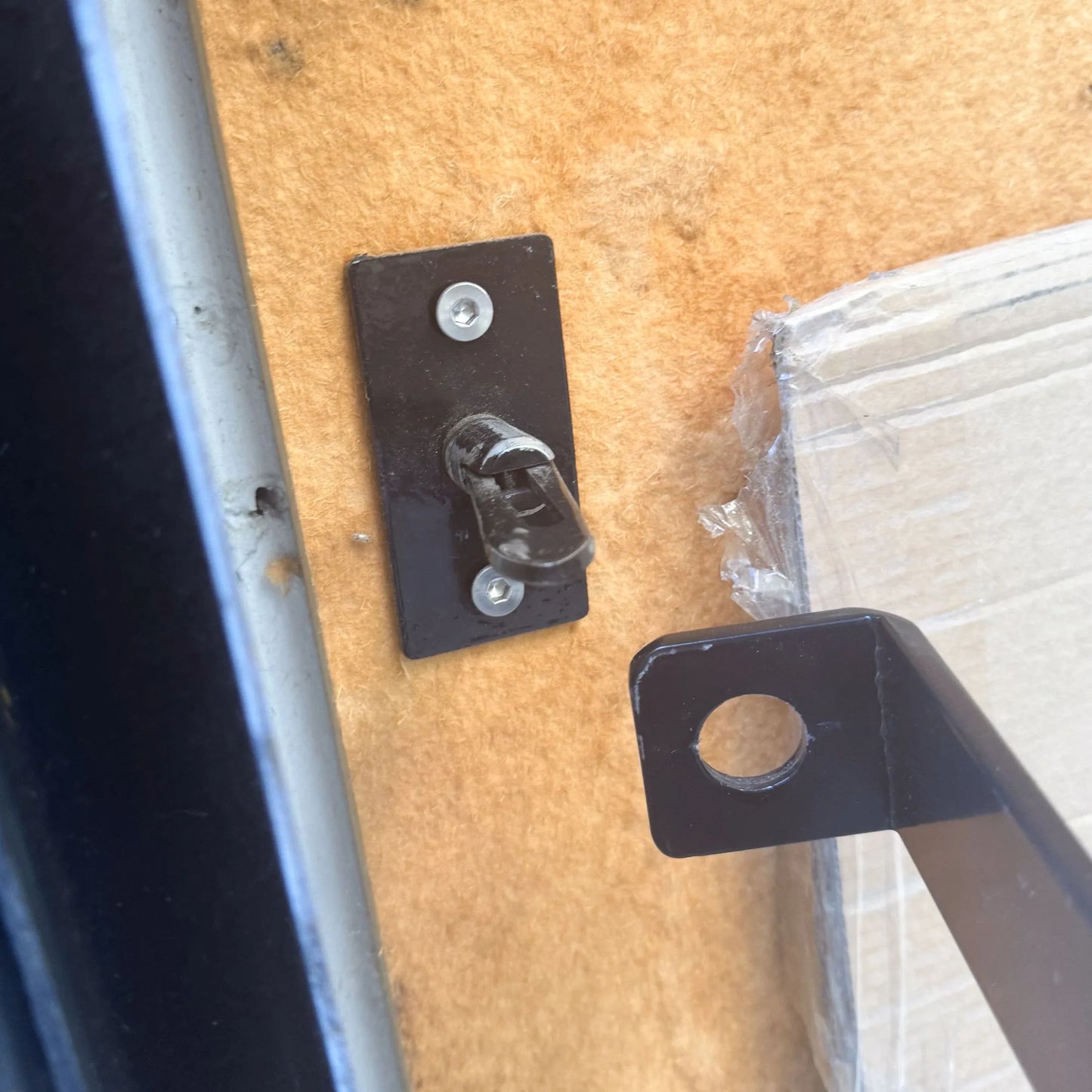

Step 7: Install the Anti-Luce Wall Fastener

The Anti-Luce wall fastener is also commonly called a:

• Drop latch
• Trailer latch
• Anti-Luce fastener

Install it on the opposite side of the opening after the barrier has been fully extended and aligned.

Installation Position

1. Extend the barrier to the required width.
2. Hold the locking bracket against the opposite fixing surface.
3. Position the Anti-Luce fastener between the barrier slides.
4. Aim for a central position where practical.
5. Leave sufficient clearance between the fastener, bracket and moving slides.
6. Confirm that the locking bracket can drop completely over the fastener.
7. Mark and drill the fixing holes.
8. Secure the fastener to a suitable structural surface.
9. Extend and retract the barrier again to test the alignment.

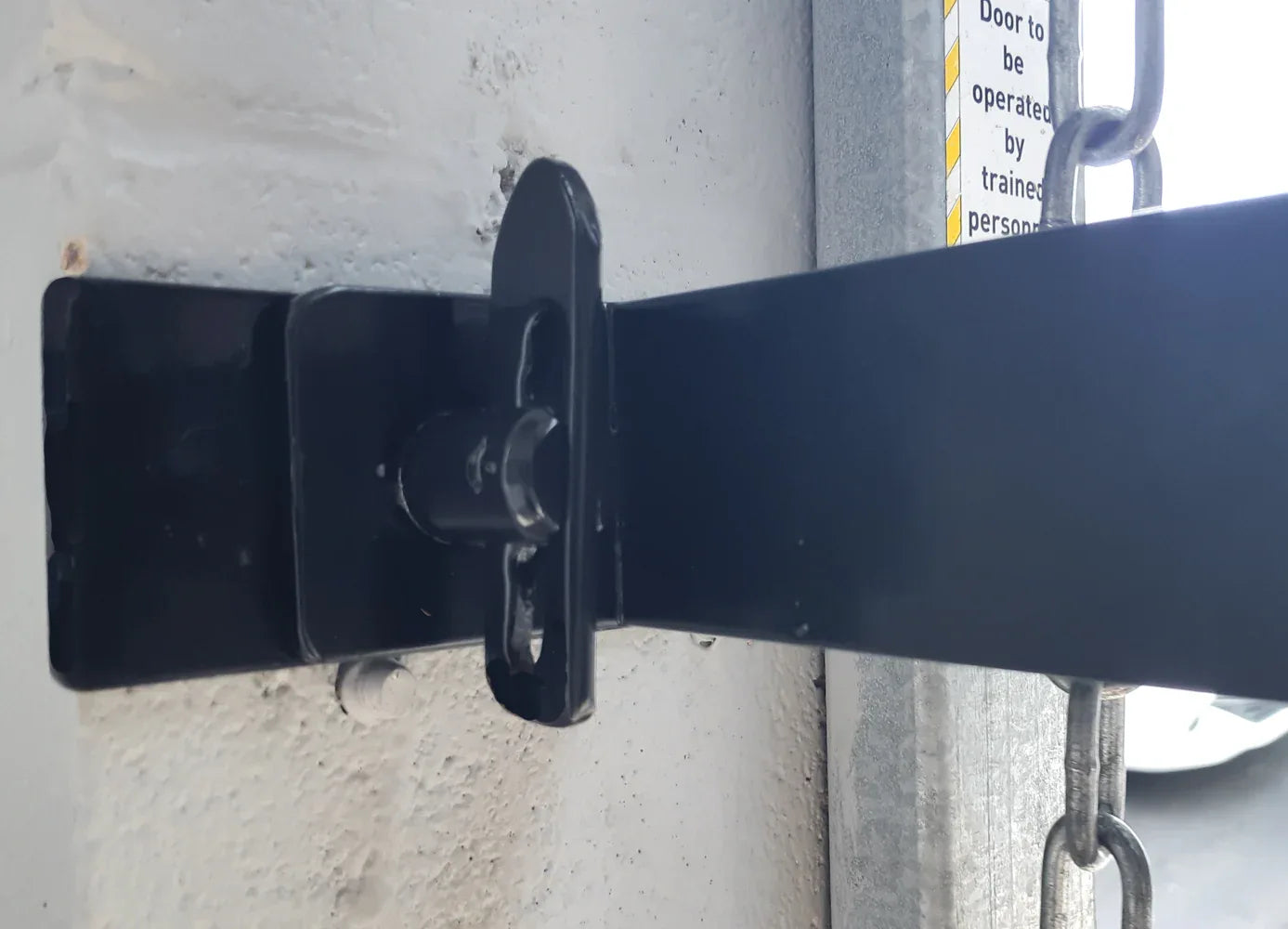

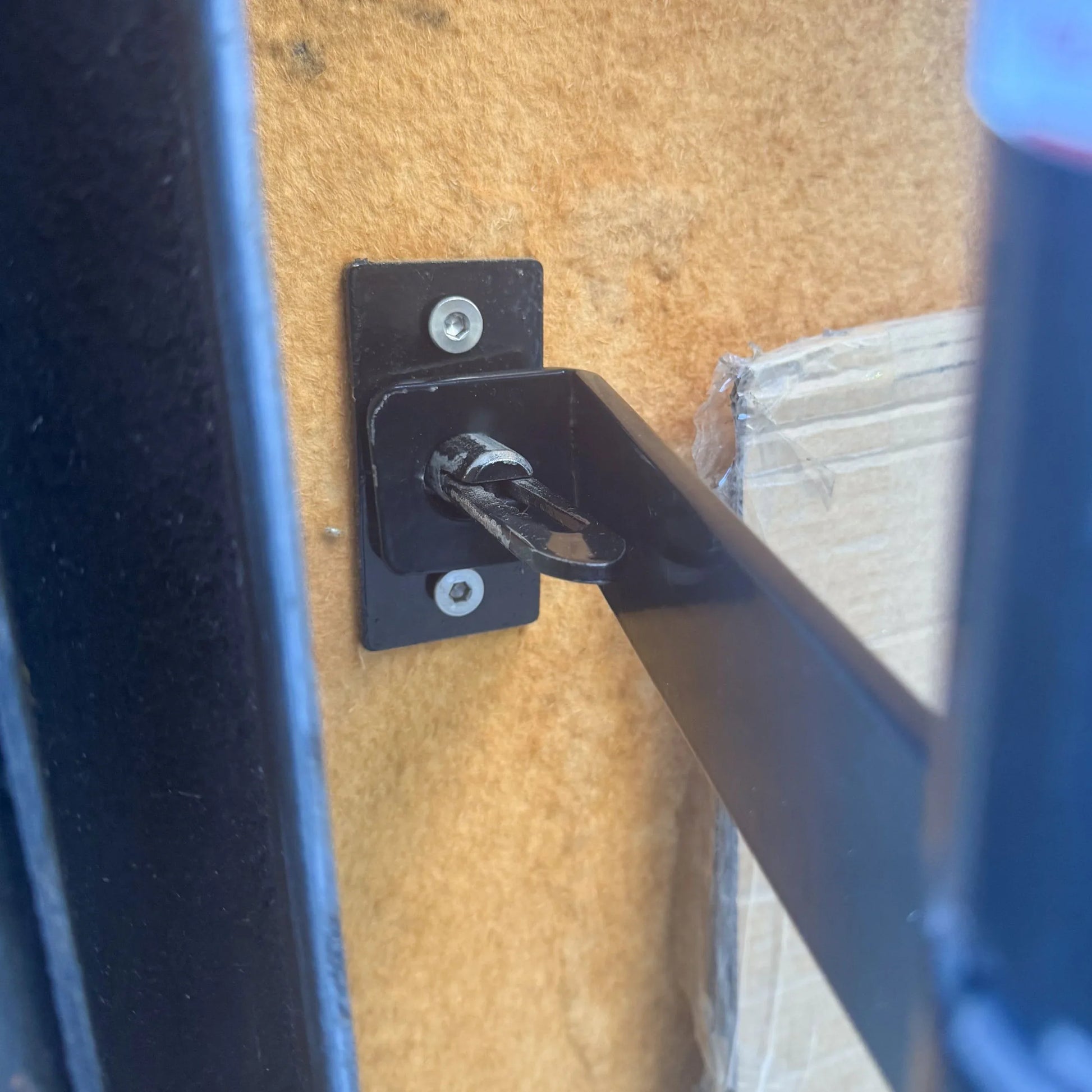

The locking bracket should fit over the Anti-Luce fastener and drop downward into the secured position.

---

Lock the Barrier

A padlock may be fitted through the lower section of the Anti-Luce fastener.

Use a padlock with a shackle no greater than 8mm in diameter.

For the strongest locking position:

1. Drop the locking bracket completely over the Anti-Luce fastener.
2. Insert the padlock through the lower locking hole.
3. Confirm that the bracket cannot be lifted upward.
4. Lock the padlock.
5. Test that the barrier remains secured.

Installing the padlock through a higher position may allow the bracket to lift slightly and create a gap. The lower locking position is recommended because it prevents the bracket from being raised without first removing the padlock.

---

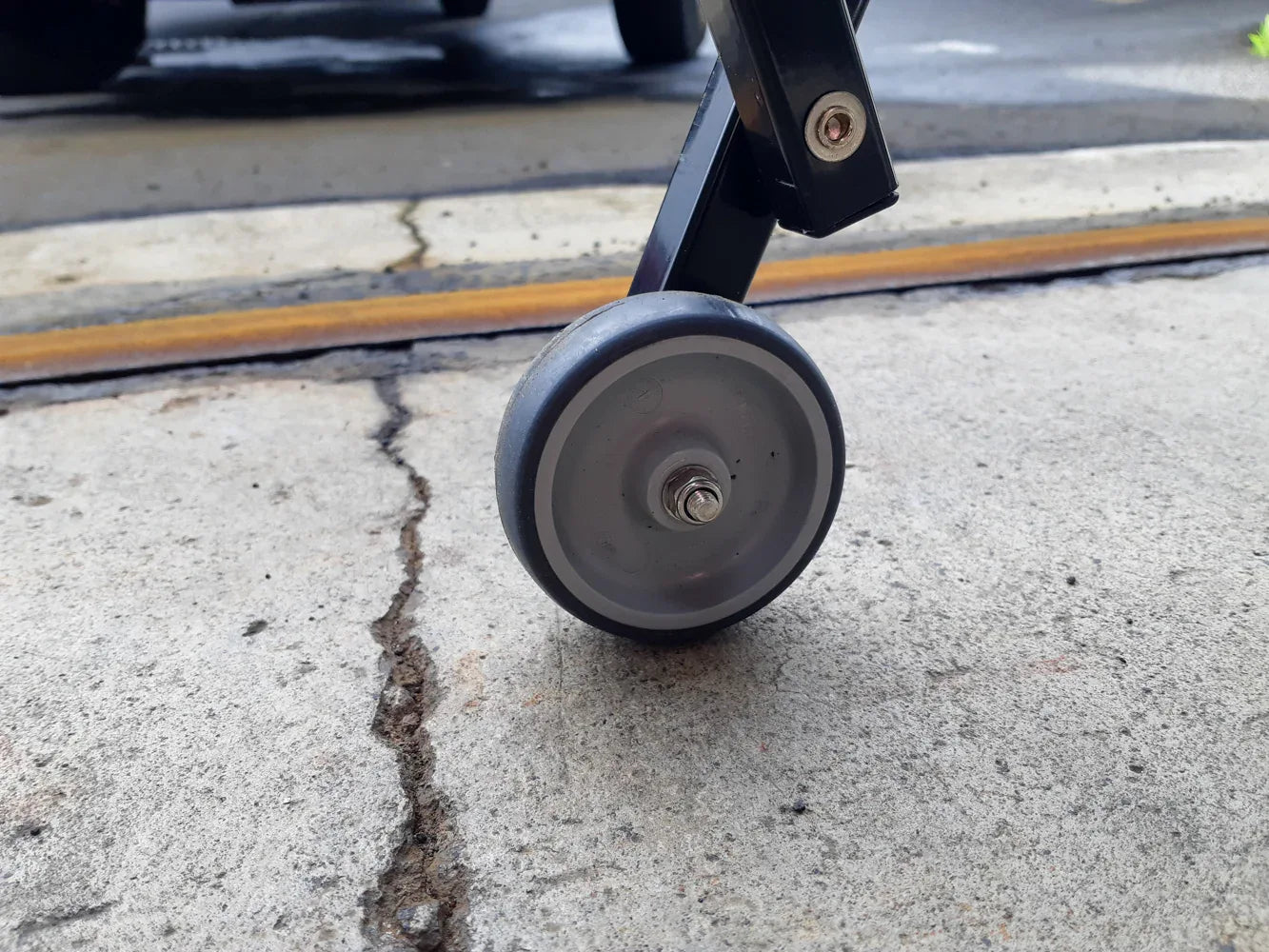

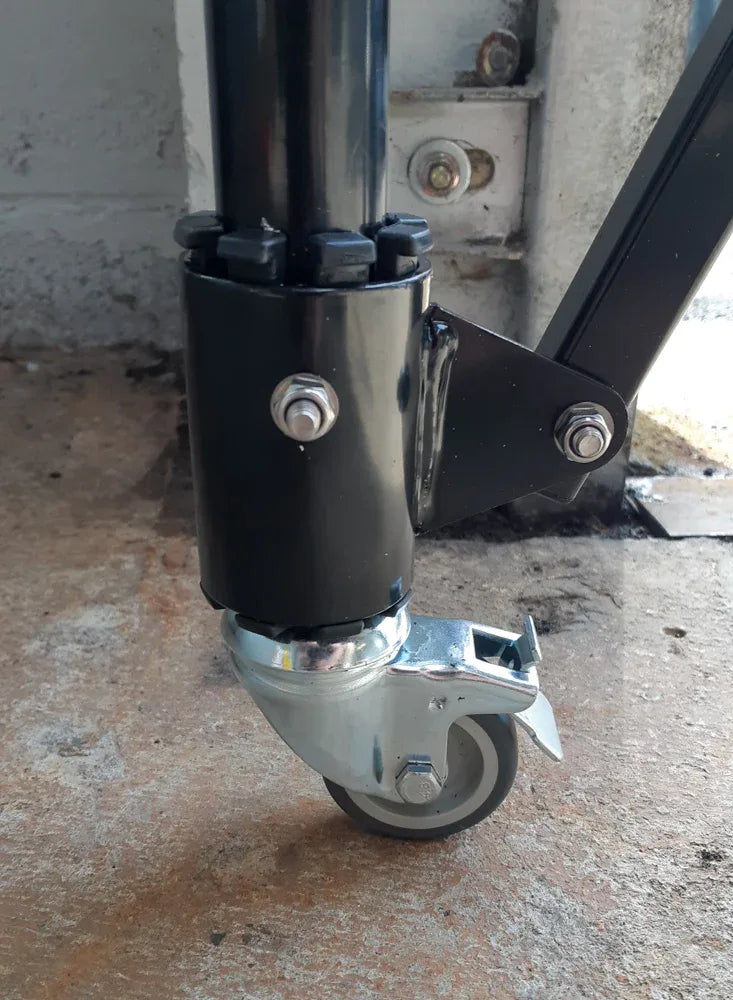

Step 8: Adjust the Swivel Castor

The swivel castor supports the moving side of the barrier.

Check that:

• The castor remains in contact with the floor
• It rolls smoothly across the full opening
• It does not carry excessive weight
• The barrier remains upright
• The foot lock operates correctly
• The barrier does not pull against the top or floor mounting bracket

Use the foot lock to help hold the barrier in position when required.

Uneven floors may affect how smoothly the barrier moves. Test the full travel distance before completing the installation.

---

Expandable Barriers vs Security Gates

A Yellow Expandable Barrier is primarily an access-control and pedestrian-management barrier.

It can help:

• Restrict entry into a work area
• Control pedestrian movement

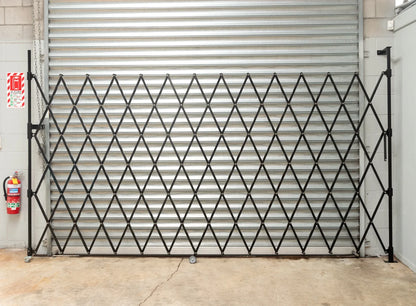

• Close off a roller-door entrance
• Create a visible boundary
• Temporarily restrict access
• Separate customers from operational areas

However, it is not designed to provide the same protection as a steel security gate.

The open diamond pattern is relatively large, and the aluminium barrier remains flexible. A person may still be able to reach through, move the barrier or access items positioned too close behind it.

For this reason:

• Do not install it directly in front of a window that requires burglary protection.
• Keep valuable items away from the barrier.
• Do not treat it as a substitute for a security grille.
• Do not rely on it as the only security measure for a high-risk entrance.

For stronger protection, consider a steel security gate such as Saftidor, which has narrower diamond openings and a more rigid steel construction. The transcript clearly distinguishes the expandable barrier as an access-control product rather than a full security gate.

---

Final Installation Check

Before using the barrier, confirm that:

• The opening was measured correctly
• All brackets are fixed into suitable structural material
• The barrier is straight
• The barrier does not interfere with the door or roller door
• All moving slides have sufficient clearance
• The castor moves smoothly
• The latching bracket operates correctly
• The Anti-Luce fastener is securely installed
• The padlock fits through the lower locking point
• The barrier extends and retracts without catching

Stop using the barrier if any bracket, rivet, castor or fixing becomes loose or damaged.

Need Installation Help?

Send DIY Xpanda:

• A clear photo of the entrance
• The opening width
• The required barrier height
• Photos of both fixing surfaces
• Details of whether the fixing surfaces are timber, concrete or another material

This will help us confirm the most suitable barrier size, fixing direction and installation position.

Check out the video here for a more detailed installation guide.
