Sibaya Steel Security Gate 770mm Wide x 1950mm High

The Sibaya Steel Security Gate is a practical and affordable way to secure smaller residential entrances. Its durable steel frame and coated finish provide everyday protection, while the lockable design provides additional peace of mind.

Suitable for homes, rentals, side entrances, and secondary access points, Valor offers a straightforward security upgrade that is easy to operate and built for everyday use.

For larger or higher-risk sites, Xpanda recommends our custom welded security gates for maximum strength.

• Width: 770mm | Height: 1950mm
• Mild steel, zinc plated + epoxy coated
• Type: Fixed swing gate
• Lockable

• Dependable Everyday Security:
  Solid steel frame provides effective protection for standard residential entrances.
• Visible Deterrent:
  Creates a clear physical barrier that helps discourage unauthorised access.
• Weather-Resistant Coating:
  Zinc plating and epoxy finish help provide durability under New Zealand conditions.
• Low Maintenance:
  Simpler than sliding or retractable gates, with no tracks to clean or moving parts to service.

• Homes and side entrances
• Rental properties
• Utility and service areas
• Holiday homes and baches

• Sibaya gate panel (steel, coated finish)
• L302 Lock (Lockable from both sides)
• Butt Hinges
• Lock Protection Plate
• Lock Keep
• Fixings
• Instruction guide

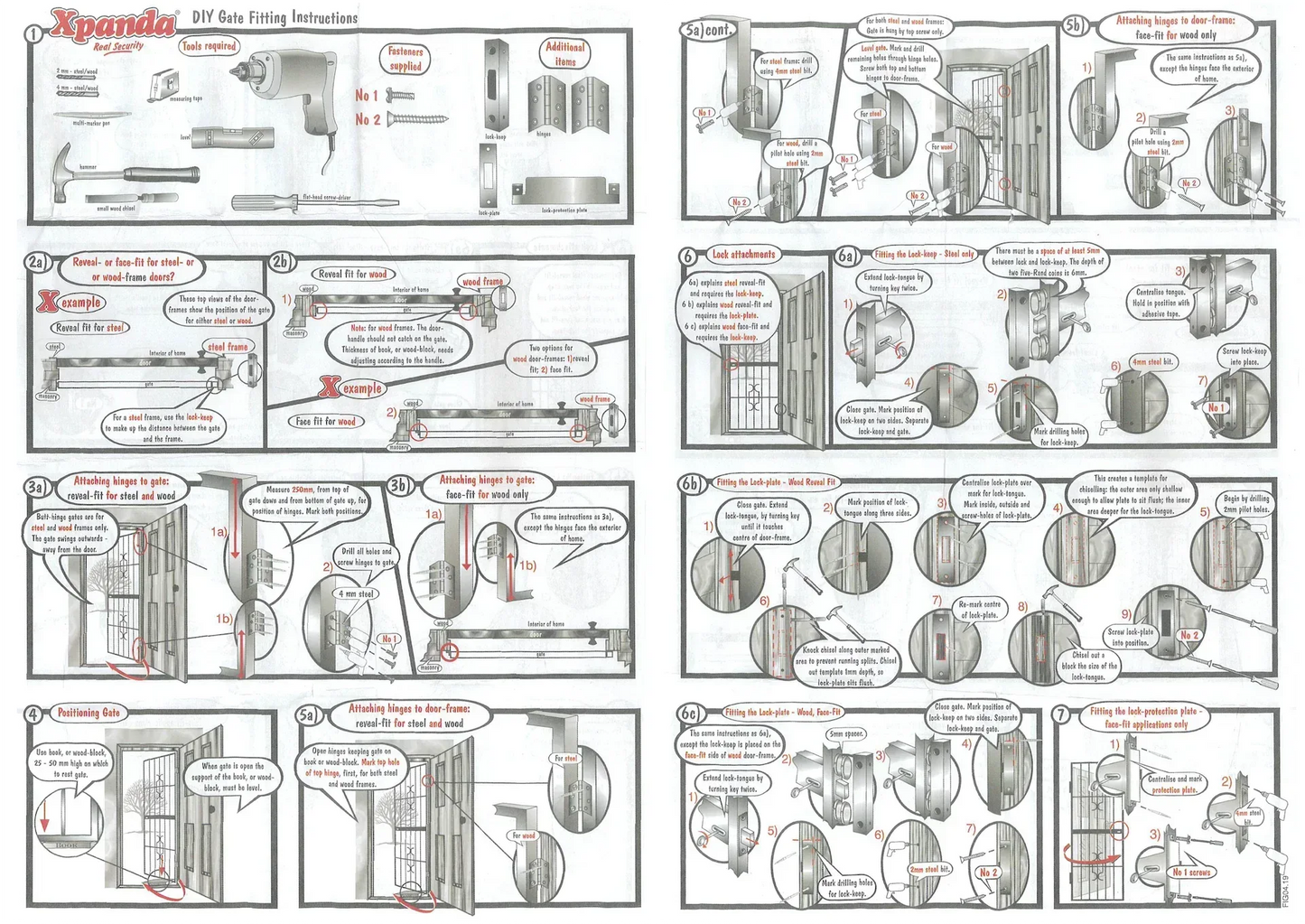

How to Install Fixed Swing Security Gates

Fixed Swing Security Gates are designed for straightforward installation using common DIY tools. Follow the steps below to ensure a secure fit and smooth operation.

Tools Required

🖊️ Marker or pencil

📏 Measuring tape

📐 Spirit level

🛠️ Multi-purpose drill

🔩 Appropriate drill bits for timber, steel, or masonry

🔧 Phillips and flat-head screwdrivers

🔧 Spanners or socket set

Step 1: Measure the Door Frame

Measure the inside width and height of the doorway where the gate will be installed.
Always measure carefully before installation to ensure the gate is suitable for the opening.

Step 2: Attach Hinges to the Gate

Attach the supplied hinges to the gate panel.
Leave the hinges slightly loose so minor adjustments can be made during positioning.

Step 3: Position the Lock-Keep

Position the lock-keep so it aligns with the lock tongue when the gate is closed.
Use masking tape or temporary fixings to hold the lock-keep in place while positioning the gate.
Allow approximately 5mm clearance between the lock tongue and lock-keep.

Step 4: Position the Gate

Place the gate into the doorway.
For sill-fix (reveal-fit) installations, position the gate within the frame.
For face-fix (face-fit) installations, position the gate against the face of the frame.
Use a timber block or spacer beneath the gate to support it during installation.

Step 5: Check Alignment

Use a spirit level to ensure the gate is straight and square.
Adjust hinge positions if required.
Once satisfied with the alignment, mark the hinge fixing positions.

Step 6: Secure the Hinges

Remove the gate if necessary.
Drill pilot holes at the marked locations.
Secure the hinges using the supplied fixings appropriate for the installation surface.
Reinstall the gate and confirm smooth operation.

Step 7: Install the Lock-Keep

Close the gate and verify the lock tongue aligns correctly with the lock-keep.
Mark the fixing locations.
Drill pilot holes and secure the lock-keep.
Check that the gate locks and unlocks correctly.

Step 8: Install the Lock Protection Plate

Position the lock protection plate over the lock area.
Mark fixing locations.
Drill pilot holes and secure the plate using the supplied screws.
This helps protect the lock area from tampering and forced entry.

Step 9: Final Adjustment

Open and close the gate several times.

Check that:

✔ Gate opens smoothly

✔ Gate closes correctly

✔ Lock engages securely

✔ Hinges are firmly attached

✔ Lock protection plate is secure

Make any minor adjustments as required.

Your Fixed Swing Security Gate is now ready to provide an additional layer of security for your home, rental property, garage, or business.
Click here to download the installation guide.
