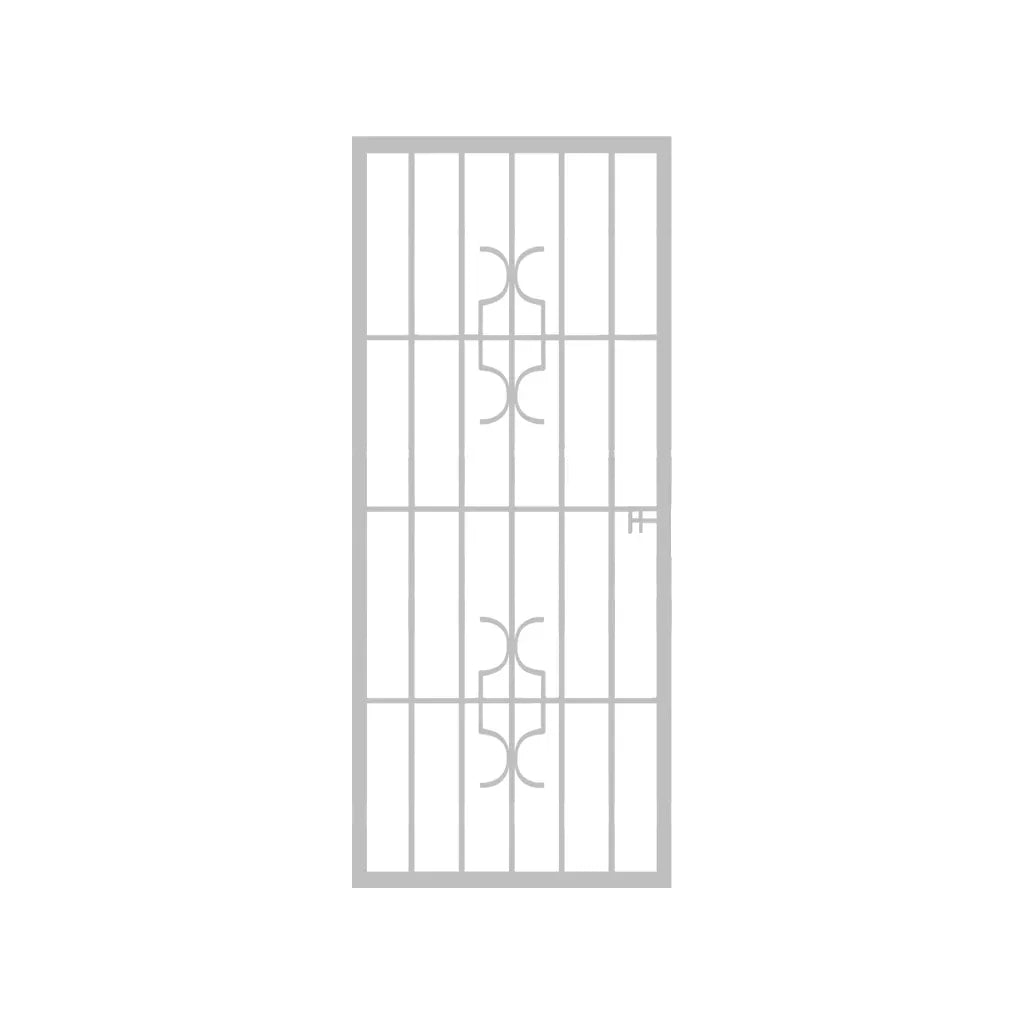

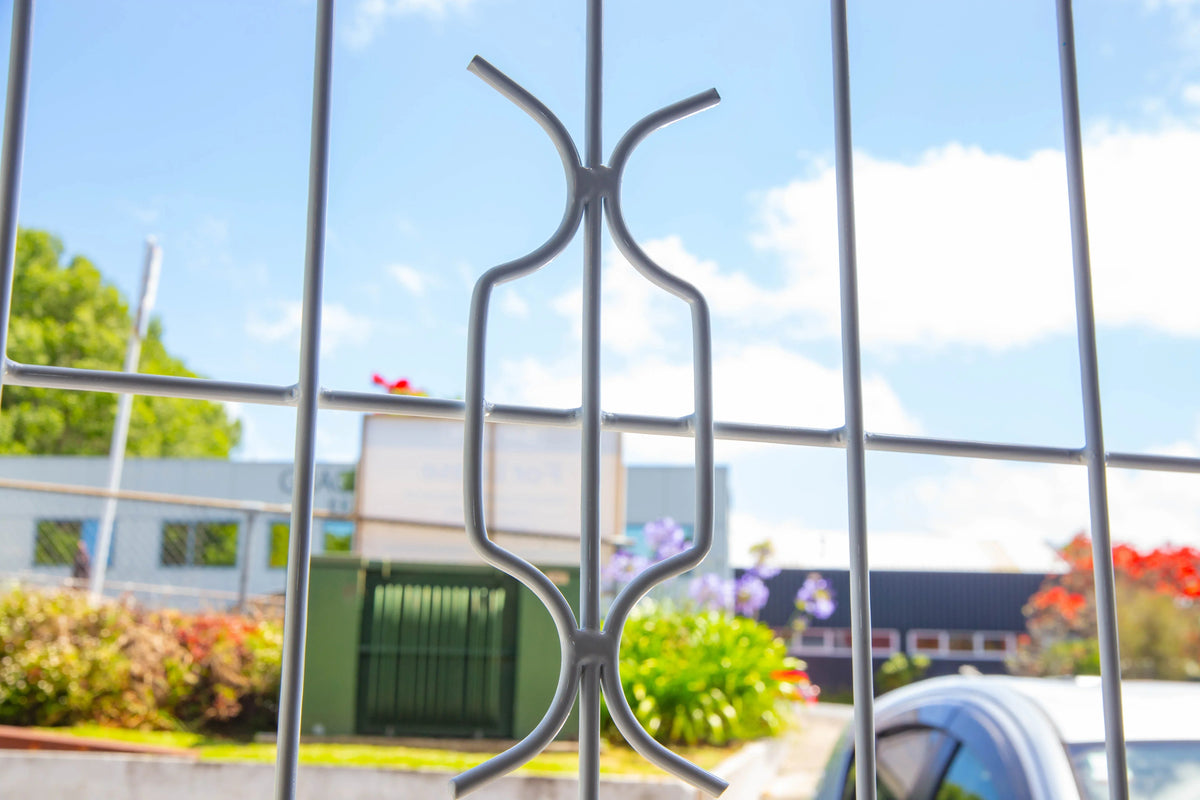

Homestyle Steel Shootbolt Security Gate 770mm Wide x 1950mm High

The Homestyle Steel Shootbolt Security Gate provides a practical and affordable way to improve security around residential properties. Designed as a fixed swing security gate, it creates a strong visible barrier while remaining simple to operate and maintain. The zinc plated and coated steel construction provides durability for everyday use, making it suitable for homes, rentals, side entrances, and pedestrian access areas.

Built for straightforward installation and reliable daily performance, it offers a practical security upgrade without the complexity of custom systems.

For larger or higher-risk sites, Xpanda recommends our custom welded security gates for maximum strength.

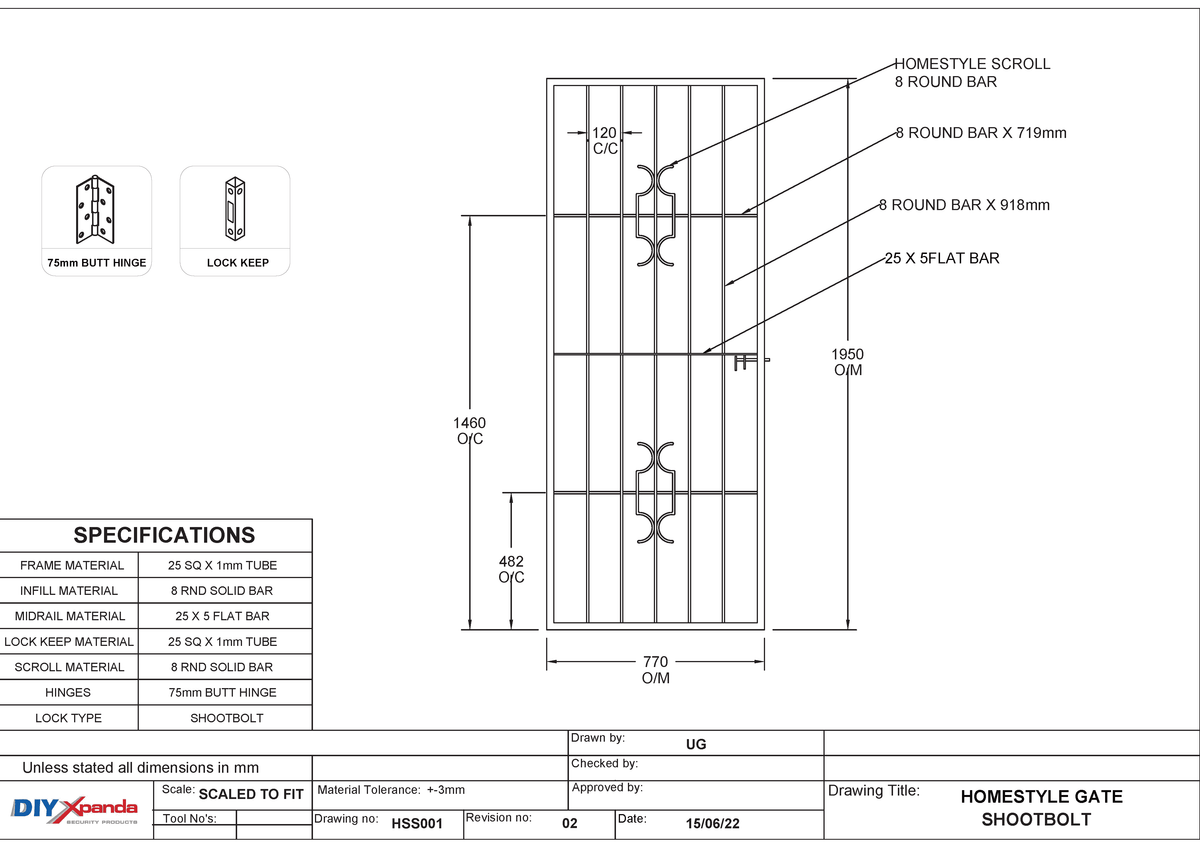

• Width: 770mm | Height: 1950mm
• Mild steel, zinc plated + epoxy coated
• Type: Fixed swing gate
• Lock type: Shootbolt

• Practical Everyday Security
  A simple and reliable security gate designed to help protect side entrances, walkways, and residential access points.

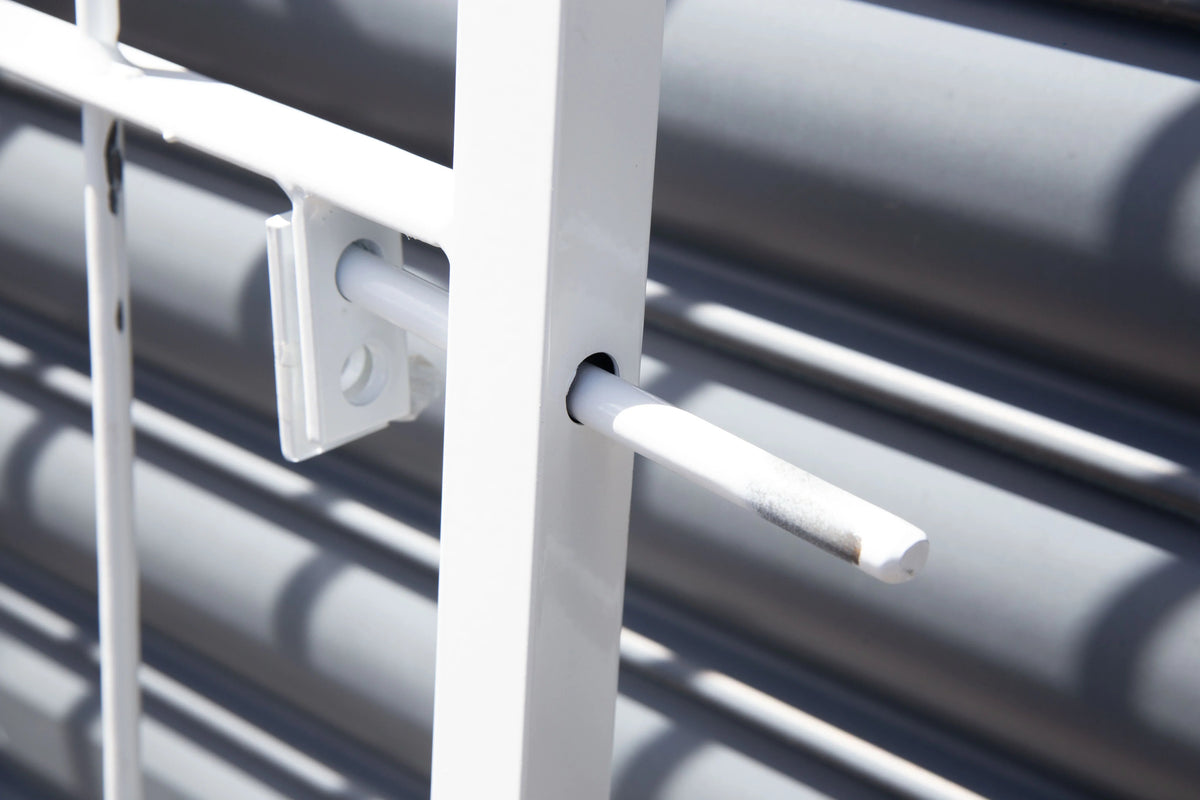

• Secure Shootbolt Locking
  Strong mechanical locking system provides dependable everyday protection.
• Weather-Resistant Finish
  Zinc plated and epoxy coated finish helps resist wear and corrosion under New Zealand conditions.
• Low Maintenance Design
  Fixed swing design with no sliding components to wear or jam, helping keep long-term maintenance simple.

• Homes and rental properties
• Side entrances and pedestrian accessways
• Gardens and outdoor walkways
• Holiday homes and baches
• Utility areas and secondary entrances

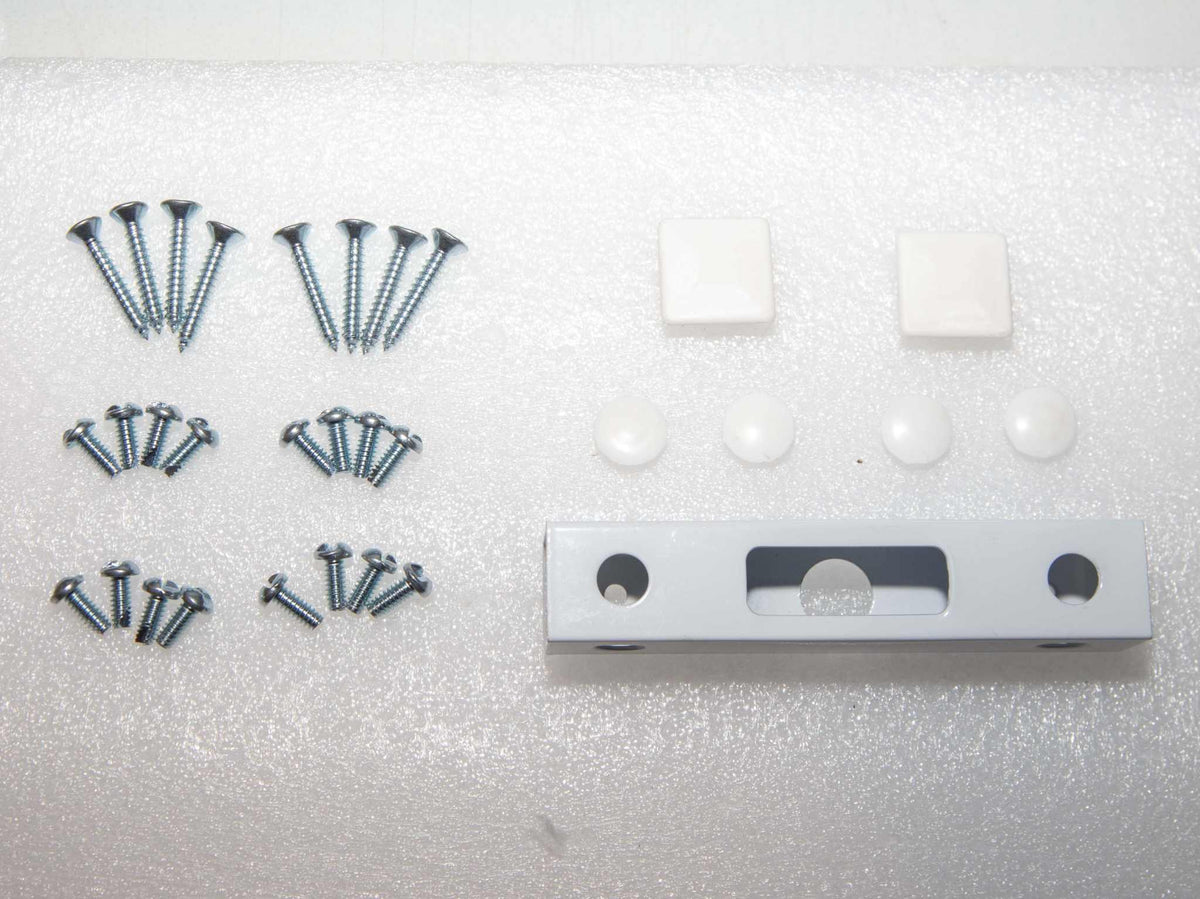

• Homestyle gate panel (steel, coated finish, 770mm wide)
• Shootbolt lock
• Butt Hinges
• Lock Protection Plate
• Lock Keep
• Fixings
• Instruction guide

Please click here to download the pdf version.

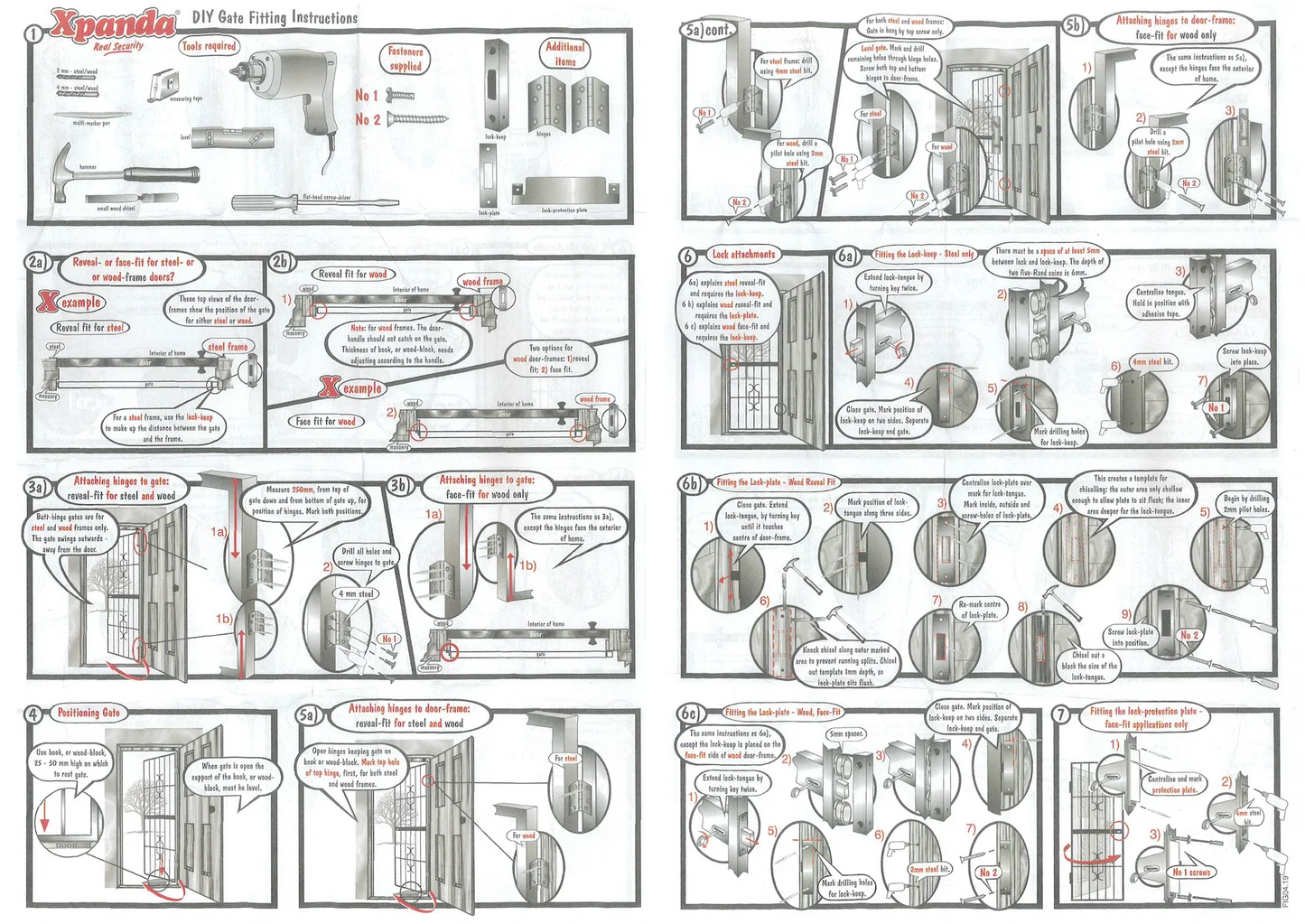

How to Install a Homestyle Security Gate

The Homestyle Steel Shootbolt Security Gate is designed for straightforward DIY installation using basic tools. Follow the steps below to install your gate securely and ensure smooth operation.

🔧 Tools Required

• 🛠️ Drill and drill bits (timber or masonry)
• 🔩 Screwdriver
• ✏️ Pencil or marker
• 📏 Measuring tape
• 📐 Spirit level
• 🧱 Wall plugs and screws (included)

Step 1: Position the Gate Frame

• 🚪 Hold the gate frame in position within the doorway.
• 📐 Use a spirit level to ensure it is straight and plumb.
• 🔄 Confirm the gate can swing open freely without obstruction.
• ✏️ Mark all fixing-hole positions.

Step 2: Drill the Fixing Holes

• 🧱 Remove the gate and drill holes at the marked locations.
• 🔩 Insert wall plugs if fixing into concrete, brick, or blockwork.
• ✔️ Remove any dust or debris before installation.

Step 3: Secure the Hinge Side

• 🔧 Reposition the gate frame.
• 🔩 Fix the hinge side securely using the supplied screws.
• ✔️ Check that the gate swings smoothly before continuing.

Step 4: Align and Secure the Locking Side

• 🚪 Close the gate and check alignment.
• 🎯 Ensure the shootbolts align with their intended locking positions.
• 🔩 Secure the lock-side frame firmly.
• ✔️ Confirm the gate remains level after tightening.

Step 5: Install the Shootbolt Receivers

• ↕️ Extend the shootbolts to identify the top and bottom receiver locations.
• ✏️ Mark the receiver positions.
• 🔩 Install the receivers at the marked points.
• ✔️ Verify that the shootbolts engage and retract smoothly.

Step 6: Install the Handle and Lock

• 🔐 Fit the handle and lock assembly using the pre-drilled holes.
• 🔧 Tighten all fasteners securely.
• ✔️ Test the locking and unlocking functions.

Step 7: Final Checks

• ✔️ Gate opens and closes smoothly.
• ✔️ Shootbolts engage fully without excessive force.
• ✔️ All screws and fixings are secure.
• 🛢️ Apply a light lubricant to hinges and locking components if required.

Installation Complete

Your Homestyle Security Gate is now ready for use. Regularly inspect hinges, locks, and fixings to ensure continued performance and security.
