Expandable Barrier Yellow 8m Wide 1.5m High (F)

The DIY Xpanda Expandable Pedestrian Barrier is a practical solution for controlling access and improving safety in busy environments. Designed primarily for crowd and pedestrian management, it is ideal for temporary or semi-permanent zoning in commercial, retail, and industrial spaces.

Its lightweight aluminium frame and rolling castor make it easy to deploy, adjust, and secure. While it offers a strong visual deterrent, it should be considered a safety and access-control product rather than a high-security gate.

*For customers needing certified security protection against break-ins, Xpanda recommends our Expanding Security Grilles, Fixed steel security gates or custom welded solutions.

• Adjustable width: 680mm – 8000mm
• Height: 1500mm | Thickness: 100mm
• Frame: 25mm square aluminium tubing
• Stainless steel riveted fixings
• Locking, top, and floor brackets included
• Swivel castor with foot lock for mobility

• Safety & Access Control:
  Purpose-built for pedestrian management, crowd control, and restricting access to hazardous or restricted areas. Not designed as a high-security barrier.
• Quick Setup & Mobility:
  Lightweight but durable construction makes it easy to install, reposition, or fold away when not in use.
• Clear Visual Deterrent:
  Provides an obvious barrier that discourages entry. Also used in some cases for secondary purposes such as light-duty window protection against wind-blown debris.

• Warehouses and factories
• Retail spaces and supermarkets
• Gyms, libraries, and public facilities
• Offices and architectural firms
• Home driveways (for traffic/pedestrian control, not vehicle security)

• Expandable barrier panel (aluminium tubing)
• Stainless steel riveted fixings

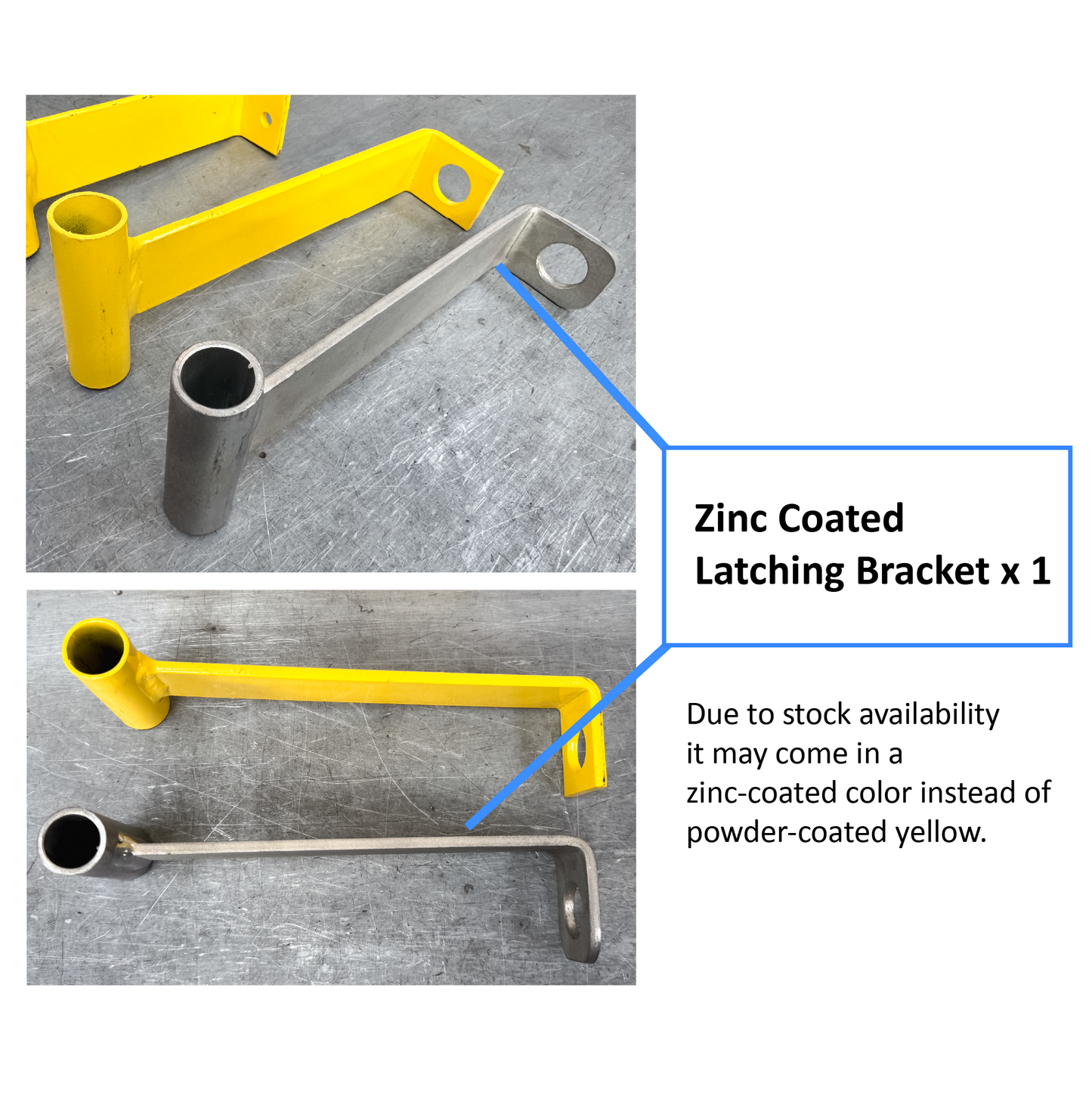

• 200mm locking bracket
• 200mm top fixing bracket
• 130mm floor fixing bracket (fixed to floor)
• 1 x Anti-Luce wall fastener
• Swivel castor with foot lock
• Note: Screws/fixings not included

Installing a Pedestrian Barrier is straightforward. Here’s a step-by-step guide:

1. Choose the Size: Measure the width and height of your entry points to determine the appropriate size for your Pedestrian Barrier.

2. Install the Right Side: Fix one side of the barrier to the wall using the included mounting brackets and fixings.

3. Add a Locking System: Equip the other side with an additional locking mechanism, such as a padlock, for enhanced security.

4. Refer to the Photo: In the accompanying photo, the right side is attached to the wall with brackets (shown in silver in the photo, but the actual brackets will be yellow). The barrier expands to the left side, where a drop latch is installed for locking.
