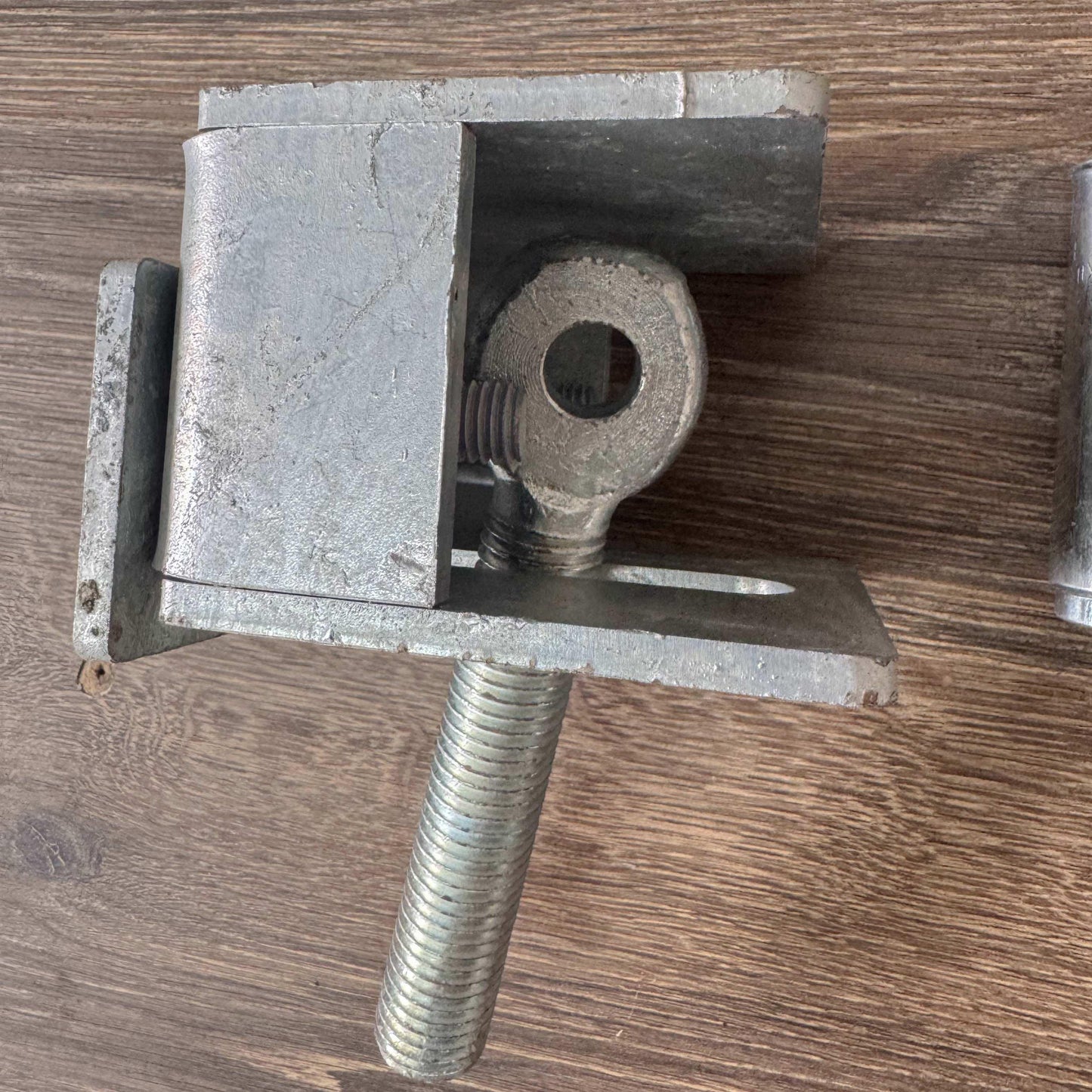

RDF Roller Shutter Protection Lockdown with Removable Anchor

The RDF Roller Shutter Lockdown with Removable Anchor delivers the same robust protection as the fixed version but with added flexibility. The removable anchor bolt allows users to unlock and fully clear the doorway when security isn’t required, making it a versatile choice for roller shutters that need both strength and adaptability.

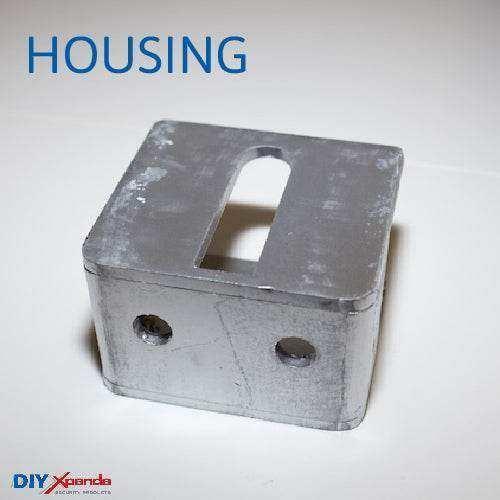

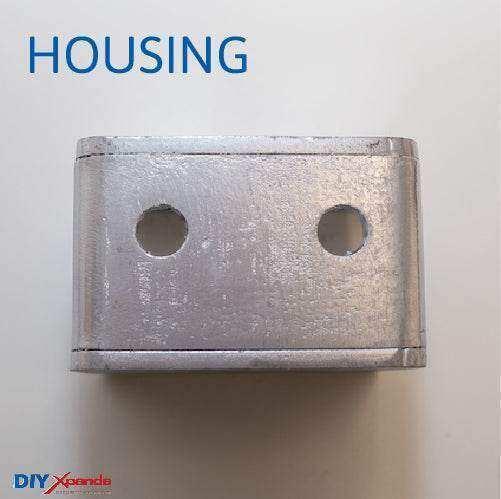

• Heavy-duty 5mm laser-cut steel housing
• Hot-dipped galvanised for corrosion resistance
• M20 removable eye anchor bolt (withstands up to 10 tons of force)

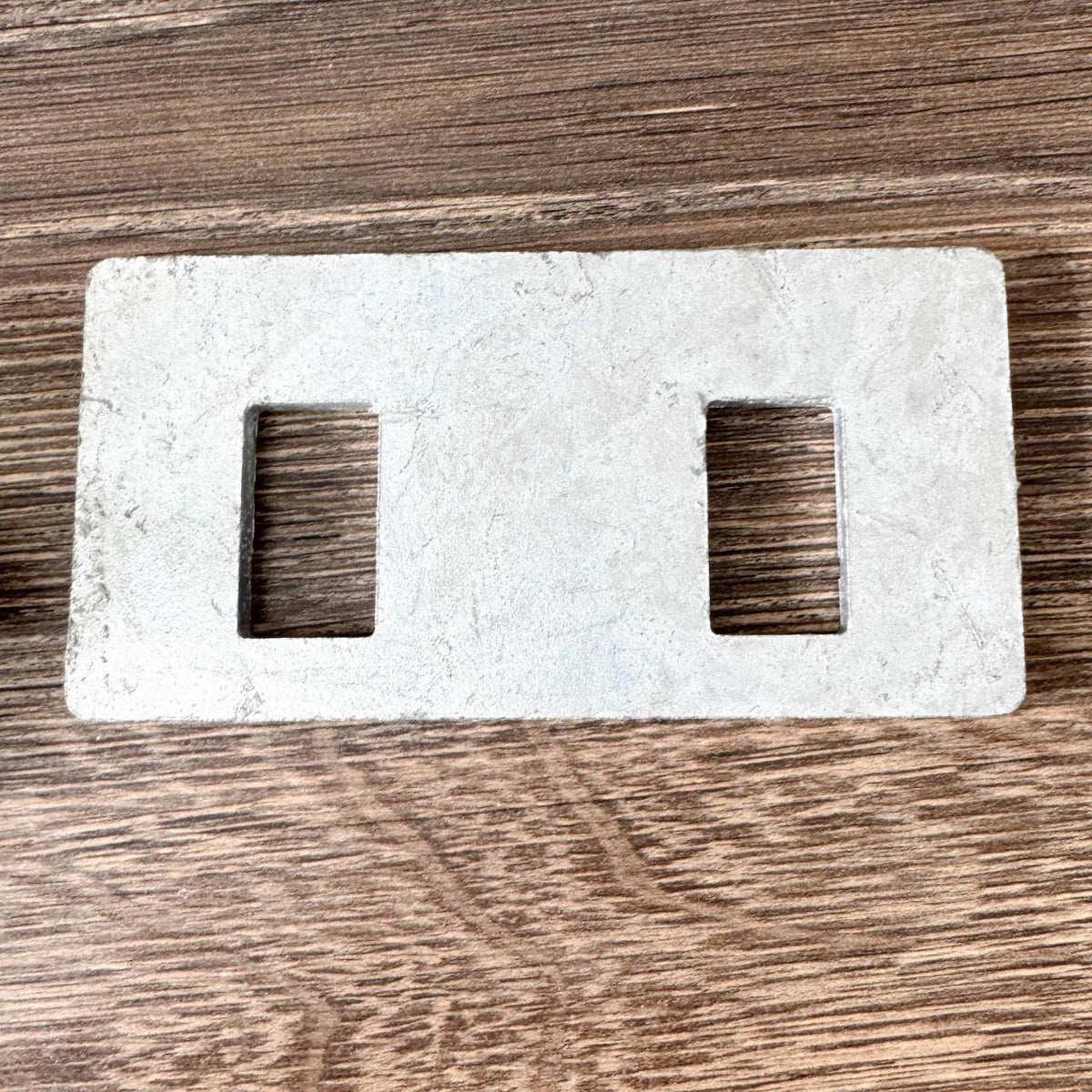

• 12mm through-bolts, backing plate, and washers included

• Strong & Flexible Security:

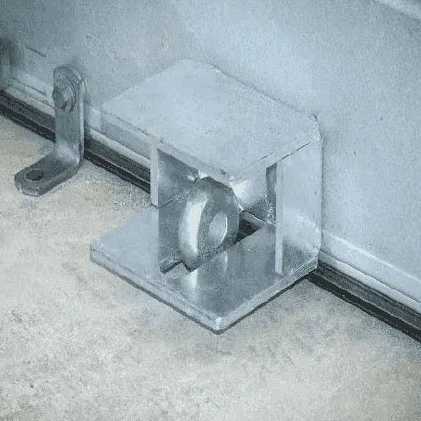

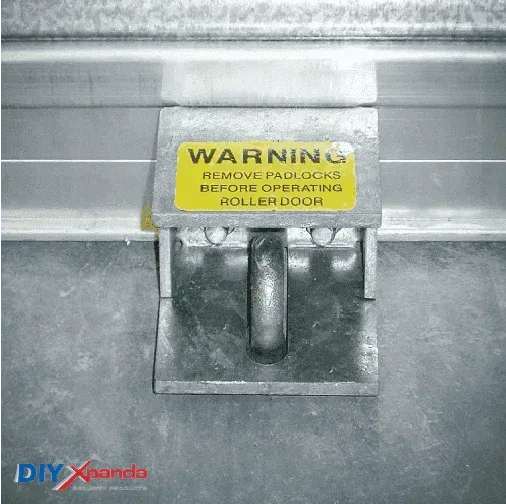

  Locks roller shutters securely at ground level, but with the option to remove the anchor bolt when not in use.
• Tamper-Resistant Housing:
  Protects padlocks and anchor from bolt cutters, crowbars, and impact attacks.
• Removable Anchor Convenience:
  Provides high-level security during lockdown, but can be detached for unobstructed access or easier cleaning.
• Durable Construction:
  Galvanised steel housing ensures long-term corrosion resistance in outdoor environments.

• Residential garages
• Workshops and storage areas
• Rental properties and holiday homes
• Retail roller shutters

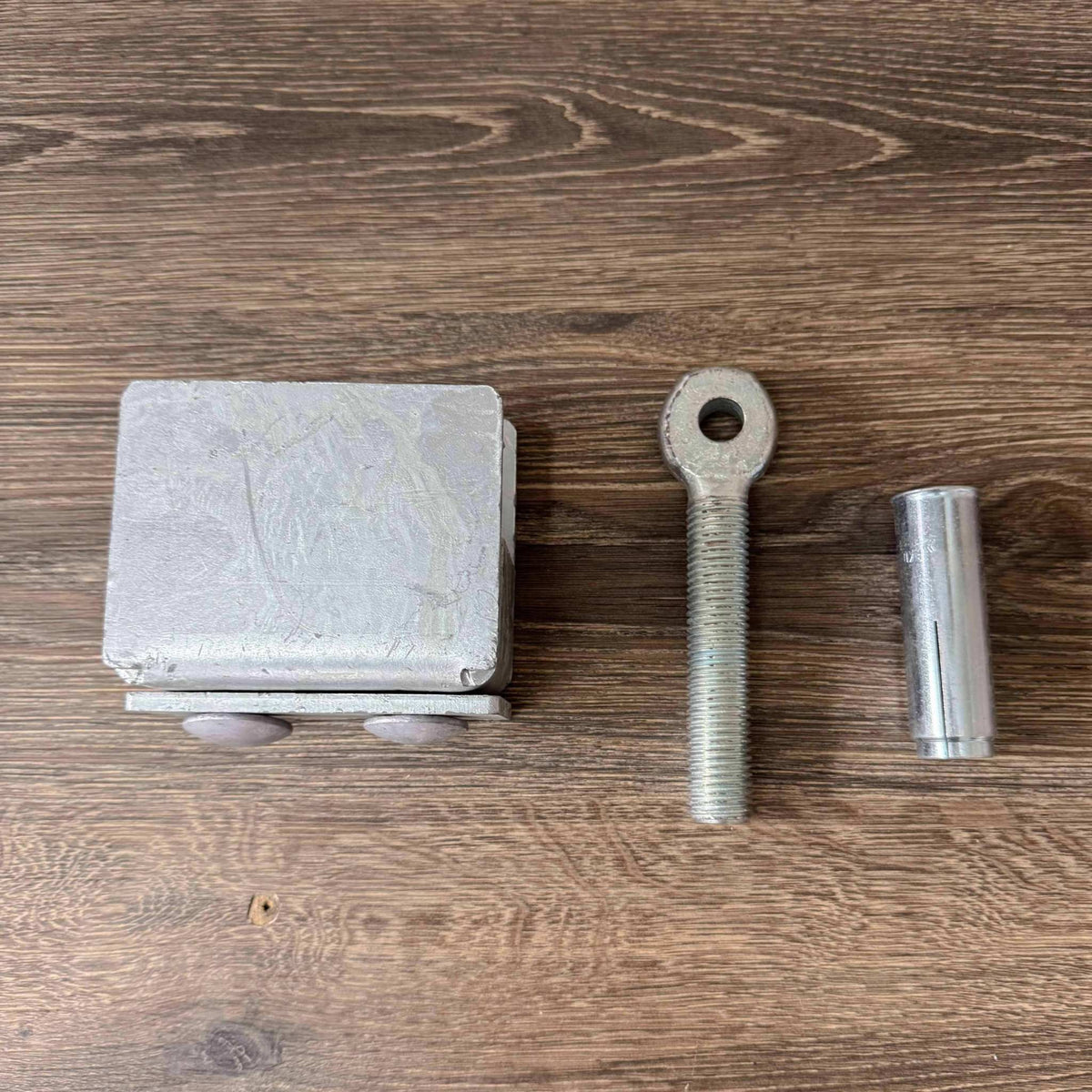

RDF Removable Anchor NZ | Roller Door Security Lock

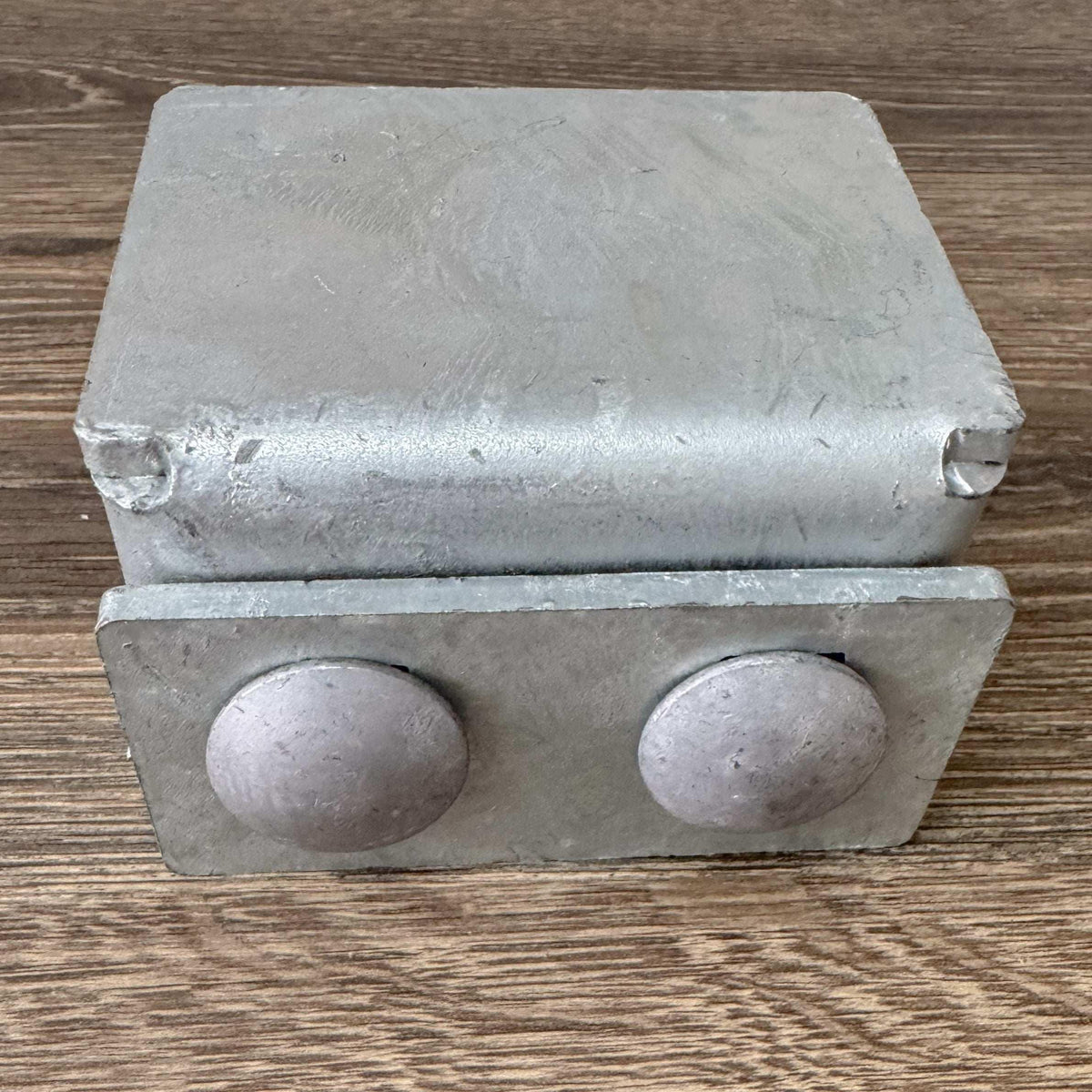

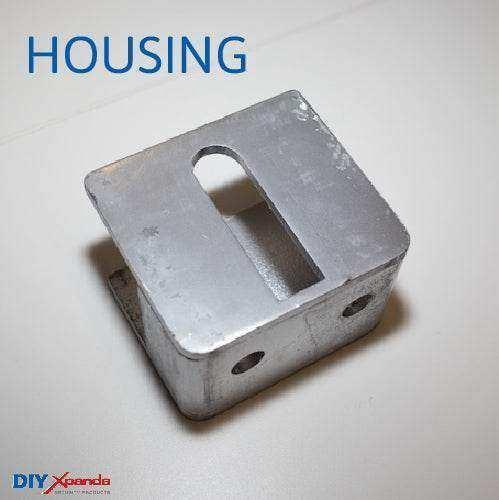

• Galvanised steel housing

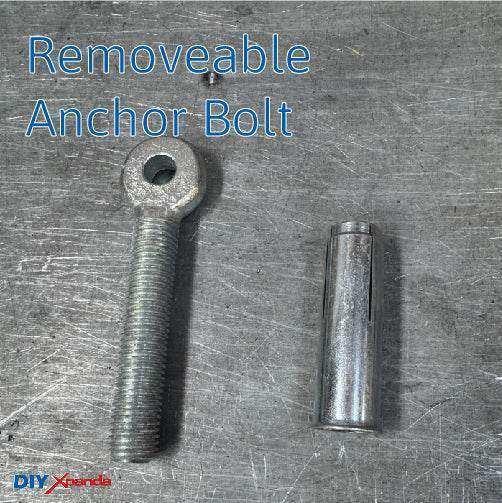

• Removable M20 eye anchor bolt

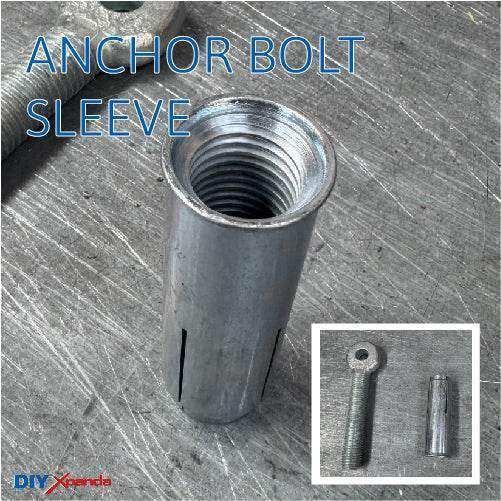

• Anchor Bolt Sleeve

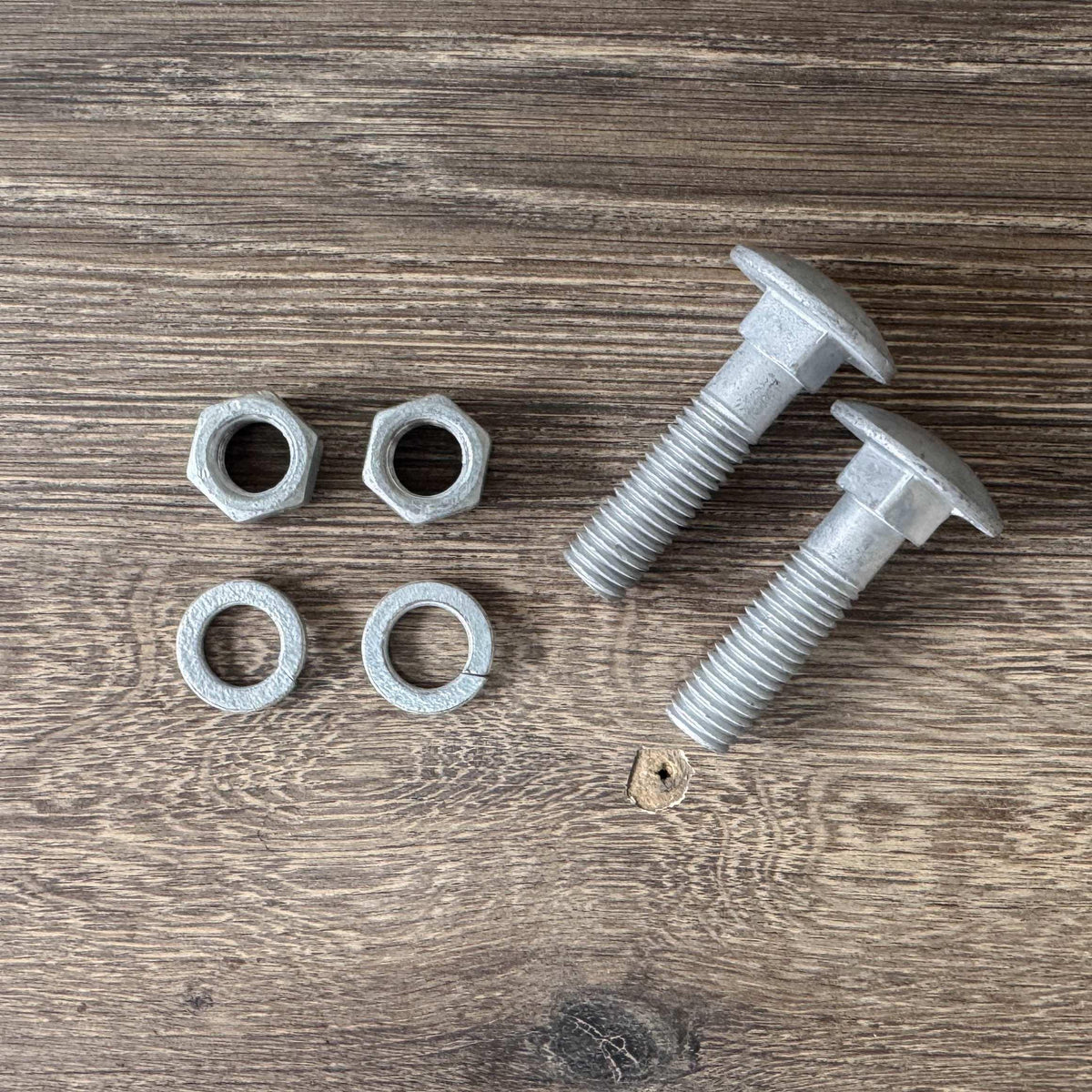

• 12mm through-bolts, backing plate, washers







• Installation instructions (video available online)


How to Install RDF Roller Shutter Protection Lockdown





Tools Required

• Marker pen – To mark drilling locations on the roller shutter and concrete floor.
• Electric drill – To drill fixing holes in the roller shutter.
• Hammer drill – To drill the anchor hole in the concrete floor.
• Metal drill bits – Sized to suit the supplied through-bolts.
• 25mm masonry drill bit – For the removable version's anchor sleeve (81mm drilling depth).
• Smaller masonry drill bit (optional) – For drilling a pilot hole.
• Hammer and setting tool – To install and secure the anchor sleeve.
• Spanner or socket wrench – To tighten the housing's nuts and bolts.

Note: For the fixed version, use the masonry drill bit size and drilling depth specified for the supplied M20 eye anchor bolt. A 25mm hole is only specified for the removable version.

Step 1: Position the Housing

Close the roller shutter completely and determine the location where the RDF housing will be installed.

The housing should be positioned so the anchor aligns correctly with the bottom rail of the roller door.

Step 2: Secure the Housing

Drill the marked holes in the roller shutter door.

Position the RDF housing over the drilled holes and secure it using the supplied through-bolts, backing plate, nuts, and washers.

Tighten all fixings firmly to ensure the housing is securely attached to the door.

A firmly secured, visibly robust housing can also act as a deterrent to potential intruders.



Step 3: Mark the Drilling Location for the anchor bolt

Using the housing as a guide, mark the location for the anchor sleeve hole.

Double-check alignment before drilling to ensure the anchor engages smoothly when the door is locked.

Step 4: Drill the Anchor Hole

The drilling requirements depend on which RDF version you are installing.

For the Removable Version:

• Drill a hole for the sleeve housing using a 25mm drill bit.
• The recommended drilling depth is 81mm, approximately the same depth as the sleeve housing.
• You may start with a smaller pilot hole if preferred.

For the Fixed Version:

• Drill a hole at the marked position to accommodate the fixed anchor bolt.
• Ensure the hole size and depth match the specifications of the supplied anchor bolt.

Step 5: Install the Sleeve Housing or Anchor Bolt

For the Removable Version:

• Insert the sleeve housing into the drilled hole.
• Ensure the sleeve housing is properly seated and aligned to receive the removable anchor bolt.

For the Fixed Version:

• Install the fixed anchor bolt directly into the prepared hole.
• No sleeve housing is required for the fixed version.



Step 6: Test the Locking System

Insert the anchor and verify that:

• The anchor engages smoothly
• The roller door cannot be lifted
• The locking system operates correctly
• All fixings remain secure





Frequently Asked Questions

Do you start with a smaller pilot drill bit?

You can use a smaller drill bit to mark the location before drilling.

However, in most installations we drill directly using the required 25mm drill bit.

How deep should the hole be drilled for the anchor sleeve?

The hole should be drilled to approximately the same depth as the anchor sleeve.

For the RDF system shown in the video, the recommended drilling depth is 81mm.

Suitable Applications

• Residential garages
• Workshops
• Storage units
• Rental properties
• Retail roller shutters
• Commercial roller doors

Need Help?

If you're unsure whether the RDF system is suitable for your roller door, send us:

• A photo of the opening
• The door width
• The door type

We can help determine the most suitable roller door protection solution for your property.
