Clear Guard

Polycarbonate Security Bars

Transparent Polycarbonate Window Protection Guard

Easy order – 4 steps

1

Calculate area

Enter all window sizes (mm) to get your total m².

2

Get suggestion

We recommend the best bundle (A–H) for your total area.

3

Select bundle

Choose the recommended option and quantity, then add to cart.

4

Send sizes

On the cart page, paste each window’s width × height into the notes.

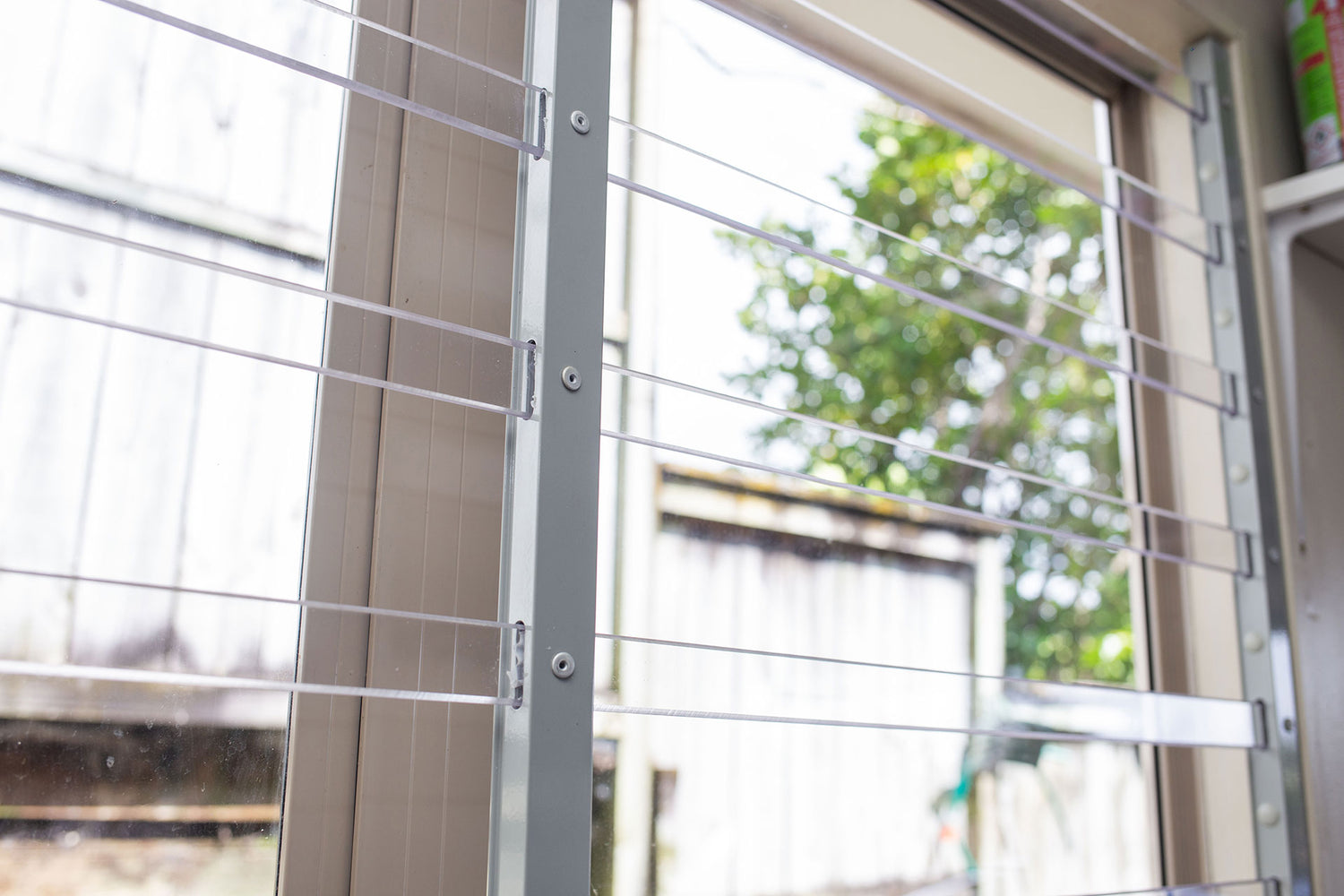

Clear Guard is a DIY-friendly security solution designed for homeowners and small businesses who want to upgrade window protection without bars, grilles, or major tradeswork.

  • Unobstructed views – ~95% light transmission.
  • Serious security – 6 mm polycarbonate slats in a sturdy aluminium frame.
  • Sleek design – modern look with colour-matched frames.
  • DIY ready – install with basic tools.
  • Low maintenance – no rust or corrosion.

Clear Guard DIY Calculator

Tip: enter window sizes in millimetres (mm). We convert to m² automatically.

You need to order

Run the calculator to see your suggested bundle(s) and estimated pricing.

Choose Your Bundle

  • Clear-Guard Polycarbonate Security Bars - Clear Guard, Commercial, Doors, Gates, Residential, Window Bars, Windows - A DIY XPANDA
1 21
Bundle
$340.00 NZD
$340.00 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details

Specifications

  • Pitch (slat spacing): 105 mm
  • Maximum size: up to 3 m (H) × 3 m (W)
  • Maximum span of 800 mm between supports
  • Weather rating: Indoor use
  • Fixing method: Sill fix
  • Colour: Grey

What's Included

  • Polycarbonate slats: 6 mm thick × 30 mm wide
  • Vertical Vertical Brackets for Left and Right Sides
    (Additional support bracing if the coverage is wider than 600mm)
  • Bracket screws (for securing slats into the brackets)
  • Mounts
  • Fixing Caps
  • Note: Fixings to attach the bracket (frame) to the building are not included

Installation Guide

  1. Prepare Tools & Materials
    - Battery drill
    - 5mm drill bit
    - Hand or battery riveter
    - Screws (for wood or concrete, depending on your wall/frame).
  2. Install the First Side Frame
    - Position the side piece with large holes facing inside, small holes against the frame.
    - Fix it with screws
    - Make sure rivet points are accessible.
  3. Install the Opposite Side Frame
    - Line it up parallel with the first side.
  4. Fit the Middle Support (if needed)
    - Insert the support with brackets, top and bottom to take up space.
  5. Insert the Slats
    - Peel protective film at the ends before installing.
    - Slide each slat into one side, then clip/plug into the opposite side.
    - Peel the remaining film after installation.
  6. Finish Off
    - Plug screw holes.
    - Wipe off dust and static for a clear finish.

Custom Colour Option

Upgrade your Clear Guard order with a professional powder-coat finish in your choice of colour.

  • Flat fee of $150 applies once per order (not per item).
  • Durable, UV-resistant, and long-lasting finish.
  • A wide range of colours available, choose from here.

Default Clear Guard colour is Grey (free). Select this upgrade only if you would like a custom colour finish.

View full details
Clear-Guard Polycarbonate Security Bars - Clear Guard, Commercial, Doors, Gates, Residential, Window Bars, Windows - A DIY XPANDA

What Happens Next?

The next page (cart) will list your selected bundle items. In the Order Notes, paste the sizes for each window (Width × Height in mm) so we can cut everything to fit. Then proceed to checkout.

Need custom or multi‑panel layouts? Add a note and we’ll follow up before cutting.
