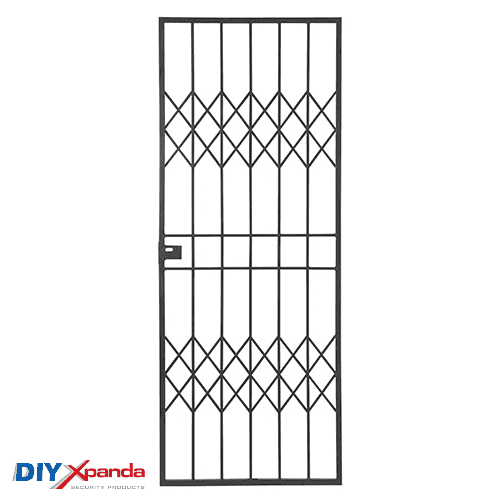

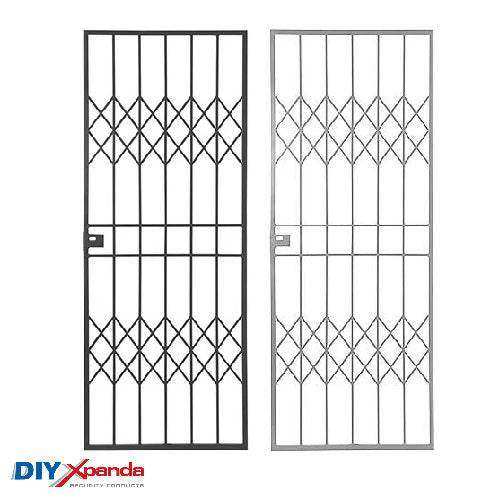

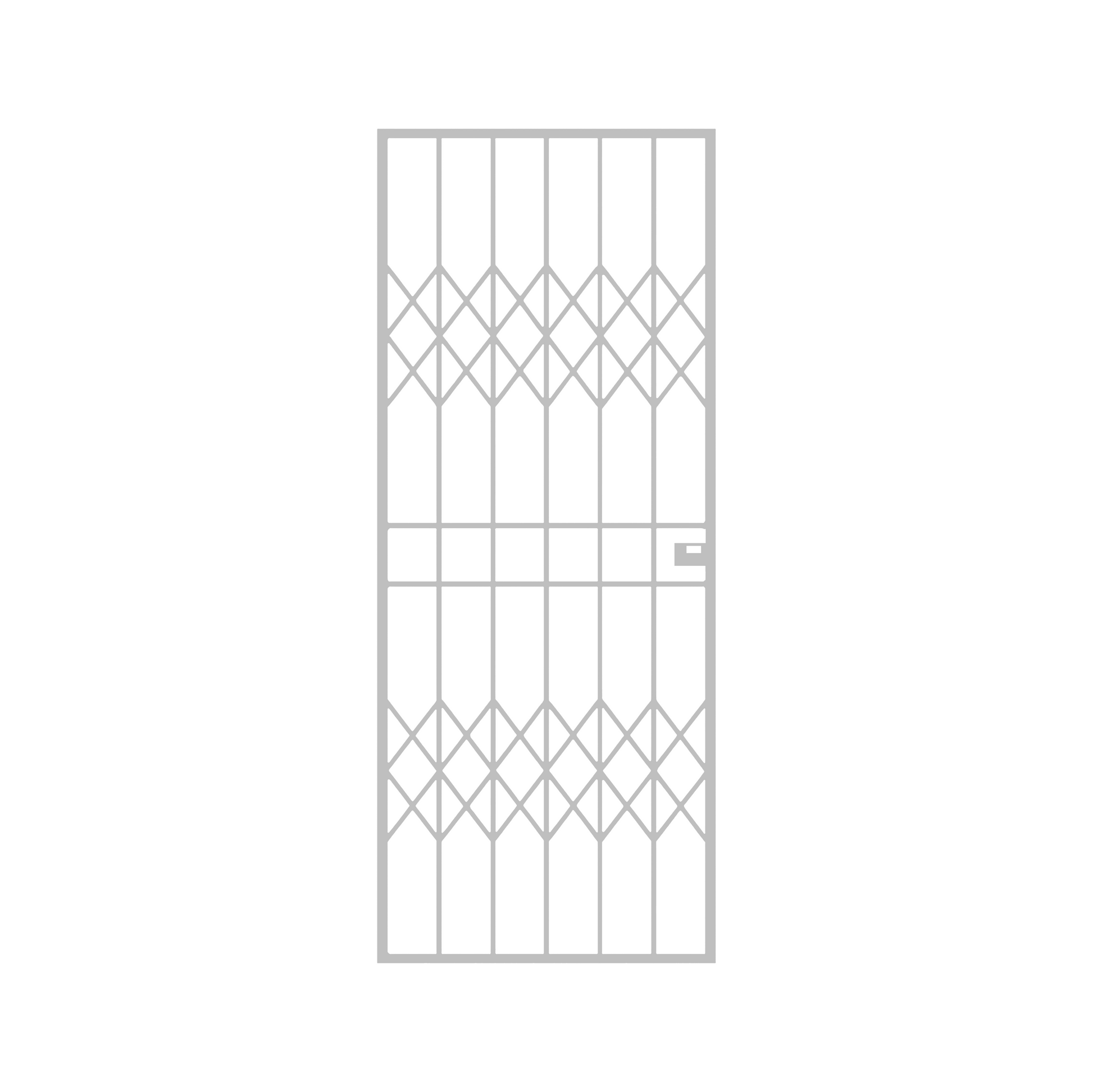

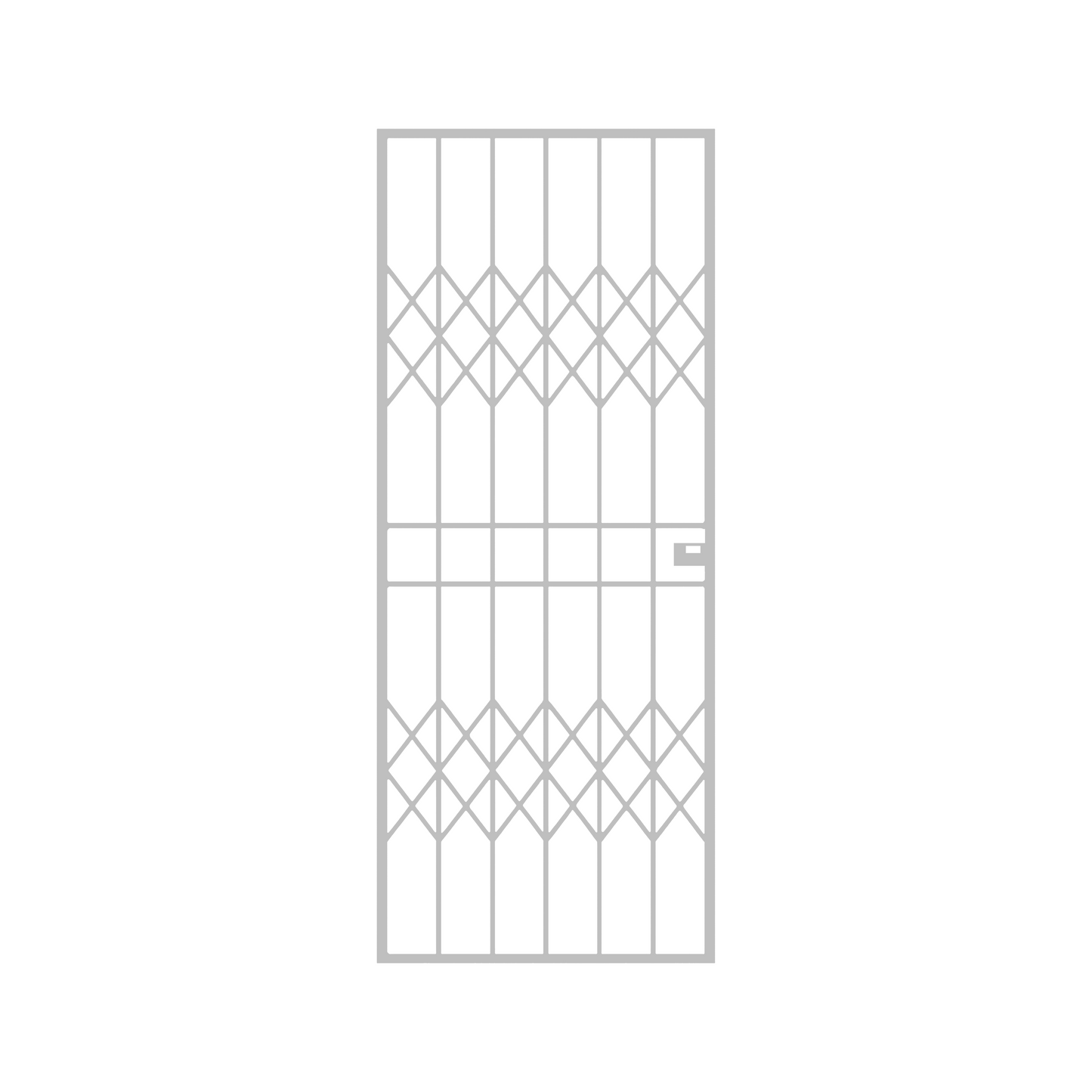

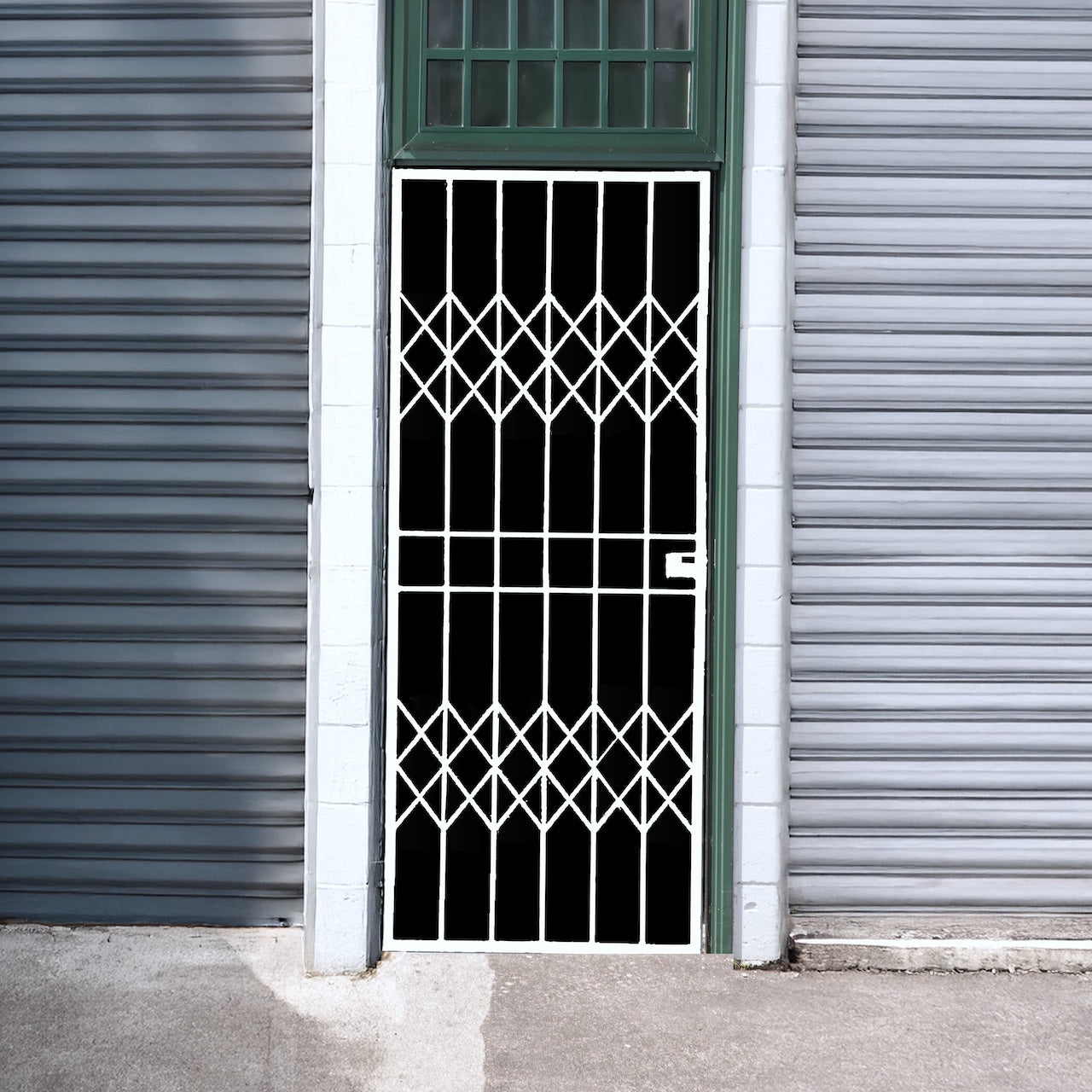

The Trellis Metal Security Gate provides security with a decorative touch. Its patterned steel design, paired with an L302 lock, makes it a strong yet stylish option for securing smaller entrances.
*For larger or higher-risk sites, Xpanda recommends our custom welded security gates for maximum strength.
Top Features
- Width: 770mm | Height: 1950mm
- Mild steel, zinc plated + epoxy coated
- Type: Fixed swing gate
- Lock type: L302

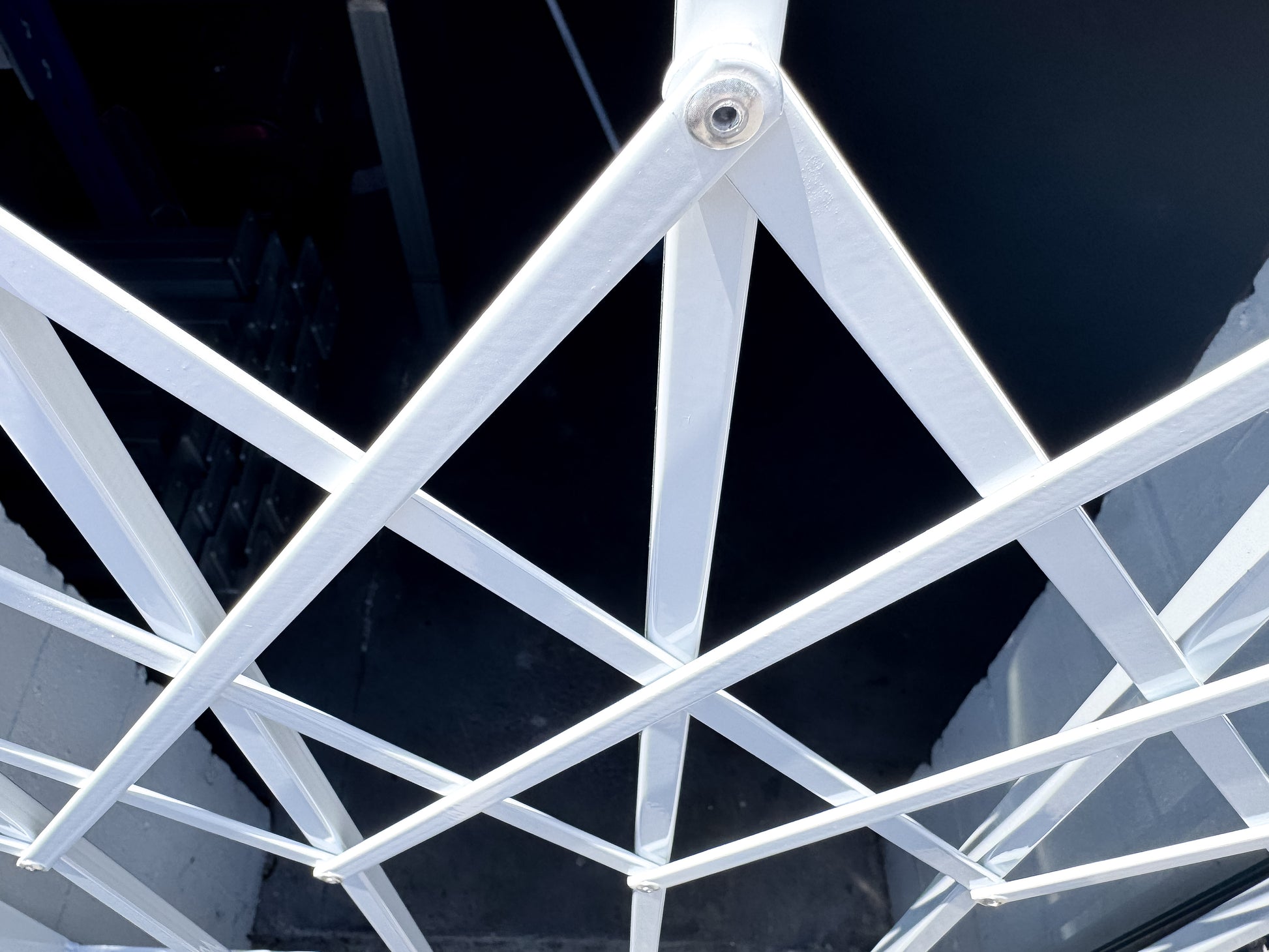

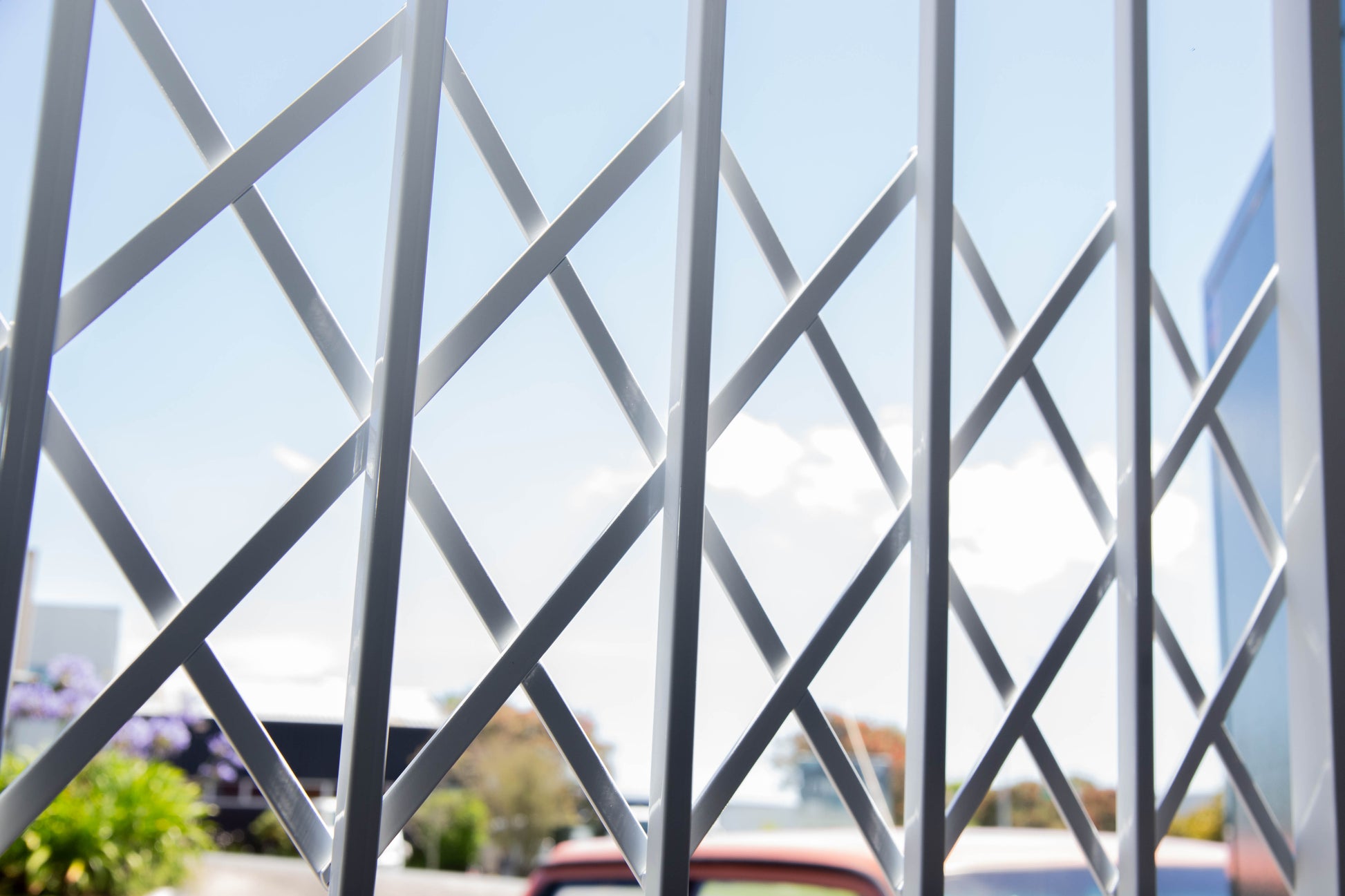

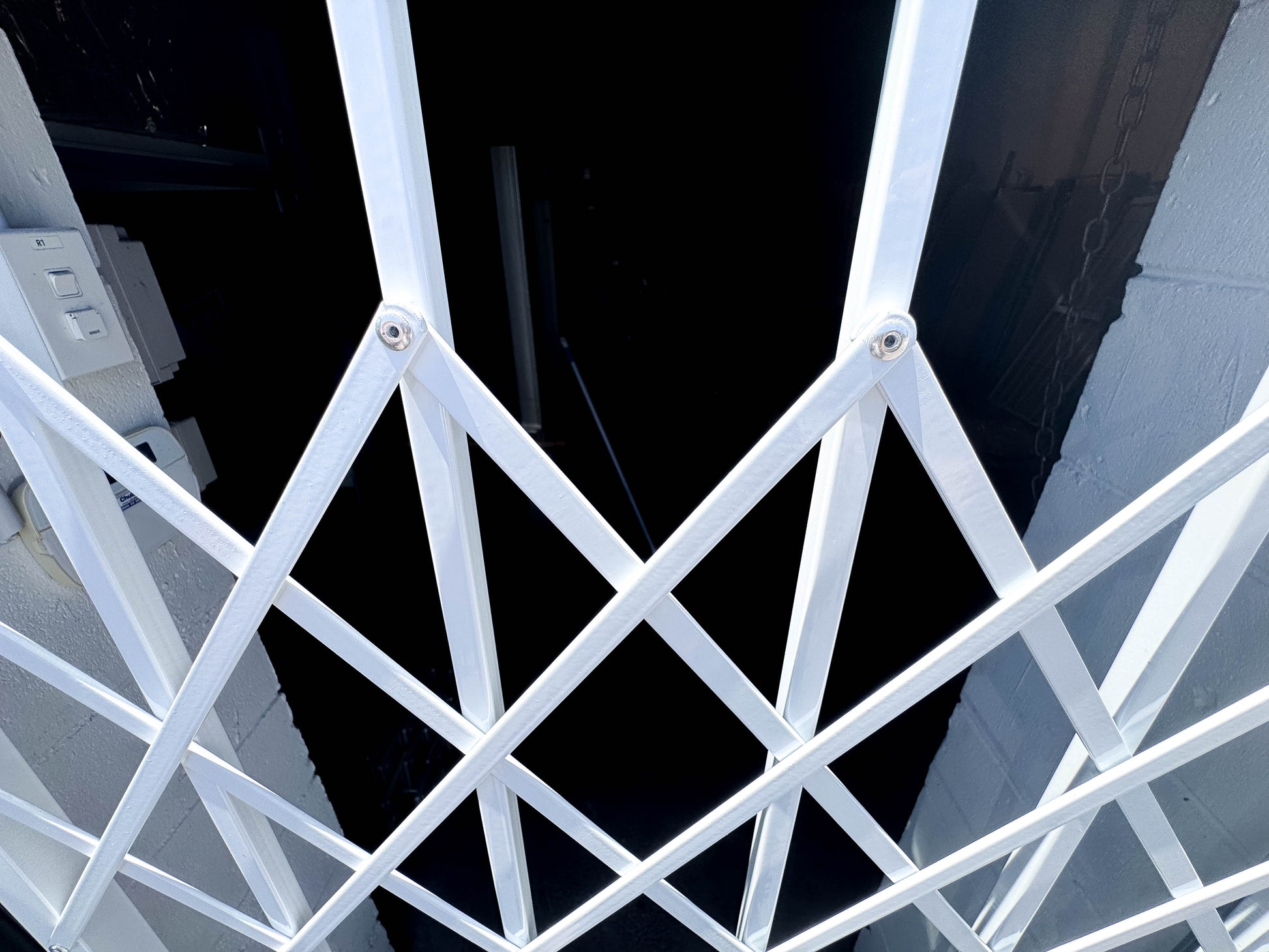

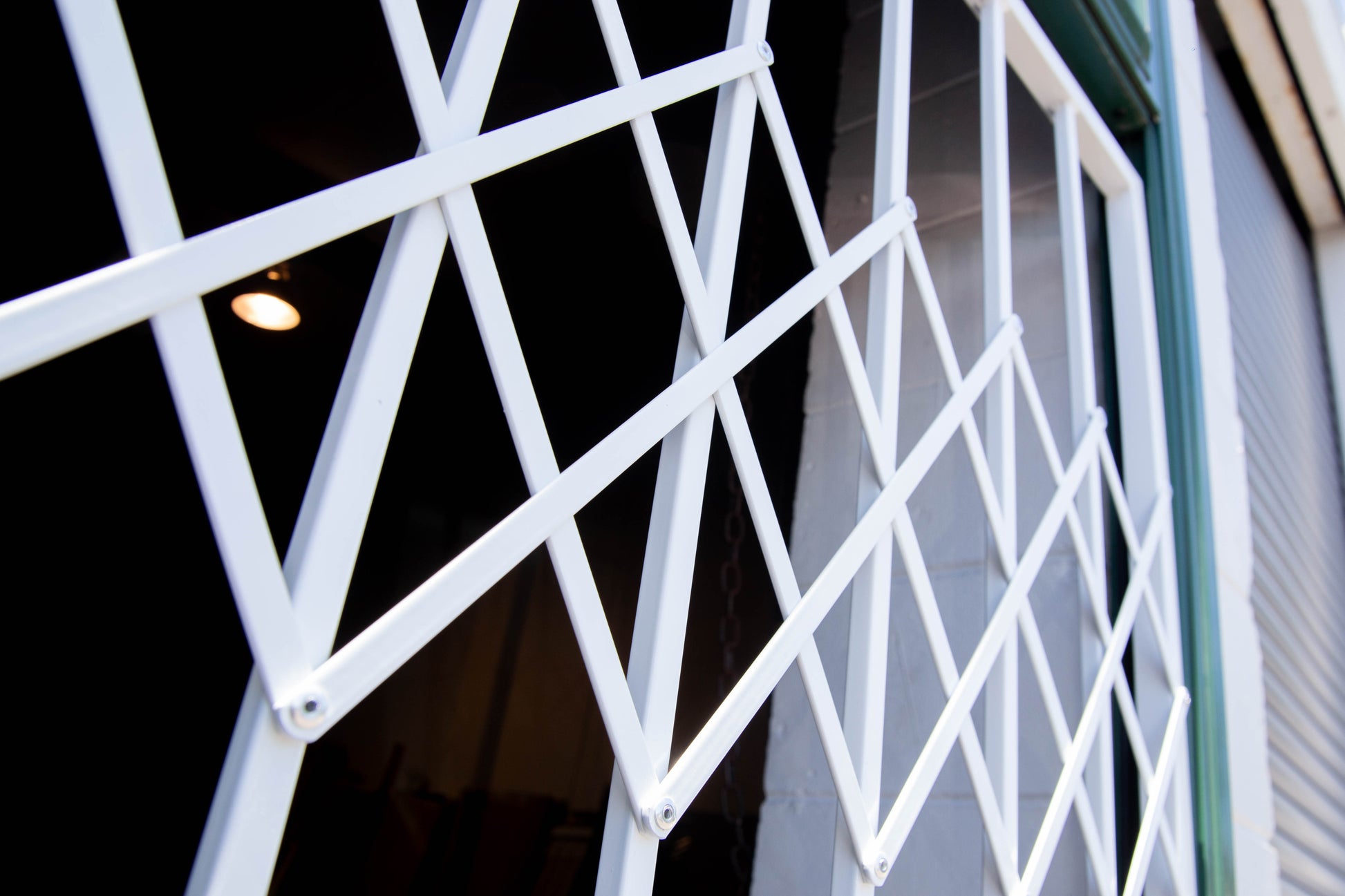

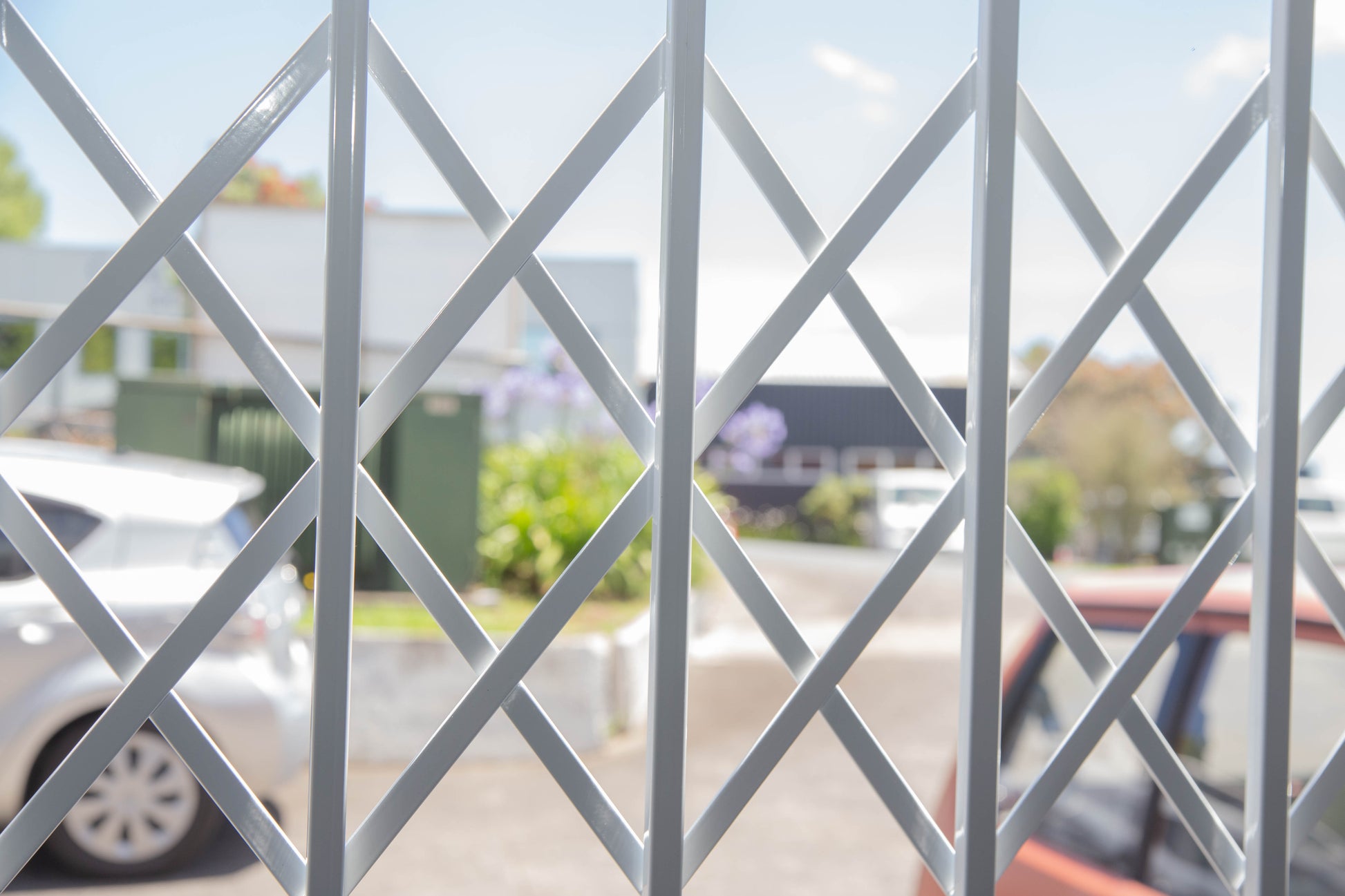

- Decorative trellis design
Key Strengths
- Decorative Security:
Combines a trellis-style design with reliable steel strength. - Enhanced Locking:
Supplied with an L302 lock for improved access control. - Durable Coating:
Zinc plated + epoxy finish resists corrosion. - Low Maintenance:
Fixed swing format with no moving tracks or wheels.
Applications

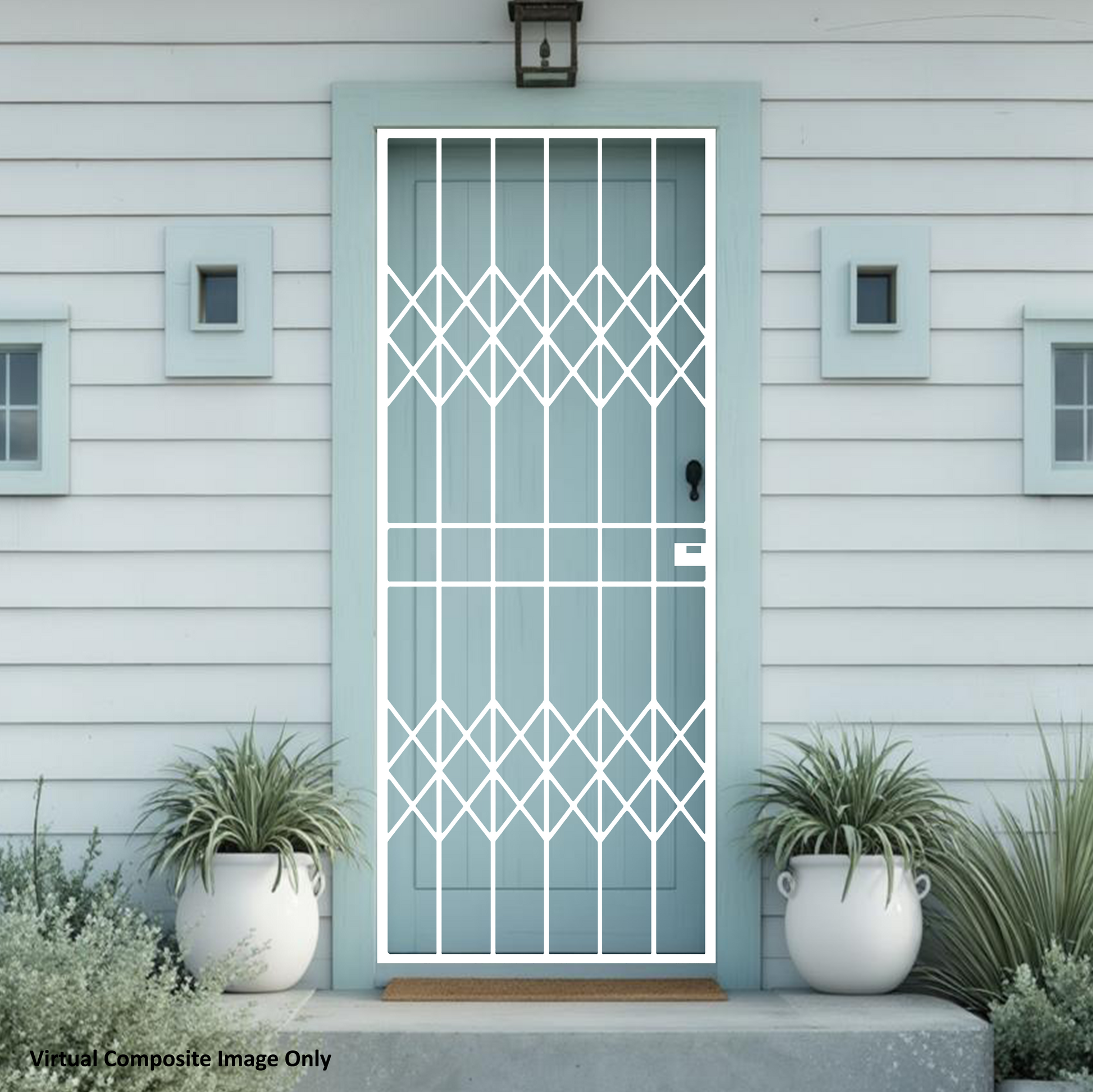

- Homes (front and side entrances)
- Apartments
- Light commercial properties
What’s Included
- Trellis gate panel (steel, coated finish)

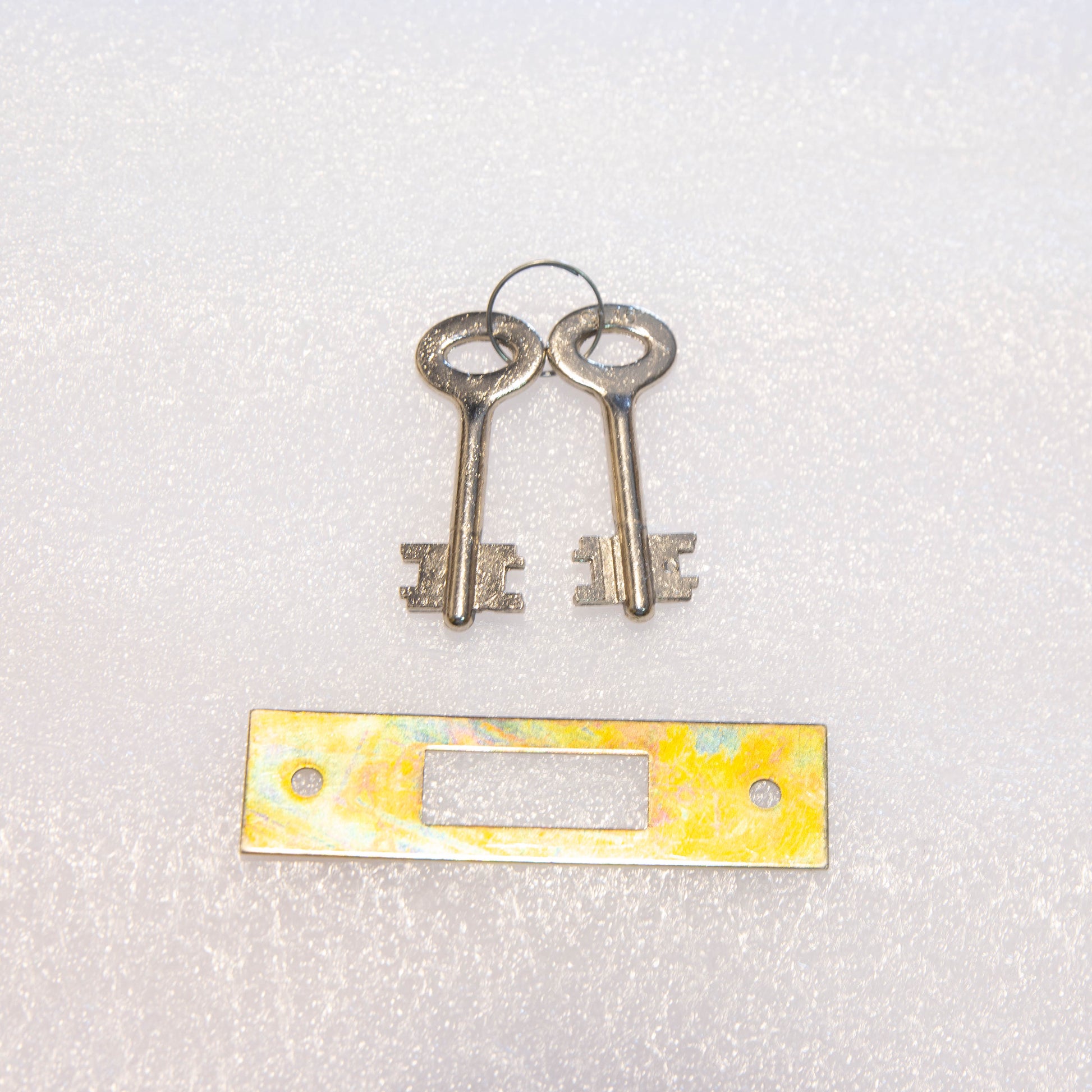

- L302 Lock (Lockable from both sides)
- V Hinges
- Lock Protection Plate
- Lock Keep
- Fixings
- Instruction guide

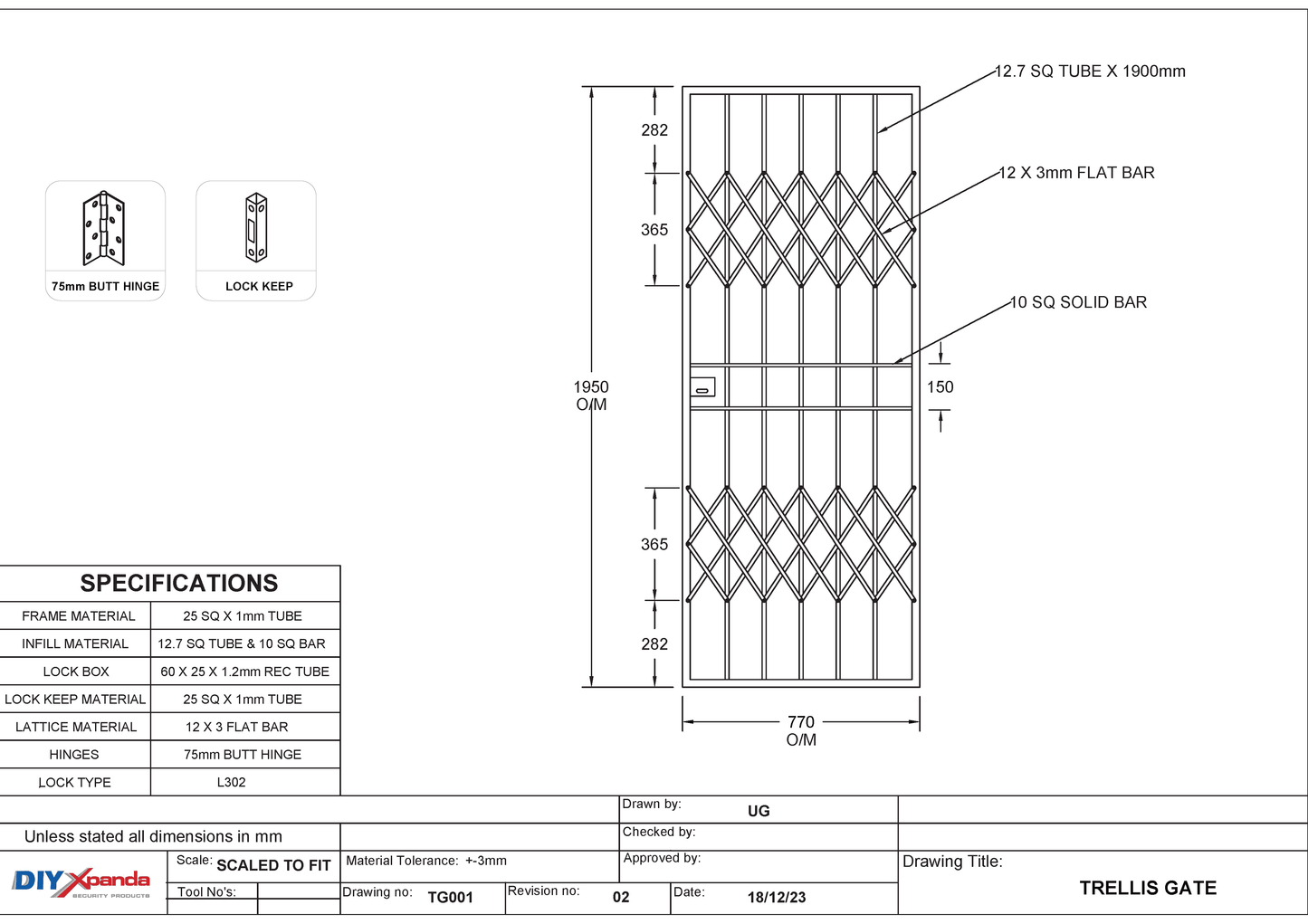

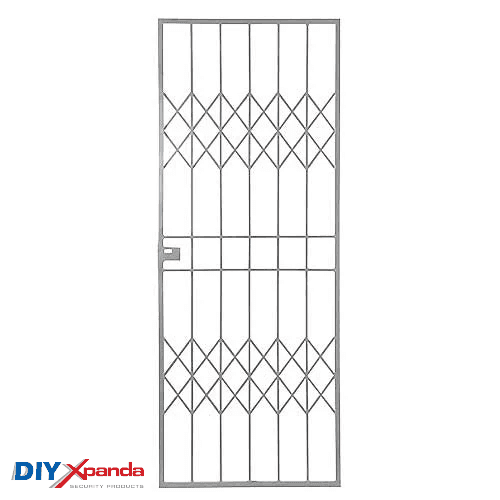

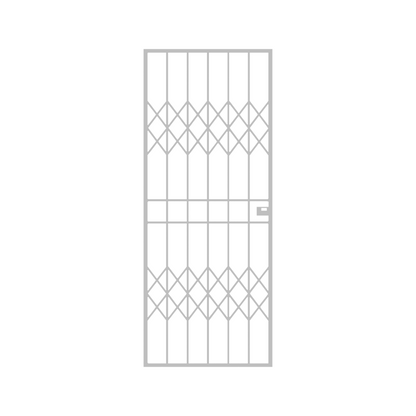

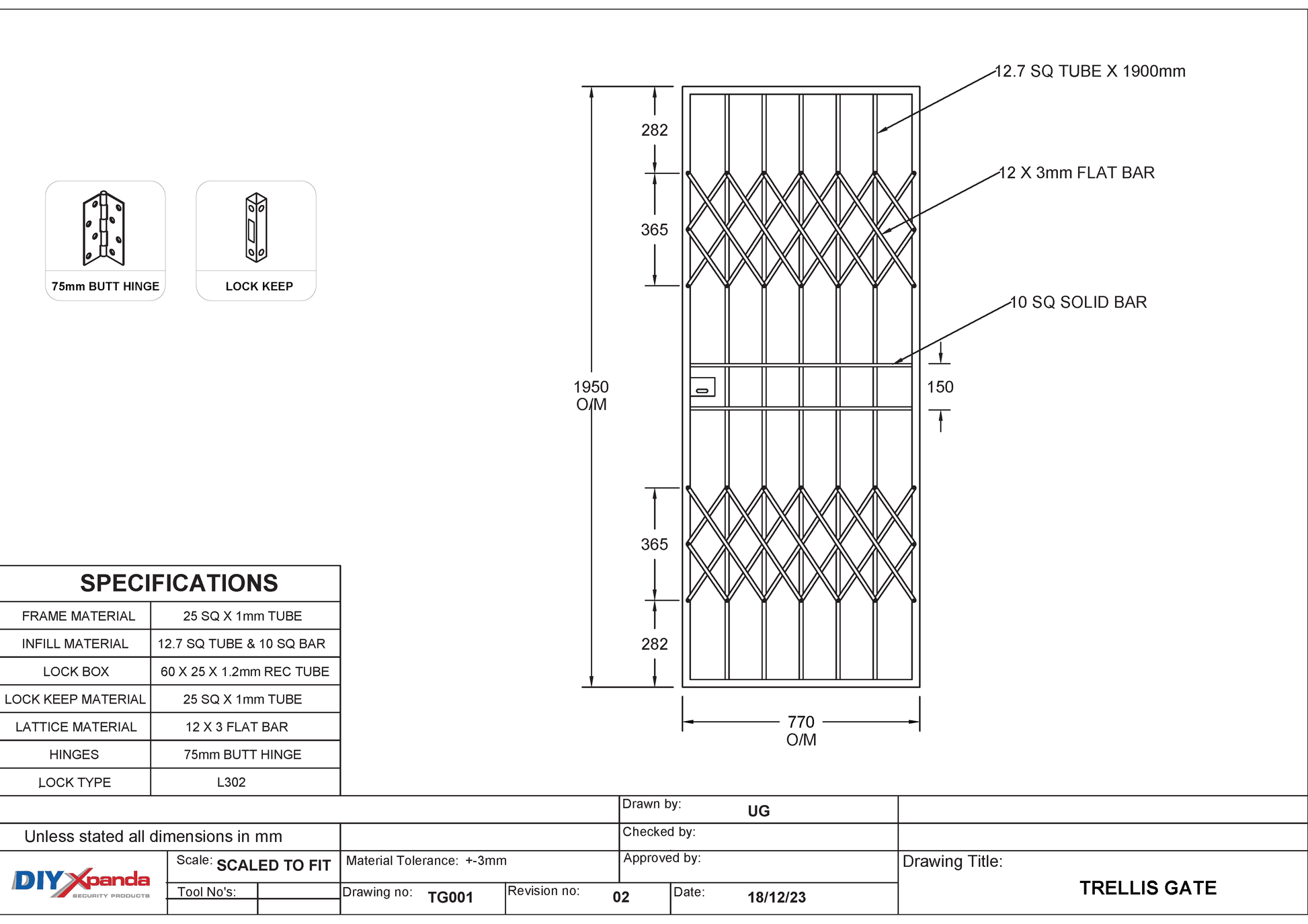

Trellis gate panel (steel, coated finish)
- Panel Height: 1950mm
- Panel Width: 770mm
- Panel Thickness: 25mm
L302 Lock (Lockable from both sides)

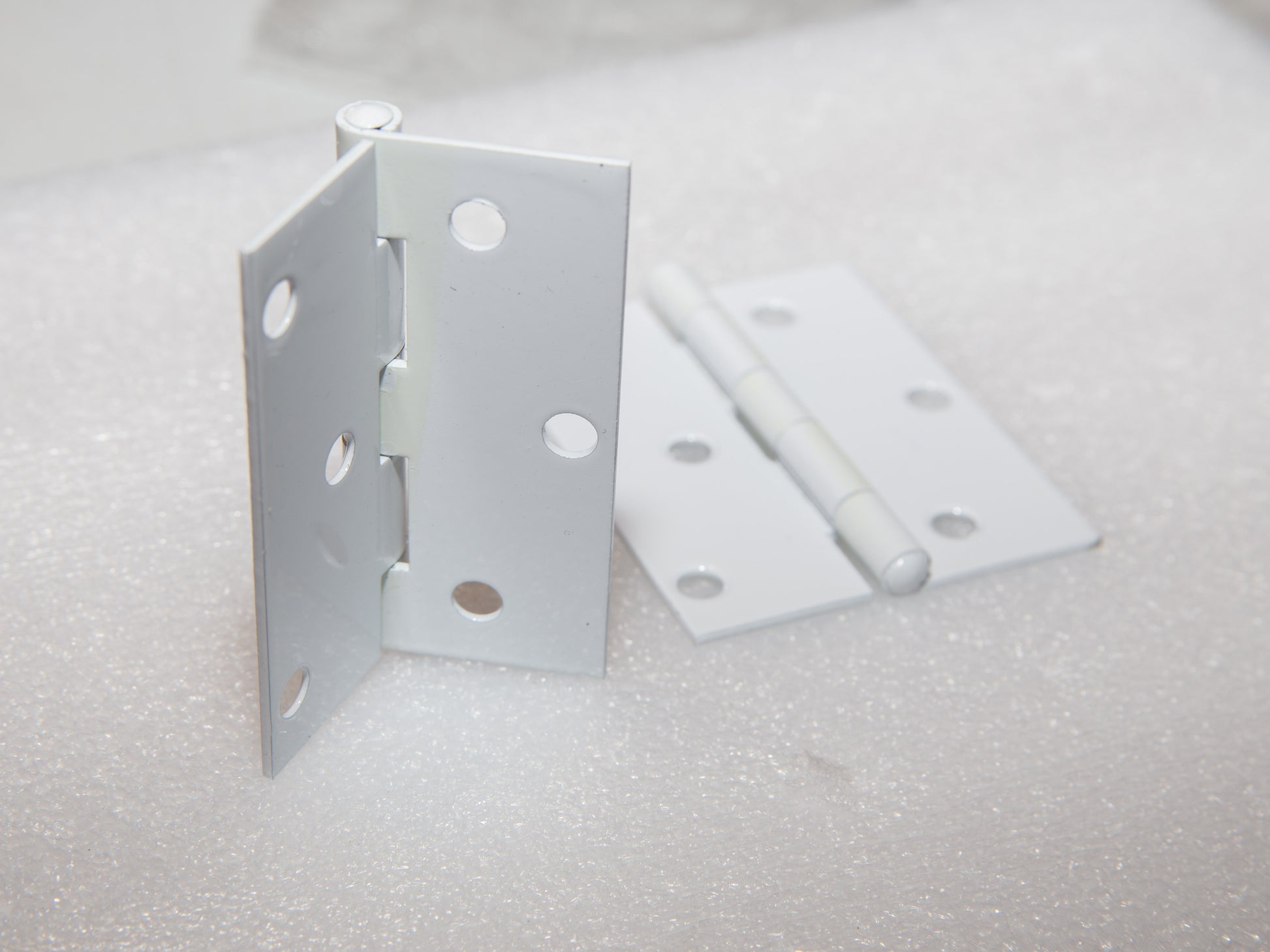

V-Hinges
- Hinge Width: 60mm
- Hinge Height: 75mm
- Hinge Thickness: 1mm

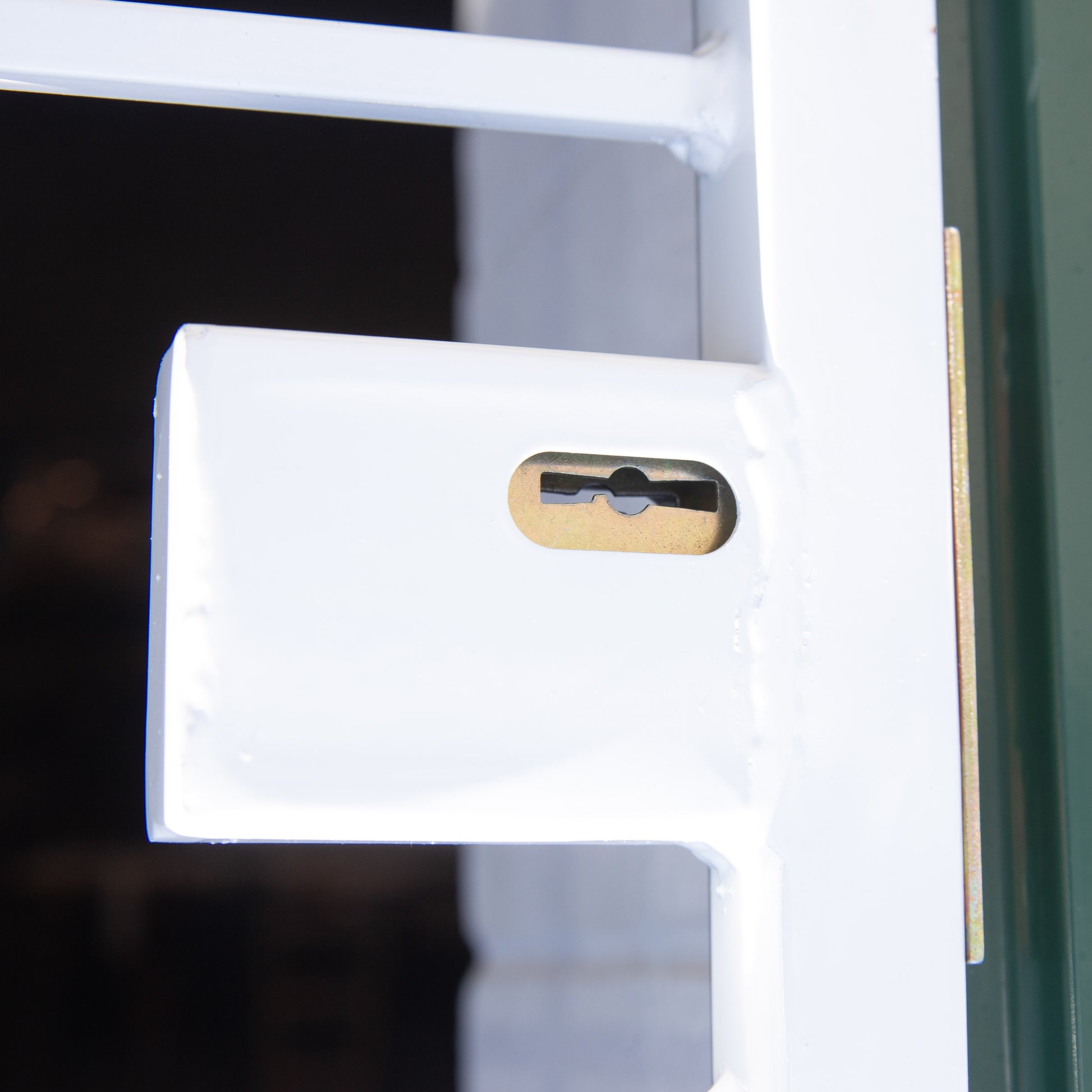

Lock Protection Plate
- Lock Protection Plate Width: 165mm
- Lock Protection Plate Height: 50mm
- Lock Protection Plate Depth: 25mm
- Lock Protection Plate Thickness: 1mm

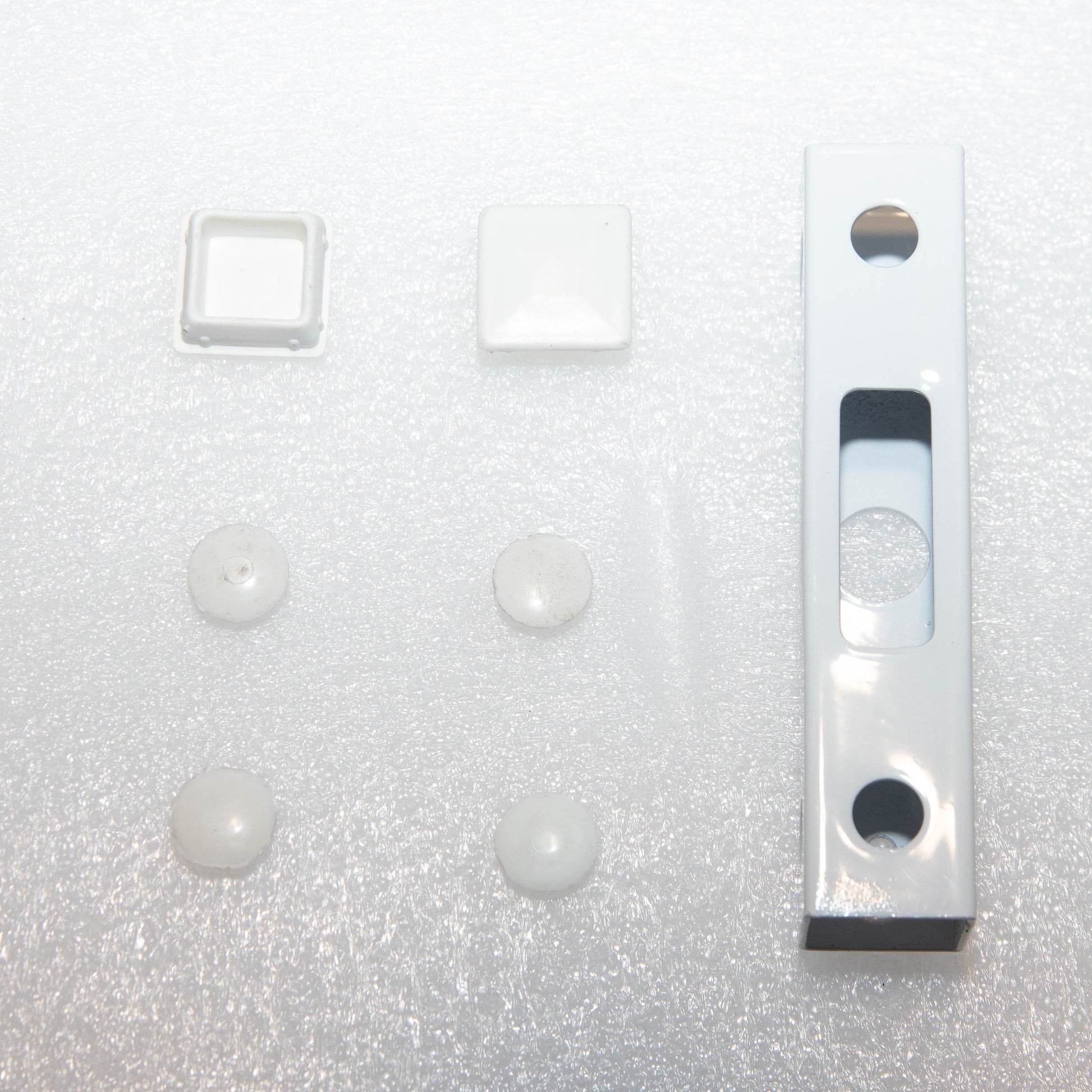

Lock Keep
- Lock Keep Width: 25mm
- Lock Keep Height: 130mm
- Lock Keep Depth: 25mm
Fixings
Instruction guide
Please click here to download the pdf version.

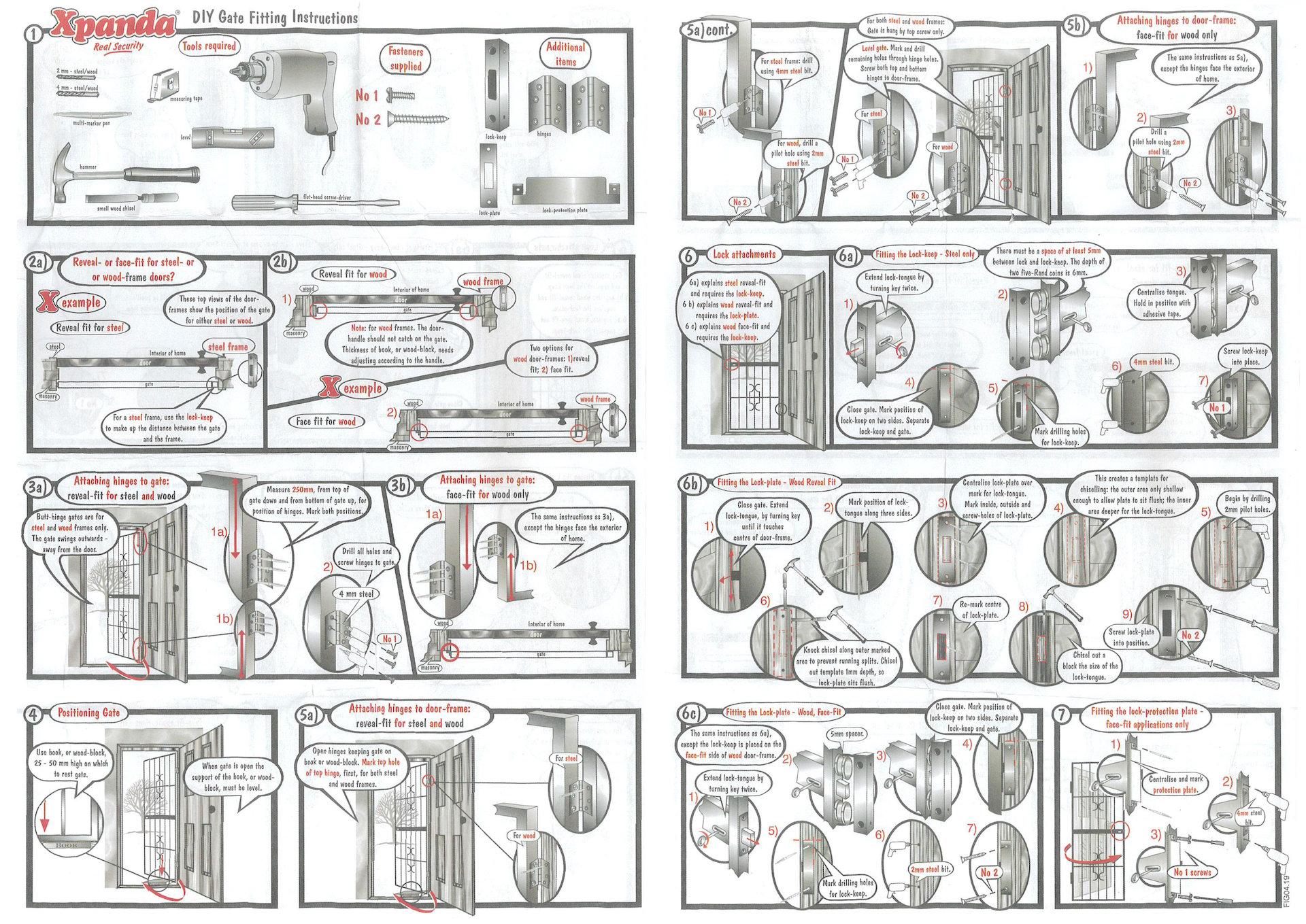

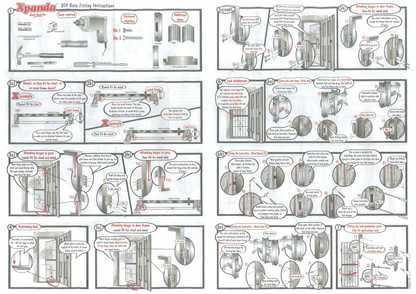

Installation Guide
Click here to download the installation guide!
