Many homeowners want stronger security but face challenges like:

• Swing gates taking up too much room
• Large openings needing protection
• Frequent daily access requirements
• Wanting stronger security without permanently blocking spaces

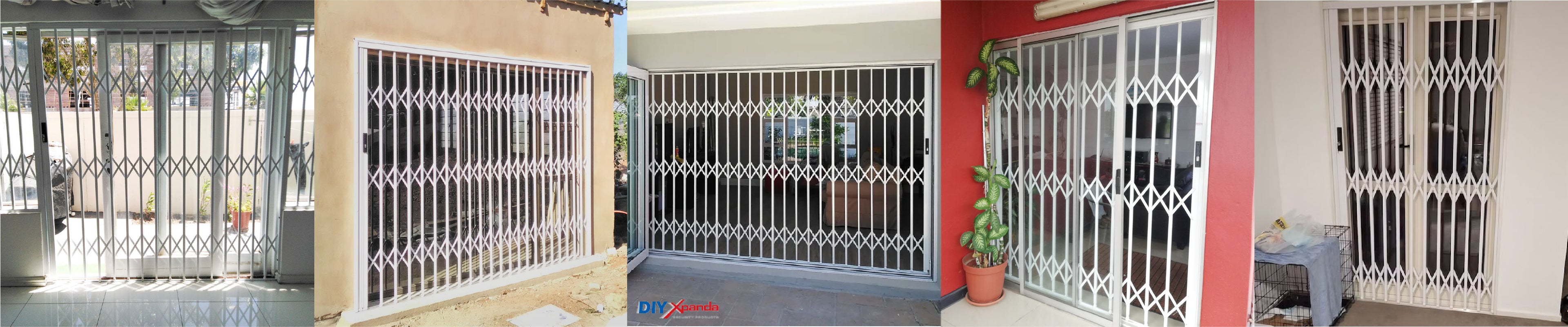

Retractable gates provide a practical solution by combining accessibility with physical protection.

DIY Xpanda retractable security gates are designed for:

• Daily use
• Residential properties
• Small business applications
• Long-term durability
• NZ environmental conditions

DIY Xpanda focuses on ready-made security products designed for fast shipping and straightforward installation.

• No fabrication delays.
• No complex quoting process.
• Ready to ship.
• Ready to install.
• Ready to protect.

Step 1: Measure the Installation Area

• Measure the width and height of the doorway or area where you’ll be installing the gate. Ensure there is enough clearance on both sides for the gate to fully retract.
• Mark the desired position on the wall where the top track of the gate will be installed.

Step 2: Position the Top Track

• Hold the top track at the marked position, ensuring it is level using a spirit level.
• Mark the screw holes on the wall where the track will be fastened.

Step 3: Drill the Holes

• Using your drill, create holes at the marked points on the wall. If necessary, insert wall plugs to ensure a strong hold.

Step 4: Attach the Top Track

• Secure the top track to the wall by screwing it into place. Ensure it is straight and properly aligned.

Step 5: Mount the Side Guides

• Place the gate in the open position, aligning it with the top track. Attach the side guide channel to the wall, making sure the gate retracts and extends smoothly.
• Mark the screw holes for the side guides and drill holes accordingly.
• Secure the side guides with screws, making sure they are tightly fixed.

Step 6: Install the Bottom Track

• If the gate includes a bottom track, position it along the floor where the gate will rest when closed.
• Mark and drill the necessary holes in the floor, then secure the bottom track with screws.

Step 7: Test the Gate

• Open and close the gate to ensure it retracts smoothly along the top and bottom tracks.
• Make any necessary adjustments to the alignment to ensure proper operation.

Step 8: Locking Mechanism Installation

• Install the locking mechanism as indicated in the gate’s manual. Attach the handle or lock on the gate at a convenient height.
• Secure the lock plate on the wall or floor to match the lock position of the gate.

Step 9: Final Adjustments

• Check all screws to ensure they are securely fastened.
• Make sure the gate opens and closes properly and locks securely.

Tools

Measuring tape📏
Pencil or marker✏️
Spirit level📐
Drill🪛
Screws and wall plugs🔩Spanner or wrench🔧
Screwdriver🪛
Hammer🔨
Protective gloves🧤

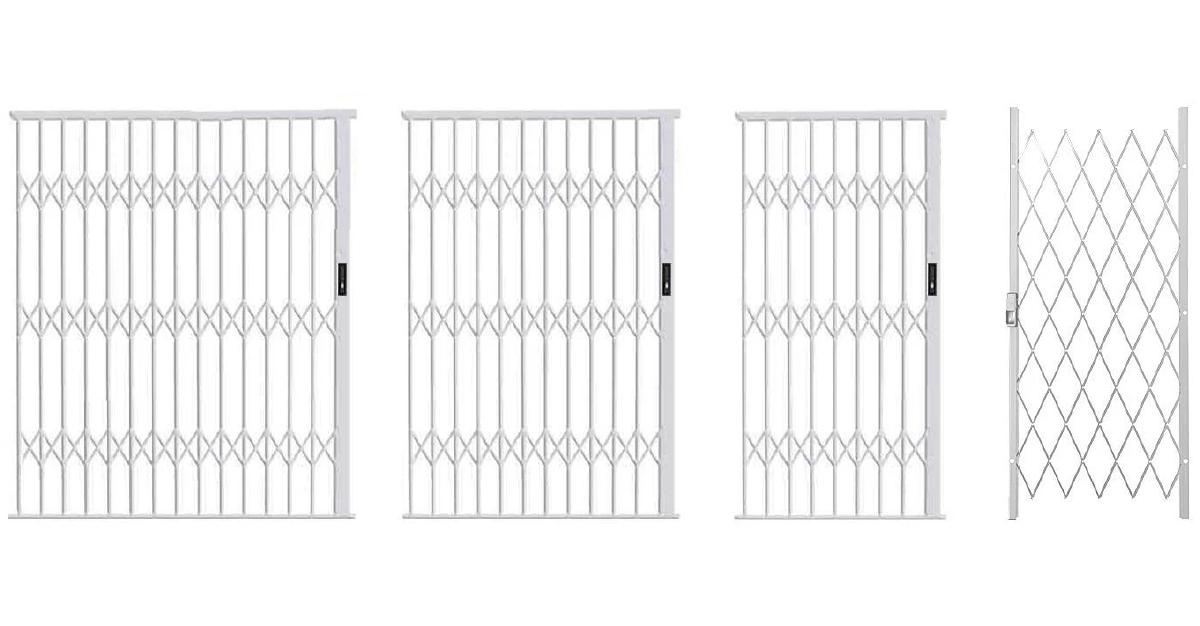

A scissor gate is another common name for a retractable or expandable security gate. The gate expands across an opening for protection and folds compactly away when open, making it practical for garages, shopfronts, warehouses, and larger access points.

Customers may also search for:

• Scissor gates
• Expandable security gates
• Folding security gates
• Accordion security gates
• Retractable security grilles
• Sliding security gates
• Trellis security gates
