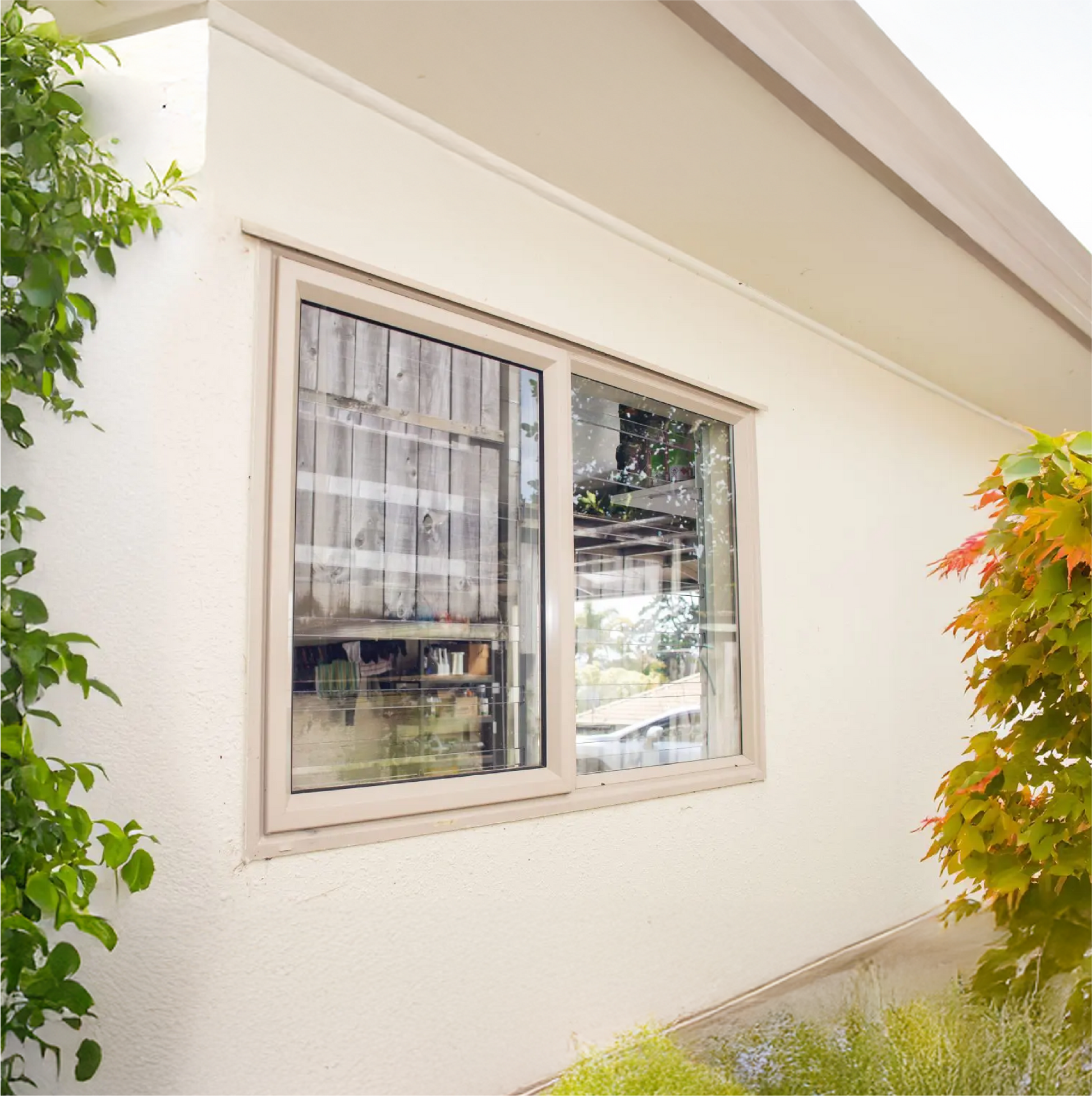

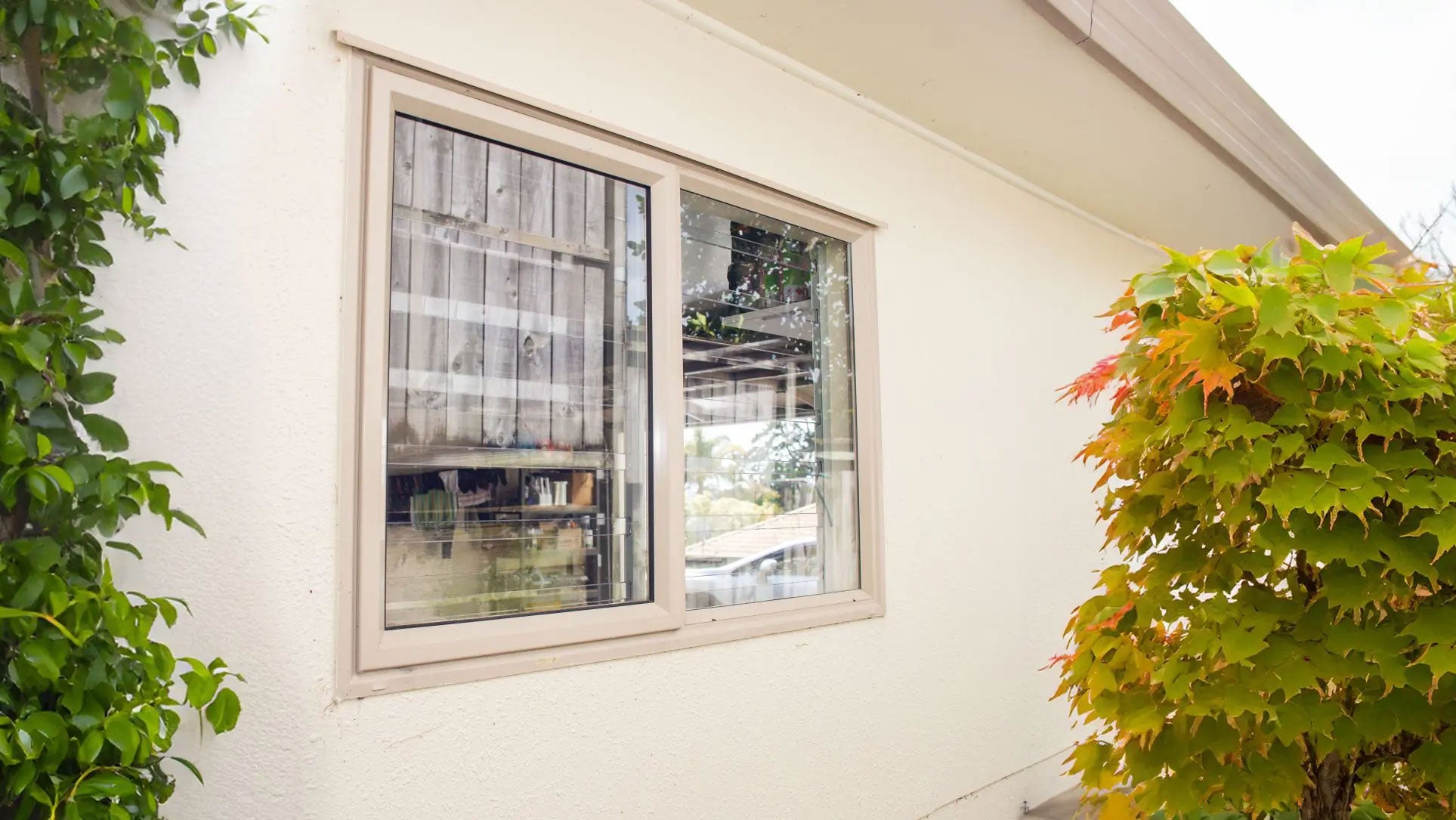

Clear-Guard Polycarbonate Security Bars

Clear-Guard is a high-security window protection system designed to deter intruders while maintaining the visual appeal of your property. By combining impact-resistant polycarbonate with a sleek aluminium frame, Clear-Guard offers a secure yet discreet alternative to traditional steel bars.

Providing strength, visibility, and natural light, it’s the ideal solution for customers who want both protection and aesthetics. For larger-scale or compliance-specific installations, Xpanda also offers fully engineered custom systems.

• Pitch (slat spacing): 105 mm
• Maximum size: up to 3 m (H) × 3 m (W)
• Maximum span of 600mm between supports
• Weather rating: Indoor use
• Fixing method: Sill fix
• Powder-Coat Finish – $150 flat fee per order (choose your colour, one charge no matter how many Clear Guard items you buy).

• High-strength 6 mm polycarbonate slats with aluminium frame
• Available in multiple size options (custom adjustments available)
• Maintains visibility and natural light
• Light Grey Powder-coat finish (extra costs apply for other colours)
• Aluminium 'uprights' (but can be horizontal or vertical orientation)

• Impact-Resistant Security:
  Virtually unbreakable 6 mm polycarbonate slats reinforced with an aluminium frame provide outstanding resistance against forced entry. Slats pass through intermediate uprights with no visible external fasteners, increasing tamper resistance.
• Modern, Low-Profile Design:
  Slim aluminium framing can be powder-coated in any Dulux colour to blend seamlessly with your property.
• Maximum Light, Clear Views:
  Unlike traditional steel bars, Clear-Guard allows up to 95% light transmission, maintaining natural light and outdoor visibility.
• Flexible Sizing:
  Standard and custom sizes available. Provide your measurements at order stage for tailored adjustments at minimal cost.

• Homes and apartments
• Offices and retail stores
• Warehouses and storerooms
• Schools and community facilities (consult us for compliance projects)

Polycarbonate slat(s), 6 mm thick × 30 mm wide

Vertical Brackets for Left and Right Sides(Additional support bracing if the coverage is wider than 600mm)

Bracket screws (for securing slats into the brackets)

Mounts

Fixing Caps

Note: Fixings to attach the bracket (frame) to the building are not included

Recommended Fixings

Wood Fixing:
Use 8-gauge screws (28–40mm, or up to 100mm for deep penetration through multiple wall layers). Screws pass through the 10mm access hole and fasten into the 5mm fixing hole.

Concrete Fixing:
Drill a 5mm hole into the concrete, insert a wall plug, then use 8-gauge screws.

For applications that need extra strength, use a 10-gauge hex head screw.

The holes should be drilled 16 mm / 7 mm into the material.

1. Prepare Tools & Materials
   - Battery drill
   - 5mm drill bit
   - Hand or battery riveter
   - Screws (for wood or concrete, depending on your wall/frame).
2. Install the First Side Frame
   - Position the side piece with large holes facing inside, small holes against the frame.
   - Fix it with screws
   - Make sure rivet points are accessible.
3. Install the Opposite Side Frame
   - Line it up parallel with the first side.

4. Fit the Middle Support (if needed)
   - Insert the support with brackets, top and bottom to take up space.

5. Insert the Slats
   - Peel protective film at the ends before installing.
   - Slide each slat into one side, then clip/plug into the opposite side.
   - Peel the remaining film after installation.
6. Finish Off
   - Plug screw holes.
   - Wipe off dust and static for a clear finish.
