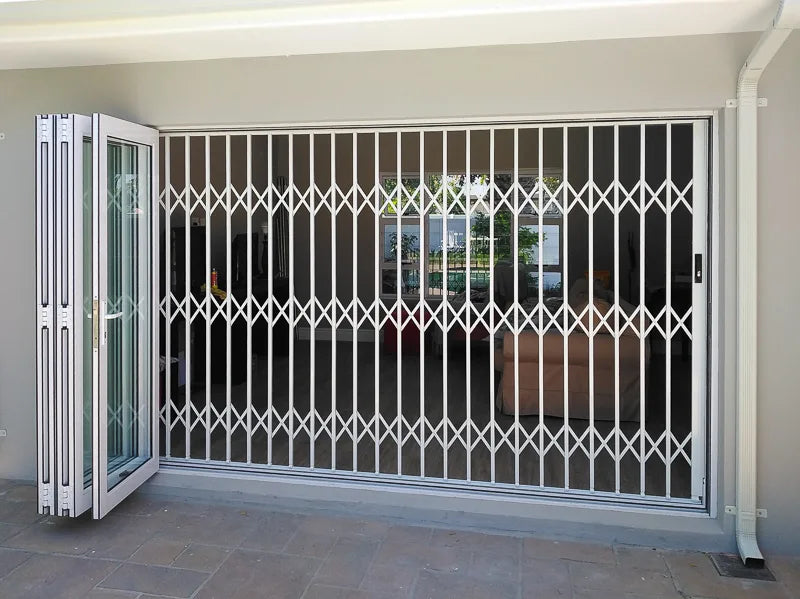

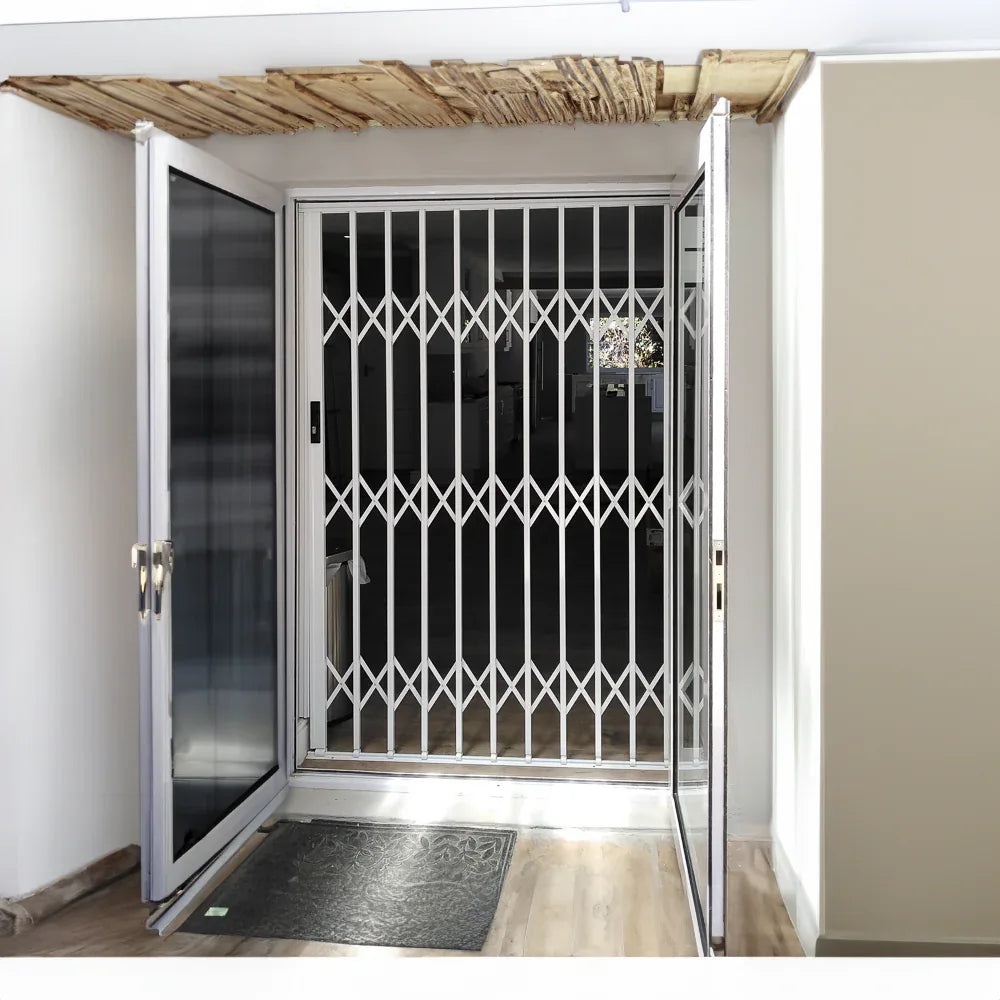

Retractable Gates
Best for wide openings and commercial use.

• folds away neatly
• ideal for shopfronts and garages
• adjustable width
• space efficient

Fixed Swing Gates
Best for standard doors.

• simple and strong
• ideal for homes and offices
• everyday entry points

Many customers need to secure large or open areas, but struggle with:

• swing gates blocking access
• limited space
• needing frequent opening/closing
• wanting security without permanent obstruction

Retractable gates solve this by providing a collapsible, lockable barrier that disappears when not in use.

DIY Xpanda retractable gates are designed for:

• regular daily use
• residential and commercial environments
• NZ weather conditions
• long-term durability

No custom fabrication delays.

DIY Xpanda retractable gates are ready to ship and easy to install, making them a practical choice for fast security upgrades.

For custom-built solutions or large-scale projects, Xpanda Security can assist.

Step 1: Measure the Installation Area

• Measure the width and height of the doorway or area where you’ll be installing the gate. Ensure there is enough clearance on both sides for the gate to fully retract.
• Mark the desired position on the wall where the top track of the gate will be installed.

Step 2: Position the Top Track

• Hold the top track at the marked position, ensuring it is level using a spirit level.
• Mark the screw holes on the wall where the track will be fastened.

Step 3: Drill the Holes

• Using your drill, create holes at the marked points on the wall. If necessary, insert wall plugs to ensure a strong hold.

Step 4: Attach the Top Track

• Secure the top track to the wall by screwing it into place. Ensure it is straight and properly aligned.

Step 5: Mount the Side Guides

• Place the gate in the open position, aligning it with the top track. Attach the side guide channel to the wall, making sure the gate retracts and extends smoothly.
• Mark the screw holes for the side guides and drill holes accordingly.
• Secure the side guides with screws, making sure they are tightly fixed.

Step 6: Install the Bottom Track

• If the gate includes a bottom track, position it along the floor where the gate will rest when closed.
• Mark and drill the necessary holes in the floor, then secure the bottom track with screws.

Step 7: Test the Gate

• Open and close the gate to ensure it retracts smoothly along the top and bottom tracks.
• Make any necessary adjustments to the alignment to ensure proper operation.

Step 8: Locking Mechanism Installation

• Install the locking mechanism as indicated in the gate’s manual. Attach the handle or lock on the gate at a convenient height.
• Secure the lock plate on the wall or floor to match the lock position of the gate.

Step 9: Final Adjustments

• Check all screws to ensure they are securely fastened.
• Make sure the gate opens and closes properly and locks securely.

Tools

Measuring tape📏
Pencil or marker✏️
Spirit level📐
Drill🪛
Screws and wall plugs🔩Spanner or wrench🔧
Screwdriver🪛
Hammer🔨
Protective gloves🧤

These retractable gates might be also known as:

• Accordion gates
• Anti theft gates & doors
• Collapsible fence gate
• Expandable driveway gate
• Expandable security grilles
• Expanding security gates
• Expandable gates
• Expandable security doors
• Expanding gate
• Extending safety gates
• Foldable gate
• Foldable safety gate
• Folding gates
• Folding security gates
• Manual folding gate
• Manual folding gates & doors
• Retractable & adjustable gates
• Retractable driveway gate
• Retractable safety gate
• Retractable security door
• Retractable security gates
• Roller security doors
• Rolling security gates
• Safety sliding gate
• Security doors
• Security gates
• Scissor gate
• Scissor safety gate
• Scissor security gates
• Security fence gate
• Sliding security gates
• Trellis doors

Protect your family & business with the Retractable Gates.
