Which window bars are right for me?

How to choose the best window bars.

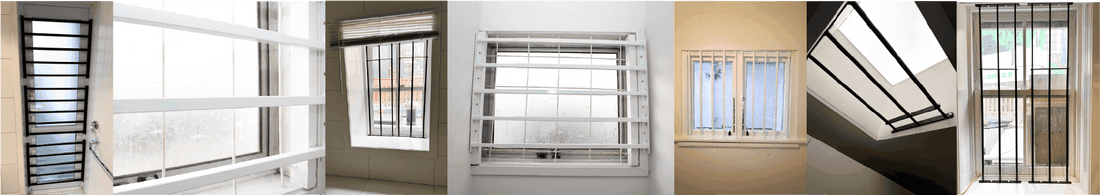

 DIY Xpanda's window bars installed by our customers.

How can we choose the best window bars?

Well, the sizing matters!

Choices of vegetables and window bars

Needless to say, you want to cover your window as much as you need with the window bars, aka expandable window security bars. While we have various size options that can extend with great flexibility, here are some simple tips on how to choose the best window bars for you.

In this blog, we will explore:

  1. How to Choose the Best Window Bars
    - Measure Inside Your Window Frame
    - Vertical, Horizontal, or Parallel Installation
    - Preparing for Installation
  2. Expandable Window Bars Product Range
    - Types A, B, C, D, and E Specifications
  3. More Options
    - Custom-Designed Window Bars
    - Extra Tools: Window Bars Recommendation Tool (Beta)



1. Measure Inside Your Window Frame:

This is the most important part.

Measure both the width and height inside your window frame. Measure it from inside the building.

How to measure your window to install window bars



It is very important to choose a window bar that can cover your window thoroughly without being fully extended, as window bars show their maximum strength when less extended.

Window Bars Fixed Width (mm) Expandable Height (mm) Bar Feature Distance Between Bars (mm) Price (NZD)
Type A 340 485-900 3 Round Bars 120 91
Type B 340 900-1650 3 Round Bars 120 132
Type C 300 630-1100 3 Square Bars 100 110
Type D 420 630-1100 4 Square Bars 100 167
Type E 540 630-1100 5 Square Bars 100 180



2. Vertical, Horizontal, or Parallel:

Depending on the measurement, you can install the window bars horizontally or vertically.
For example, if you have a window that is 1030mm high and 1110mm wide, we have the Expandable Window Bars B, which extends from 900mm to 1650mm with a fixed width of 340mm.

You can install these window bars in various ways depending on the coverage you want and the look you are after.

Horizontal

Window Bar type D horizontal installation

Vertical

Window bar type 5 vertical installations

Multiple in Parallel

Window bar type D Multiple installation in Parallel  Window bar type B Vertical Multiple installation in Parallel



 3. Preparing for Installation:

Once you decide the size, the job is almost done. You can check the manual instructions here to see what tools and steps are needed.
Basic fixings and screw cover caps are included in our Window Bars.





4. More Options:

If you cannot find a suitable size, feel free to contact Xpanda Security for custom order. They design and install premium quality steel window bars that are specifically customised for your windows. You can get their assessment and quote for free.



Custom design and installation by Xpanda Security



Protecting windows is one of the most common concerns our customers have. While some may doubt their skills in enhancing window security, the majority of the solution involves basic common sense and the right tools. Window bars function as a physical security barrier and deter potential criminals by showing that you have invested in a layered security system. With our window bars and your existing window locks, you can easily improve your security level and gain peace of mind.

Extra Tool:
Window Bars
Recommendation Tool (beta)

Frame Measurement
(Inside Window / Door Frame)




Best Fit Option

Click "Check Options" to view recommended window bar types and quantities for maximum coverage.

Best Value Option

Click "Check Options" to see one unit with the best price that would fit into your window.
